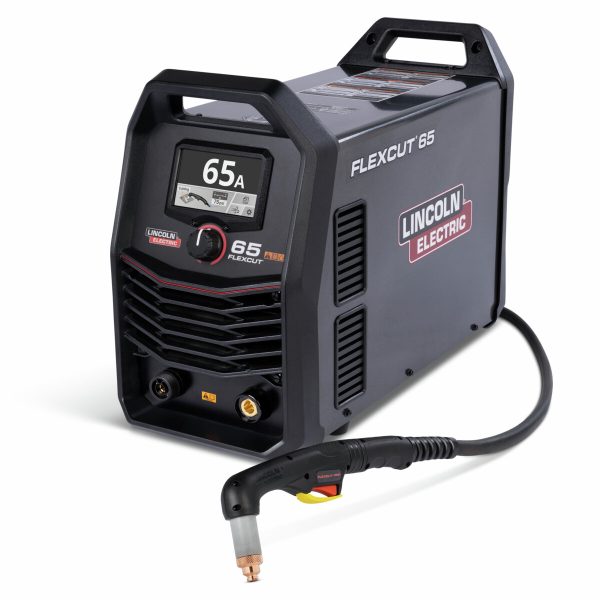

Lincoln FlexCut 65 Handheld Plasma System

$5,322.67/EA $4,241.60/1 Per Ea only $4,241.60/EASave 20%

In stock

OVERVIEW

Cut Faster and Longer with the FlexCut 65

Upgrade your metal cutting capabilities with the Lincoln FlexCut 65 Plasma Cutter, a powerhouse machine designed to make your work easier and more profitable. If you are tired of constantly changing burnt-out tips and electrodes, the FlexCut 65 is the solution you have been waiting for. Thanks to Lincoln's advanced torch dynamics and airflow design, you can keep cutting for hours while other machines would require multiple consumable changes. This means you spend less time tinkering with your torch and more time finishing the job. The K5825-H Ready-Pak comes fully equipped with everything you need to start cutting right out of the box, including the comfortable LC65 hand torch with a 25-foot lead.

Performance is at the heart of the FlexCut 65. It delivers a rated output of 65 amps, giving you the power to cleanly cut 1-inch steel plate and sever up to 1-1/4 inches when necessary. The cut quality is exceptional, often leaving a smooth edge that requires little to no post-cut preparation. This is a huge time-saver for welders who need to fit up parts immediately after cutting. The machine is also surprisingly portable for its power class, weighing in at just 55 pounds. You can easily move it around your shop or load it onto a truck for field work. The "set and forget" air pressure regulator and simple control knob make setup a breeze, even for operators who are new to plasma cutting.

Beyond standard cutting, the FlexCut 65 is an excellent tool for gouging welds or removing old material. The arc stability is top-tier, providing consistent results whether you are working on thin sheet metal or heavy plate. The unit is generator-friendly, making it perfect for remote sites where grid power isn't available. With the Lincoln FlexCut 65, you aren't just buying a plasma cutter; you are investing in a tool that improves your workflow, reduces frustration, and delivers professional results every time you pull the trigger.

Why Welders Choose the FlexCut 65:

  • Less Downtime: Spend more time cutting and less time swapping consumables.
  • Clean Cuts: Minimal dross means less grinding and faster project completion.
  • Easy Setup: Plug it in, attach air, and start cutting in minutes.
Additional Information
Brand:Lincoln Electric
Weld Process:Plasma Cutting
Voltage:200-600 V
Amp Range:50-85 A
Length:25 ft
Input Voltage:208V, 230V, 460V, 575V
Air Requirements:87-110 PSI, 6.0 CFM
Duty Cycle:50%, 100%
Torch Included:LC65 Handheld Torch (25 ft)
Output Range:20-65 Amps
Weight:24.9 kg
Packaging Description:1 Per Ea

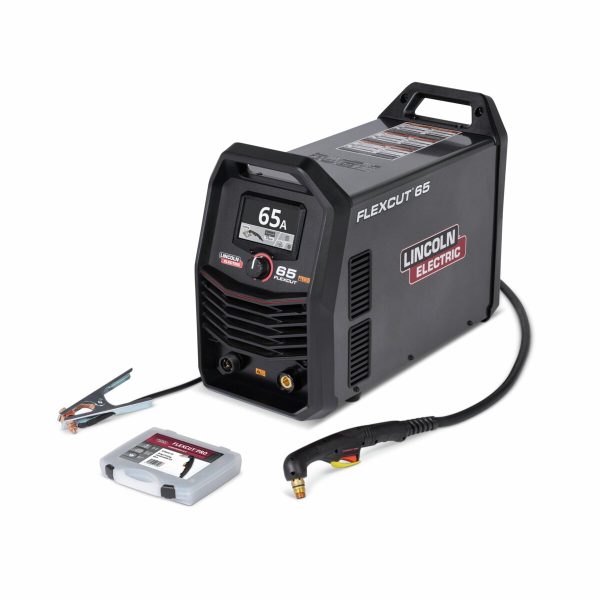

INCLUDED

  • FlexCut 65 Plasma Cutter Power Source
  • LC65 Handheld Plasma Torch (25 ft / 7.6 m)
  • Work Clamp and Cable (20 ft / 6.1 m)
  • Input Power Cord (10 ft / 3 m)
  • Air Regulator and Pressure Gauge
  • Consumable Kit (Electrodes, Nozzles, Shield Caps)
  • Operator Manual

APPLICATIONS

  • General Fabrication
  • Structural Steel Construction
  • Automotive Repair and Restoration
  • Heavy Equipment Maintenance
  • HVAC Ductwork Cutting
  • Shipbuilding and Marine Repair
  • Pipeline Construction
  • Rental Fleets

FAQ

The FlexCut 65 is rated for a recommended cut of 1 inch (25mm) on mild steel and a severance cut of up to 1-1/4 inches (32mm).

Yes, the FlexCut 65 requires a supply of clean, dry compressed air. It typically requires around 87-110 PSI at a flow rate of 6.0 CFM.

The machine features auto-line technology and can operate on single-phase or three-phase power from 208V to 575V (50/60Hz).

The FlexCut 65 uses the specific LC65 series consumables designed to maximize life and performance. They are not interchangeable with older Magnum Pro consumables.

Yes, the FlexCut 65 is generator friendly. It is recommended to use a generator with at least 10-12 kW output for full performance.

Yes, the K5825-H Ready-Pak includes the LC65 handheld plasma torch with a 25-foot cable.

Lincoln Electric typically offers a 3-year warranty on the power source and a 1-year warranty on the torch.

Yes, the FlexCut 65 is capable of plasma gouging applications with the appropriate consumables installed.
