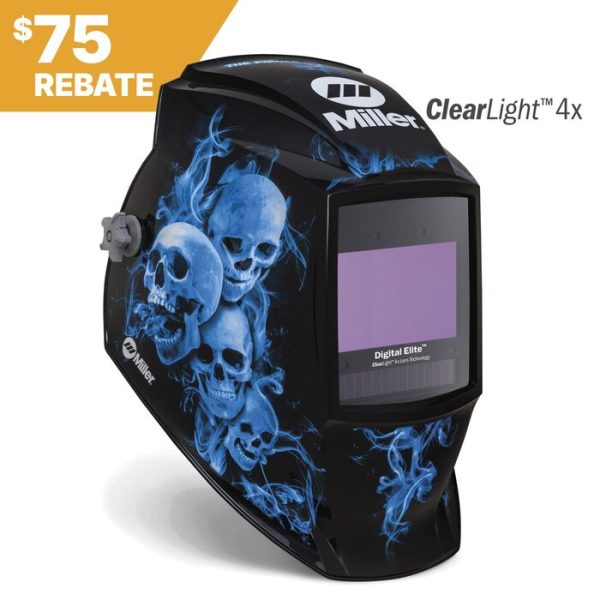

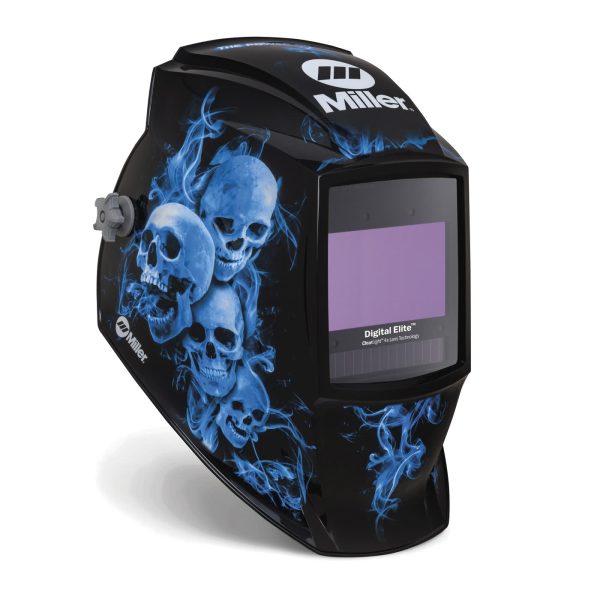

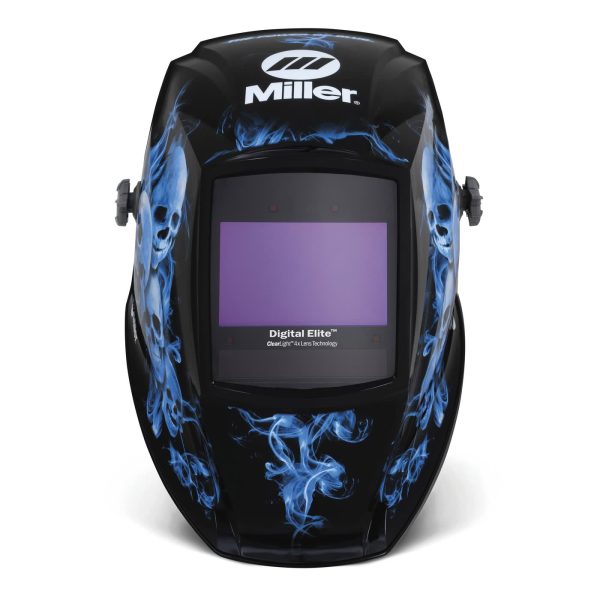

Miller Digital Elite Blue Rage II Auto-Darkening Helmet with ClearLight 4x

$970.35/ea $561.99/1 of each only $561.99/eaSave 42%

Usually ships within 3-5 business days

Save up to an additional $75.00 with a manufacture rebate until June 30, 2026.

OVERVIEW

See the Arc Like Never Before with Miller Digital Elite Blue Rage II

Step into a new era of welding clarity with the Miller Digital Elite Auto-Darkening Welding Helmet, featuring the striking Blue Rage II graphics. This isn't just a helmet; it's a productivity tool designed to help you weld better and longer. The star of the show is the ClearLight 4x Lens Technology. If you thought standard auto-darkening lenses were good, wait until you experience this. It provides high-definition optics that are up to four times clearer than the industry standard, removing the green tint often found in older helmets and letting you see the true colors of your weld puddle and heat-affected zone.

Versatility is key for the modern welder, and the Digital Elite delivers. Whether you are TIG welding in the shop, stick welding outdoors, or grinding down a finished piece, this helmet has a mode for you. The exclusive X-Mode is a game-changer for anyone working outside or in tight spots; it uses an electromagnetic field to sense the arc, so your lens won't flash you just because the sun is bright or your hand blocked a sensor. Plus, with the dedicated Grind button and Cut mode, you can keep your hood down and stay protected through the entire fabrication process.

Comfort hasn't been overlooked. Miller has equipped this helmet with their redesigned Legacy headgear, which offers unsurpassed stability and a comfort cushion that hugs your head without pressure points. At just 17.5 ounces, it's one of the lighter premium helmets on the market, saving your neck from strain at the end of a long shift. The digital controls are easy to use, even with gloves on, and the memory function lets you save your favorite settings so you can get to work faster. Backed by Miller's True Blue 4-Year Warranty, the Digital Elite Blue Rage II is an investment in your eyes and your craft.

Additional Information
Brand:Miller
Lense Type:ADF (Autoshade)
Grind Function:Yes
PAPR:No
Shade Range:5-13
Packaging Description:1 per each
Lens Technology:ClearLight 4x
Viewing Area:9.2 sq. in.
Operating Modes:Weld, Cut, Grind, X-Mode
Arc Sensors:4
Switching Speed:1/25,000 second
TIG Rating:5 Amps
Weight:17.5 oz (495 g)
Warranty:4 Years
Standards:ANSI Z87.1+, CSA
Grind Function?:YES

INCLUDED

  • Miller Digital Elite Welding Helmet (Blue Rage II)
  • Helmet bag
  • 2 inside cover lenses
  • 5 outside HDV cover lenses
  • User Manual

APPLICATIONS

  • MIG/MAG Welding: Excellent for all amperages with clear puddle visibility.
  • TIG Welding: Rated for low amperage TIG (down to 5 amps) with precision response.
  • Stick Welding: Robust protection for high-amperage SMAW applications.
  • Plasma Cutting: Dedicated Cut Mode (Shades 5-8) for optimal visibility.
  • Grinding: External grind mode (Shade 2.5) allows for clear visibility without lifting the hood.
  • Outdoor Welding: X-Mode eliminates sunlight interference.

FAQ

ClearLight 4x Lens Technology provides up to four times the optical clarity of standard 1/1/1/1 rated welding lenses. It allows more natural colors to pass through, reducing the green tint and providing a sharper, more realistic view of the weld puddle.

X-Mode uses electromagnetic sensors to detect the magnetic field of the welding arc rather than just the light. This allows the lens to darken even if the optical sensors are blocked by obstructions and prevents false triggering from sunlight when welding outdoors.

The Miller Digital Elite typically uses two CR2450 lithium batteries. It also has solar assist to extend battery life.

Yes, the Digital Elite features a Grind Mode with a light state of Shade 2.5, providing excellent visibility for grinding tasks without removing the helmet.

The viewing area is 9.2 square inches (59.48 sq. cm), providing a large field of view for the operator.

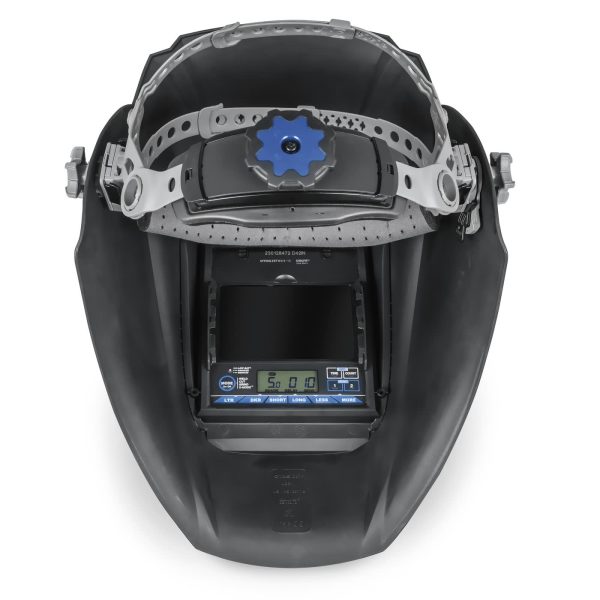

Yes, it includes Miller's Legacy headgear which features extensive adjustability and a comfort cushion for improved stability and fit.

The auto-darkening lens is backed by Miller's True Blue 4-Year Warranty.

Yes, the Digital Elite is TIG rated down to 5 amps, making it suitable for precision TIG applications.
