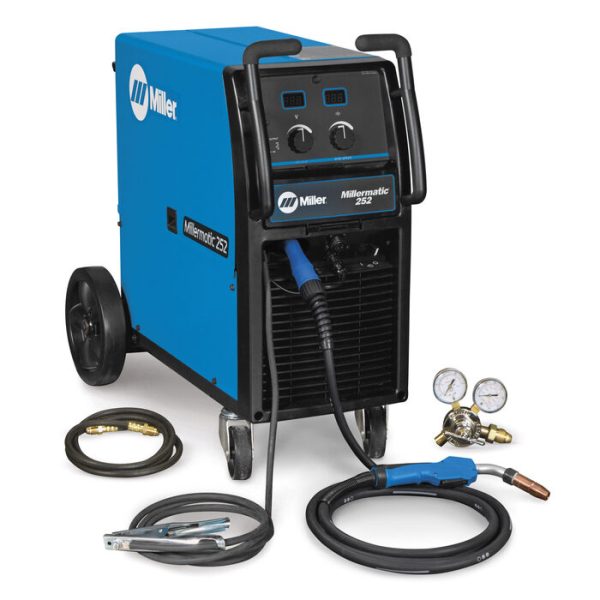

For professional welders who demand power and precision, the Miller Millermatic 252 is the ultimate MIG welding solution. Whether you are working on farm equipment, custom fabrication, or metal art, this machine provides the versatility and output needed to tackle jobs of all sizes. With an amperage range of 30 to 300 amps, it offers the flexibility to weld thin gauge sheet metal or heavy plate steel with equal ease. The Line Voltage Compensation ensures that your welding power remains constant even if the input power varies by +/- 10%, guaranteeing consistent weld quality regardless of shop power fluctuations.
If you weld aluminum, the Millermatic 252 is ready to perform. The machine is designed to make aluminum welding setup easy and efficient. With the ability to directly connect optional Spoolmatic or XR push-pull guns, you can switch from steel to aluminum projects in seconds. The Auto Gun Detect technology is a game-changer for busy welders; simply pick up your spool gun, pull the trigger, and the machine instantly recalls your saved settings for that gun. No more fiddling with knobs or navigating complex menus just to switch processes.

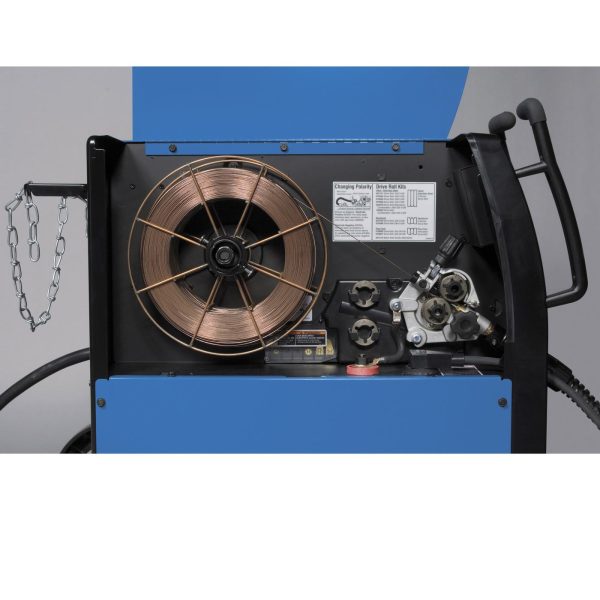

The Millermatic 252 is built to withstand the rigors of daily industrial use. The cast aluminum drive system is engineered to prevent wire hang-ups and bird-nesting, common frustrations with lesser machines. The dual-gear drive ensures positive traction on the wire, which is essential for using longer MIG guns or softer wires. The included 15-foot MDX-250 MIG gun features AccuLock consumables, which provide a steady arc and longer tip life. The extended reach of the gun allows you to work on large assemblies without constantly moving the machine.

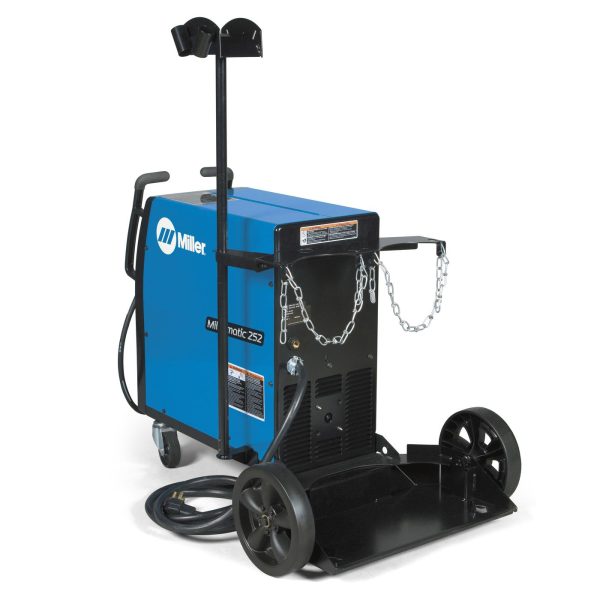

Miller has integrated thoughtful features that make the welder's life easier. The EZ-Change Low Cylinder Rack is a safety and ergonomic feature that cannot be overstated—rolling cylinders on and off saves your back and prevents accidents. The EZ-Access compartment keeps your spare tips and drive rolls organized and within reach, right on the front of the machine. Combined with the flip-down parameter chart, you have everything you need to set up your machine correctly for any material thickness and wire type. Backed by Miller's True Blue 3-Year Warranty, the Millermatic 252 is an investment in quality and productivity.
| Additional Information |
|---|
| Brand:Miller |
| Voltage:208/230 V |
| Amperage:300 |
| Duty Cycle:40% |
| Weld Process:MIG (GMAW) |
| Packaging Description:1 of each |
| Process Type:MIG (GMAW) |
| Input Voltage / Phase:200(208)/230 V, 1-Phase, 60 Hz |
| Amperage Range:30 A - 300 A |
| Rated Output:200 A at 28 VDC, 60% duty cycle, 250 A at 28 VDC, 40% duty cycle |
| Wire Feed Speed:50 - 700 IPM (1.3 - 17.8 m/min) |
| Max Open Circuit Voltage:38 VDC |
| Material Thickness Capacity:Mild Steel: 22 ga. (0.9 mm) - 1/2 in. (13 mm), Aluminum: 14 ga. (1.9 mm) - 3/8 in. (9.5 mm) |
| Dimensions:Height: 30 in (762 mm), Width: 19 in (483 mm), Depth: 40 in (1016 mm) |
| Net Weight:207 lb (94 kg) |
| Warranty:3 Years - Miller True Blue Warranty |
| Item:Welding Machine |
| Input Voltage:208/230 V |
Used this product on the job? Tell other welders how it held up.
Definitely would want it again.
Love the 225 for sure. Right out of the box awesome. Only problem is back in the day when you bought a welder from a dealer the customer would get it delivered, set up, and checked out for any questions by a sales person. Now you are on your own. Not a very personable sale if you ask me. This alone gives me reason to rethink who I buy from.
I would purchase it again
repair shop welder. works very well
Highly recommend for our fabrication
This thing is an absolute unit. I've done a lot of roll cages with it and a lot of heavy duty repairs on semi's with it doesn't even flinch.
I would buy this product again
Great machine! Very fine adjustment increments that could be needed for the purest, maybe a little much for the casual. Easy to setup and get going.
All blue 🫶
Great product, Miller it's the best!
Bentley of MIG machines
I have welded 2" 316 SS block to 1/2" SS plate with no issues. This welder is the best! Some believe in RED machines. I only trust Blue Miller Welders.
Yes
Great
Not sure what to do…
We now have 4 of these miller 252 MiG welders, along with an assortment of other miller products an welders (bobcat 230, aluminum spool guns, air supplies helmets etc) So far have been happy with everything besides these 252 MiG welders, I am so frustrated with these things the guns are complete junk, very often the liner pulls away from the brass end cap where the gas is supplied to the hose which results in no gas flow to the nozzle. Have tried every different miller gun for those welders an have zero luck with any, tried an off brand gun and it was terrible feeling an the guys didn't like it so back to using millers cheap garbage guns and spending a lot of time working on guns an hose liners and waiting as they get sent in time after time to be relined an fixed. We now have 4 spare guns an hoses to replace when one starts acting up and literally still can't keep all machines going with a good liner and gun. Next issue is the machines are now 2 years old, they get used 5 days a week so have some hours on them but are having issues with control boards on 2 of the 4, not what expected when I spent close to $20,000 on these 4 welders. Debating getting a Lincoln or 2 but hate having multiple brands of equipment because parts/consumables are different and makes more of a hassle keeping supplies for them on hand. Over all not impressed with the miller 252
Miller responded
Merchant Response Thank you for sharing your feedback on the. Providing quality products and customer service is very important to us, and we apologize that was not your experience. I want you to know that I will be passing your comments on to our Tech Team. Don’t hesitate to contact us for any reason, 920-734-9821.
Workhorse of medium sized shops
These are just plain no frills workhorse wire feed welders. We have several in the shop and my guys run them hard day in and day out. Gas shielded flux core, solid wire mig and hardface wire these machines are tanks.
I highly recommend this product!
This a great welder! It welds light Sheetmetal to heavy steal plate with ease.
