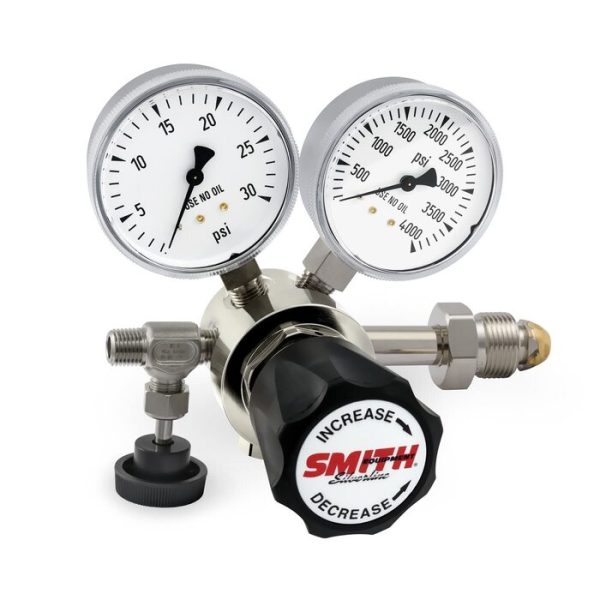

110-2009 - Miller Smith 110 Series Silverline Inert Gas Regulator, 15 PSI, CGA 580

$588.90/ea Save 29% ($168.26)$420.64/ea

Usually ships within 3-5 business days

OVERVIEW

Reliable Control for Inert Gases

When you are out in the shop or setting up a purge line, you need gear that just works. The Miller Smith 110-20-09 Silverline Regulator is the workhorse you've been looking for. Designed for welders and fabricators who need a dependable regulator for inert gases like Argon and Nitrogen, this unit takes the guesswork out of pressure control. It isn't just a delicate instrument; it's built tough with a solid brass body and a plated finish that stands up to the grit and grime of a real working environment. Whether you are pressure testing a system or setting up a shield gas supply, the Silverline series delivers consistent performance day in and day out.

Built for the Job Site
Forget about flimsy regulators that fail after a few months. This Miller Smith model features a filtered seat that blocks dirt and debris from ruining the internal mechanism, meaning you spend less time on repairs and more time working. The large 2-1/2 inch gauges are clear and easy to read, so you can check your tank and line pressure at a glance without squinting. With a delivery range of up to 15 PSI, it is perfect for low-pressure applications where you need steady, reliable flow without fluctuations.

Key User Benefits
The 110-20-09 comes ready to connect with a standard CGA 580 fitting, fitting most inert gas cylinders directly. It also features a handy needle valve on the outlet, giving you immediate control over the flow right at the regulator. The single-stage design is efficient and effective for general purpose use, providing the quality you expect from Miller Smith without the price tag of a high-purity lab regulator. If you need a solid, no-nonsense regulator for Air, Nitrogen, or Argon, this is the tool for your kit.

Additional Information
Brand:Smith Equipment
CGA Fitting:CGA 580
Item:Regulator
Max Inlet:3500 PSI
Max Outlet:15 PSI
Used On Which Gas:Argon or Nitrogen, Inert Gases
Series:Silverline 110
Gas Service:Inert, Air, Nitrogen, Argon, CO2
Stage Type:Single Stage
Body Material:Brass (Plated)
Diaphragm Size:1-7/8 inch
Outlet Connection:1/4" MNPT Needle Valve
Packaging Description:1 per ea

INCLUDED

  • 110 Series Silverline Single Stage Regulator
  • 1/4" MNPT Needle Valve (Chrome)
  • Owner's Manual

APPLICATIONS

  • Inert gas purging and shielding
  • Pressure testing with Nitrogen or Air
  • General purpose laboratory gas delivery
  • Light industrial fabrication
  • Maintenance and Repair Operations (MRO)
  • HVAC system pressure testing

FAQ

The regulator is rated for a maximum inlet pressure of 3500 PSIG.

It is designed for inert and non-corrosive gases including Air, Nitrogen, Argon, and CO2. It comes with a CGA 580 connection.

Yes, this specific model (110-20-09) is equipped with a 1/4" MNPT needle valve on the outlet for flow adjustment.

This model is calibrated for a delivery pressure range of 0-15 PSIG.

No, the Miller Smith 110-20-09 is a single-stage general purpose regulator.

Yes, the body is tapped to allow for rear panel mounting.

This product is covered by the Miller True Blue Warranty.

It features a large 1-7/8 inch diaphragm for precise pressure control.
