0781-5224 - Victor EDGE ETS4 Two-Stage Industrial Air Regulator 5-125 PSI

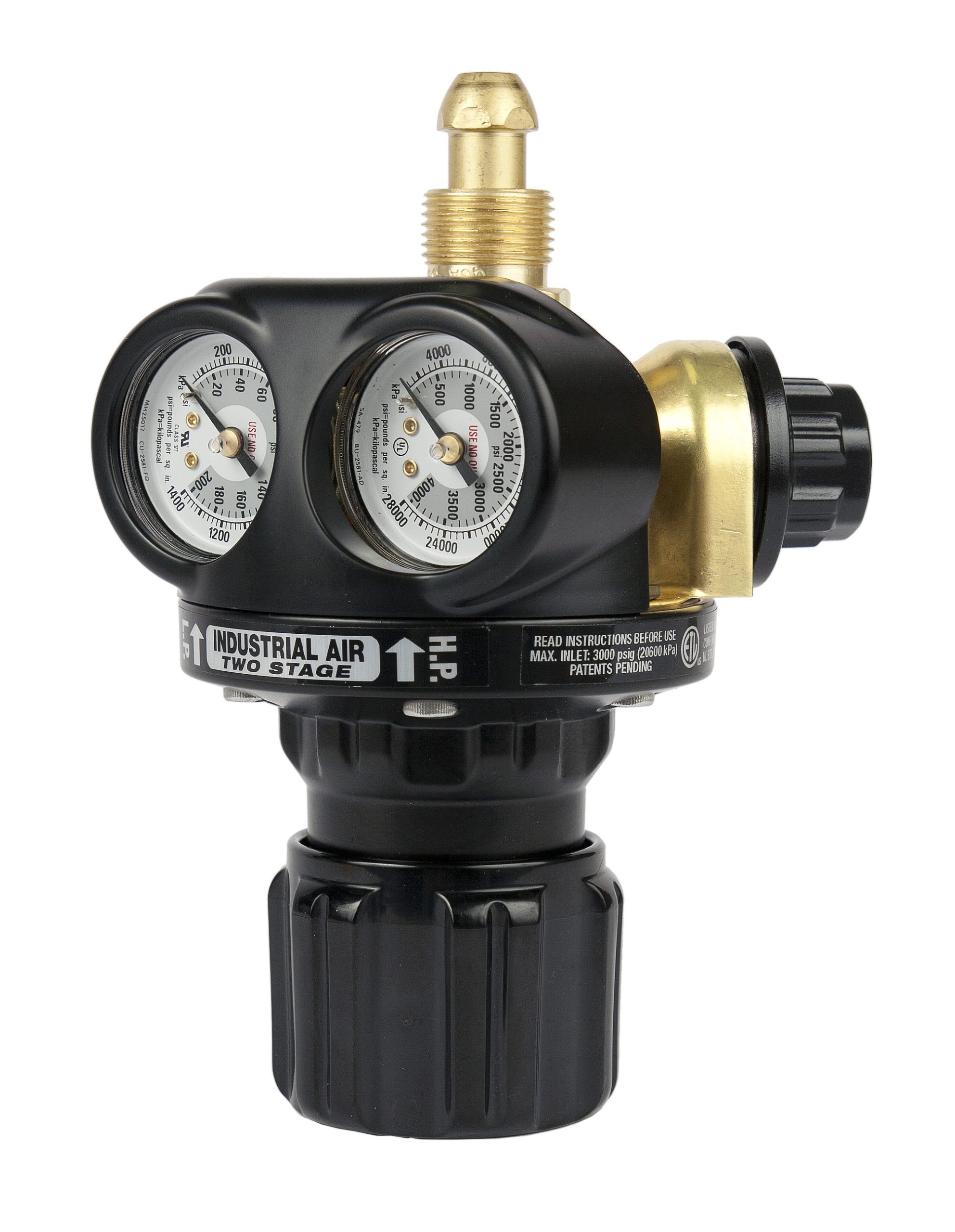

Name: Victor EDGE ETS4 Two-Stage Industrial Air Regulator 5-125 PSI
Brand: Victor
SKU: VIC0781-5224
Price: 1176.13 CAD
Availability: InStock

~~$1,646.58/ea~~ Save 29% ($470.45)$1,176.13/ea

Save an additional $58.81

Join the Nation of Welders Program

SKU: VIC0781-5224 Categories: Regulators & Flowmeters, Victor Regulators and Flowmeters

OVERVIEW

Heavy-Duty Precision with the Victor EDGE ETS4 Air Regulator

When consistency and safety are non-negotiable, the Victor 0781-5224 EDGE ETS4-125-590 Industrial Air Regulator delivers. Designed for professionals who need reliable air pressure control, this two-stage regulator solves the common problem of fluctuating delivery pressure. Unlike single-stage regulators that require constant adjustment as your tank empties, the ETS4 maintains your set pressure of 5-125 PSIG from a full cylinder down to the last few pounds. This

Additional Information
Brand:Victor
Item:Regulator
Gas Type:Industrial Air
Series:EDGE ETS4
Stage Type:Two Stage
Connection Type (CGA):CGA 346
Flow Range:High Capacity
Inlet/Outlet Pressure:Max Inlet: 3000 PSIG, Delivery: 5-125 PSIG
Body Material:Forged Brass, Zinc-Aluminum Cap
Warranty:5 Years
Used On Which Gas?:Industrial Air
CGA Fitting:CGA 346
Max Inlet:3000 PSI
Max Outlet:125 PSI
Packaging Description:pack of 1

INCLUDED

Victor ETS4-125-590 Two Stage Regulator
Integrated 1.5-inch Gauges (Inlet and Outlet)
Sintered Inlet Filter
Owner's Manual

APPLICATIONS

Industrial pneumatic tool operation
Precision leak testing and pressure testing
Laboratory gas control
Manufacturing process air supply
Maintenance and Repair Operations (MRO)
High-pressure cylinder air regulation

FAQ

A two-stage regulator, like the ETS4, reduces cylinder pressure in two steps. This allows it to maintain a constant delivery pressure even as the cylinder pressure drops, whereas a single-stage regulator may show a slight increase in delivery pressure as the tank empties.

This regulator is equipped with a CGA 346 inlet connection, which is the standard connection for Industrial Air cylinders up to 3000 PSIG.

The Victor 0781-5224 is rated for a maximum inlet pressure of 3000 PSIG.

Yes, Victor offers a 5-year warranty on this EDGE series regulator, covering manufacturing defects.

SLAM stands for Shock Limitation and Absorption Mechanism. It is a specially designed adjustment knob that absorbs impact energy if the cylinder falls, protecting the regulator's internal components and the cylinder valve.

No, this specific model is configured for Industrial Air with a CGA 346 connection. You must use a regulator with the correct CGA connection for the specific gas you are using (e.g., CGA 540 for Oxygen, CGA 580 for Nitrogen/Argon).

Yes, the gauges are recessed within the regulator body and protected by a high-impact ABS gauge guard to prevent breakage.

The delivery pressure range is 5 to 125 PSIG.
