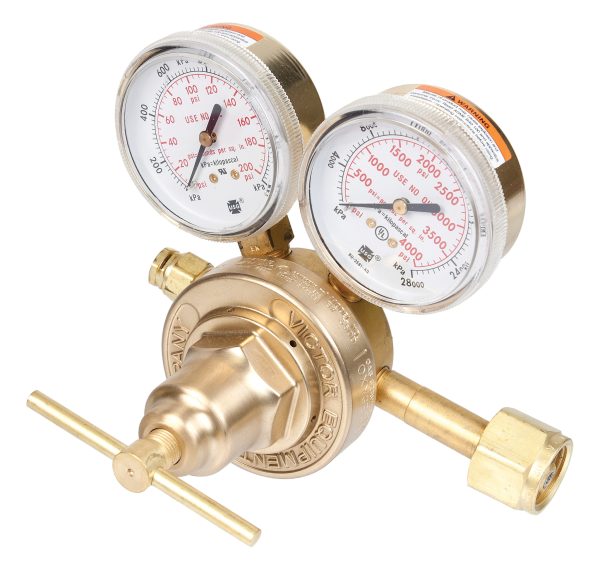

0781-2341 - Victor SR350 Heavy Duty Single Stage Oxygen Regulator, CGA-540

$612.98/ea Save 29% ($175.14)$437.84/ea

Usually ships within 3-5 business days

OVERVIEW

Reliable Oxygen Control for the Professional Welder

When you are out in the shop or on the job site, you need a regulator that can take a beating and still perform. The Victor SR350 Oxygen Regulator is built exactly for that purpose. Known for its legendary Victor durability, this heavy-duty regulator features a solid forged brass body that stands up to the rough conditions of daily welding and cutting. Whether you are running a cutting torch on thick steel or managing oxygen flow for a heating nozzle, the SR350 gives you the control you need without the hassle.

Adjusting your settings is smooth and easy thanks to the large brass T-handle and the Delrin bushing inside, which prevents the screw from binding up. The large 2.5-inch brass gauges are easy to read, even from a distance, so you can keep an eye on your tank levels and line pressure at a glance. The regulator connects easily to any standard oxygen cylinder with a CGA-540 valve and fits standard 9/16"-18 hoses.

Safety is always a priority, which is why Victor includes an external self-reseating relief valve. This feature automatically vents pressure if it gets too high and then reseals itself, protecting your equipment and keeping you safe. If you are looking for a workhorse regulator that fits right into your heavy-duty oxy-fuel outfit, the Victor SR350 is the industry standard for a reason. It delivers consistent pressure, rugged reliability, and the performance professional welders trust.

Additional Information
Brand:Victor
Cga Fitting:CGA 540
Item:Regulator
Max Inlet:3000 PSI
Max Outlet:125 PSI
Used On Which Gas:Oxygen
Packaging Description:1-per-each
Gas Type:Oxygen
Connection Type (CGA):CGA-540
Flow Range:5 - 125 PSIG
Inlet/Outlet Pressure:Max Inlet: 3000 PSIG, Delivery: 5-125 PSIG
Gauge Type:2.5" Brass
Body Material:Die-Forged Brass
Connection Sizes:Inlet: CGA-540, Outlet: 9/16"-18 RH(M)
Pressure Relief Type:External Self-Reseating
Applications:Medium Duty, Heavy Duty, Industrial Gas Control

INCLUDED

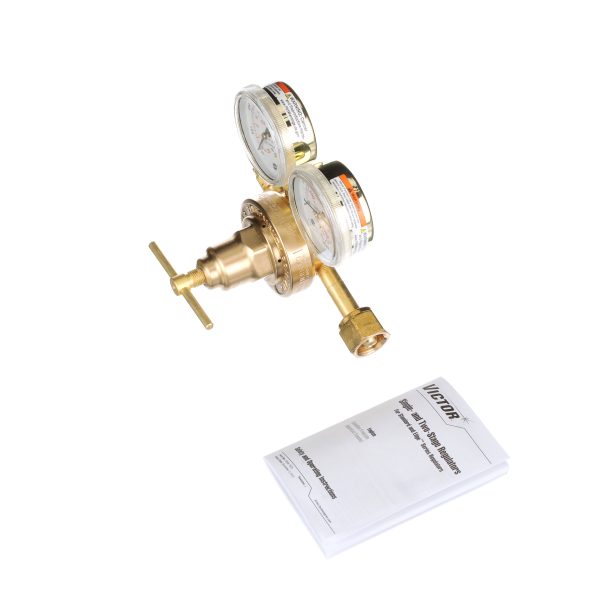

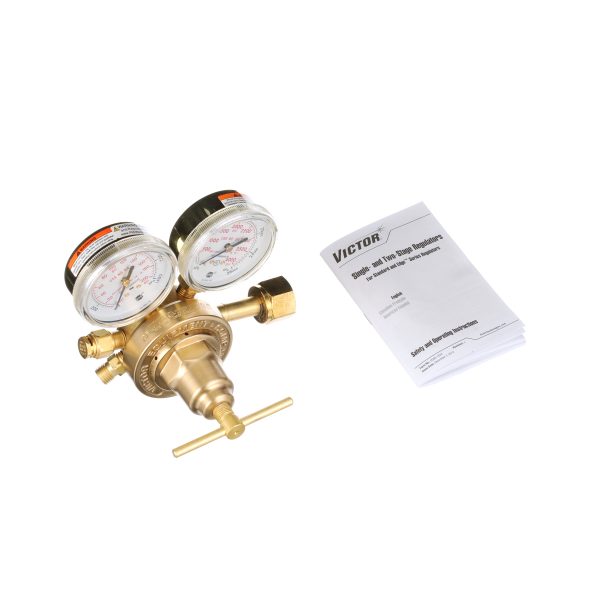

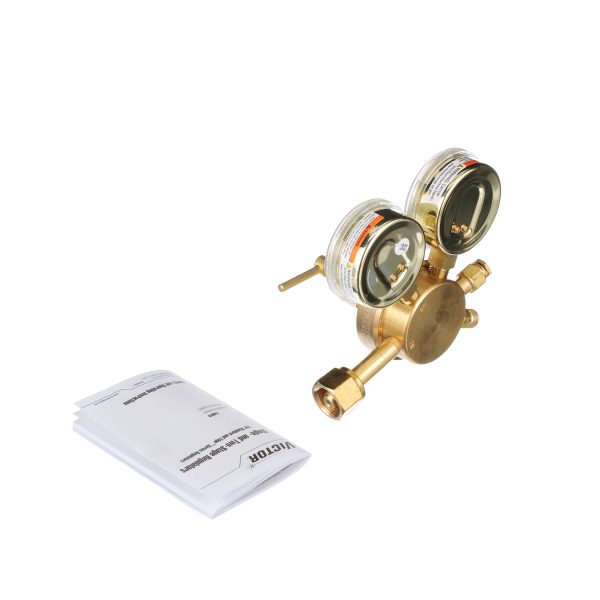

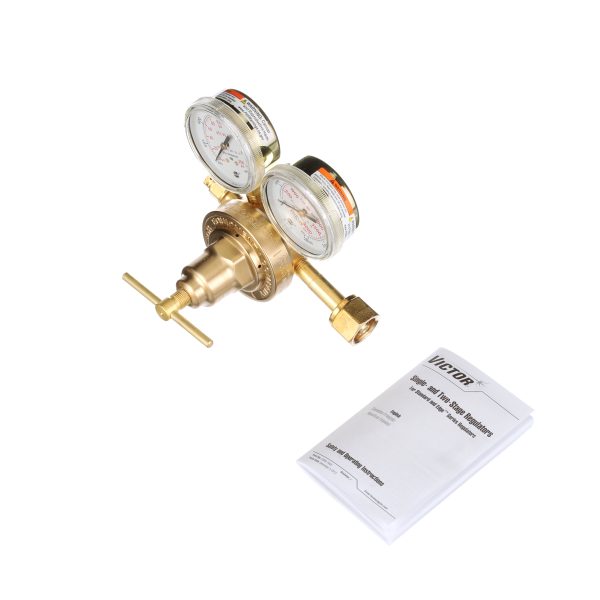

  • Victor SR 350D-540 Single Stage Oxygen Regulator
  • Instruction Manual

APPLICATIONS

  • Heavy-duty oxy-fuel cutting and welding
  • Industrial fabrication shops
  • Maintenance and repair operations (MRO)
  • Scrap and demolition cutting
  • Structural steel work

FAQ

The Victor SR350D-540 has a delivery pressure range of 5 to 125 PSIG.

This regulator is designed for Oxygen cylinders equipped with a CGA-540 valve connection.

This is a single-stage regulator, suitable for applications where minor delivery pressure fluctuations are acceptable as the cylinder empties.

The regulator is rated for a maximum inlet pressure of 3000 PSIG.

Yes, it features an external self-reseating relief valve for safety.

The regulator comes with 2.5-inch brass gauges for clear visibility of inlet and outlet pressures.

The outlet connection is a standard 9/16" - 18 Right Hand (Male) fitting, compatible with standard oxygen hoses.

No, this regulator is specifically designed and CGA-coded for Oxygen. Acetylene requires a different regulator with CGA-510 or CGA-300 connections.
