Walter 3-Inch Crimped Wire Cup Brush with Ring, M10x1.25 Thread

$31.48/ea $20.09/1 per each only $20.09/eaSave 36%

Usually ships within 3-5 business days

OVERVIEW

Superior Surface Prep for Welding Applications

Achieving a clean surface is critical for high-quality welds, and the Walter 13D300 Crimped Wire Cup Brush is the perfect tool for the job. Specifically designed for M10 x 1.25 threaded angle grinders, this 3-inch cup brush excels at clearing away contaminants that can compromise weld integrity. The crimped carbon steel wire provides a vigorous cleaning action that effectively strips away mill scale, heavy rust, slag, and old paint, leaving bare metal ready for welding or inspection. Unlike knot-twisted brushes which are extremely aggressive, the crimped design offers a smoother action that conforms slightly better to irregular surfaces while still delivering rapid material removal.

Durability is a key concern in any welding shop, and Walter addresses this with their unique safety supporting ring technology. This ring constrains the wires, preventing the "blooming" or flaring effect often seen in standard cup brushes. This control keeps the wire tips perpendicular to the work surface for maximum cutting efficiency and prevents premature wire breakage, which is a common safety hazard. Once the exposed wire wears down, simply remove the ring to unleash the remaining wire length, doubling the usable life of the brush and reducing your consumable costs.

Welders will appreciate the smooth, vibration-free operation of this perfectly balanced brush. Excessive vibration can lead to hand-arm fatigue, but Walter's precision manufacturing ensures a stable run even at the maximum rating of 12,000 RPM. Whether you are cleaning base materials before laying a bead, removing inter-pass slag, or finishing a completed fabrication, the 13D300 provides the consistent performance and safety features necessary for professional welding environments. Equip your grinder with Walter's top-tier wire brush technology for cleaner metals and better welds.

Additional Information
Brand:Walter Surface Technologies
Size:3"
Wheel Style:Brush
Used To Grind:Steel
Thread Size:M10 x 1.25
Wire Type:Crimped
Wire Material:Carbon Steel
Max RPM:12,000
Feature:Safety Supporting Ring
Packaging Description:1 per each

INCLUDED

  • 1x 3" Crimped Wire Cup Brush with Safety Ring (M10 x 1.25 Thread)

APPLICATIONS

  • Removing rust, paint, and scale from steel surfaces
  • Surface preparation prior to welding or coating
  • Cleaning metal parts and castings
  • Deburring and finishing metal edges
  • Maintenance and repair operations (MRO)

FAQ

This brush features an M10 x 1.25 thread. Please verify your angle grinder's spindle size before purchasing, as this is different from the standard 5/8"-11 thread.

The supporting ring prevents the wires from flaring out too much during use, which reduces wire breakage and extends the life of the brush. It also keeps the brushing action more aggressive and controlled.

Yes, once the wire wears down to the level of the ring, you can remove the ring to expose the remaining wire length, effectively extending the brush's usable life.

This brush uses carbon steel wire and is designed for use on steel and other ferrous metals. It should not be used on stainless steel or aluminum to avoid cross-contamination.

The maximum safe operating speed is 12,000 RPM. Always ensure your grinder's speed does not exceed this rating.

This is a crimped wire brush. Crimped wire provides a flexible brushing action suitable for general cleaning and surface preparation, whereas knot wire is for more aggressive, heavy-duty impact cleaning.

It depends on the grinder's spindle. Most North American 4.5" grinders use a 5/8"-11 thread. This brush has an M10 x 1.25 thread, which is common on certain metric or smaller grinders. Check your tool's manual.

Yes, always wear proper PPE, including safety glasses, a face shield, gloves, and protective clothing, as wire filaments can occasionally break off during use.

CATALOGUE & SPEC SHEETS

Spec Sheet

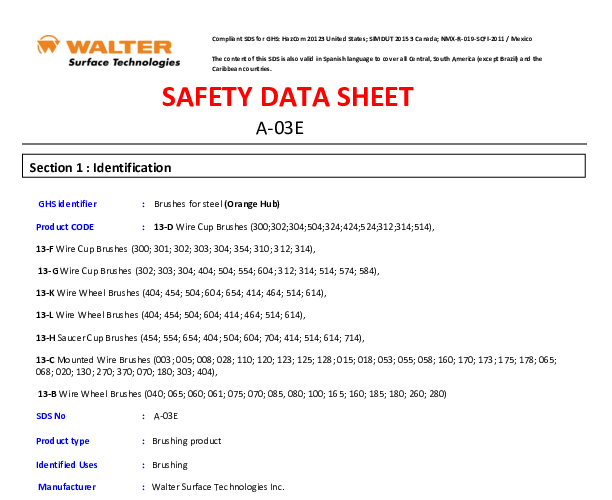

Safety Data Sheet
