Walter 5-Inch Crimped Wire Cup Brush with Safety Ring, Steel, 5/8-11 Arbor

$220.98/ea $141.01/1 per each only $141.01/eaSave 36%

Usually ships within 3-5 business days

OVERVIEW

Heavy-Duty Rust and Paint Removal

Tackle the toughest cleaning jobs with the Walter 13G584 5" Wire Cup Brush. Built for welders and fabricators who demand durability, this brush features high-quality carbon steel bristles that cut through rust, old paint, and mill scale with ease. Whether you are prepping a trailer frame for a new coat of paint or cleaning up a steel plate before welding, this cup brush delivers consistent results every time.

Built for the Grind

Time is money in the shop, and changing out worn brushes slows you down. The Walter 13G584 is engineered with a special supporting ring that keeps the wires tight and prevents them from splaying out under load. This means you get a more focused cleaning action and the brush lasts significantly longer. Once the exposed wire wears down, simply remove the ring to unleash a second life for your brush. It's like getting two brushes in one.

Smooth Operation

Vibration is the enemy of productivity. Walter Surface Technologies balances every brush to ensure smooth operation at high RPMs. This reduces operator fatigue and wear on your angle grinder bearings. The crimped wire design offers a controlled cleaning action that conforms to slightly irregular surfaces, making it more forgiving than knotted wheels while still being tough enough for industrial environments.

Compatibility

Designed with a standard 5/8"-11 threaded hub, this cup brush spins on and off your 5-inch, 6-inch, or larger angle grinder in seconds. It is rated for safe use at high speeds, ensuring you can power through large surface areas quickly. Note: This brush uses carbon steel wire and is intended for use on carbon steel metals. For stainless steel or aluminum work, be sure to switch to a stainless steel wire brush to prevent cross-contamination.

Additional Information
Brand:Walter Surface Technologies
Diameter:5"
Arbor (in):5/8"
Used To Grind:Steel
Wheel Style:Brush
Packaging Description:1 per each
Wire Material:Carbon Steel
Wire Style:Crimped
Features:With Safety Ring

INCLUDED

  • 1x 5" Crimped Wire Cup Brush with Ring (Steel)

APPLICATIONS

  • Removing rust and corrosion from steel surfaces
  • Stripping paint and coatings
  • Cleaning metal prior to welding
  • Removing weld scale and spatter
  • General surface preparation and deburring
  • Maintenance and repair operations (MRO)

FAQ

The ring supports the wires to prevent them from flaring out during use, which maintains a consistent brush width and increases safety. It also extends the life of the brush.

Yes, once the exposed wire has worn down to the level of the ring, the ring can be removed to expose the remaining wire length, effectively extending the brush's usage.

This brush features carbon steel wire and is designed for use on carbon steel. It should not be used on stainless steel or aluminum to avoid contamination and rust issues.

It has a 5/8"-11 threaded arbor, which fits most standard 4.5", 5", 7", and 9" angle grinders (check your grinder's speed rating and guard clearance).

Crimped wire is more flexible and less aggressive, making it better for light to medium cleaning, paint removal, and surface finishing. Knotted wire is for heavy-duty slag and heavy rust removal.

Always check the label on the physical product, but 5-inch cup brushes typically have a max RPM around 8,600. Ensure your grinder does not exceed the brush's rating.

The supporting ring allows for more pressure and aggressive use without wire fatigue, enabling faster cleaning rates compared to unsupported brushes.

The brush has a built-in 5/8"-11 threaded nut, so it screws directly onto the grinder spindle without needing extra adapters.

CATALOGUE & SPEC SHEETS

Spec Sheet

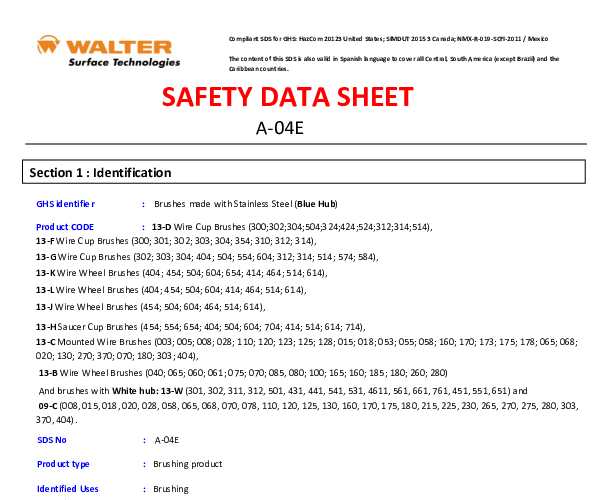

Safety Data Sheet
