Walter 5-Inch Stainless Steel Saucer Cup Brush for Angle Grinders

$85.70/ea $54.69/1 per each only $54.69/eaSave 36%

Usually ships within 3-5 business days

OVERVIEW

Get Into the Corners with the Walter Saucer Cup Brush

Every welder knows the frustration of trying to clean a weld in a tight corner where a standard cup brush just won't fit. You end up angling the grinder awkwardly, risking a kickback or uneven cleaning. The Walter 5" Stainless Steel Saucer Cup Brush (13H514) is the solution you've been looking for. This isn't just another wire brush; it's a specialized problem-solver designed with a unique 45-degree saucer shape. This angled profile combines the best features of a wire wheel and a cup brush, allowing you to attack fillet welds, corners, and intricate shapes comfortably and safely. It essentially gives your angle grinder the versatility to clean areas that were previously hand-brush territory.

When working with stainless steel or aluminum, contamination is the enemy. A stray carbon steel bristle can ruin a pristine stainless job by embedding iron particles that eventually rust. This Walter brush is made with premium quality stainless steel wire, ensuring that your passivation remains intact and your welds stay clean. It is the perfect companion for post-weld cleaning, removing heat discoloration, slag, and spatter effectively. The aggressive knot-twisted wire design provides the bite needed for heavy-duty cleaning while maintaining a long service life, even under rigorous daily use in a fab shop.

Performance is matched by comfort. Walter Surface Technologies has balanced this brush to run smoothly on your 5-inch grinder (5/8"-11 arbor). Less vibration means you have better control over the tool, resulting in a more uniform finish and less strain on your wrists and arms. Whether you are prepping a surface for welding or cleaning up a finished joint, the 13H514 offers the reliability and access you need. Stop struggling with flat cup brushes in tight spots and upgrade to the saucer shape that works with you, not against you.

Additional Information
Brand:Walter Surface Technologies
Diameter:5"
Arbor In:5/8"
Used To Grind:Stainless or Aluminum
Wheel Style:Brush
Wire Material:Stainless Steel (304)
Shape:Saucer Cup (45° Angle)
Max RPM:12500
Wire Type:Knot-Twisted
Packaging Description:1 per each

INCLUDED

  • 1x Walter 5" Saucer Cup Brush (Stainless Steel Wire)

APPLICATIONS

  • Cleaning fillet welds on stainless steel and aluminum structures
  • Deburring complex machined parts
  • Removing oxide, scale, and heat discoloration
  • Surface preparation prior to welding or coating
  • Maintenance and repair in food processing or chemical plants
  • Accessing tight corners and irregular geometries

FAQ

The saucer cup shape features a built-in 45-degree angle, which allows the brush to reach into tight corners and contours that standard flat cup brushes cannot access. It combines the benefits of a wheel and a cup brush.

While it physically can brush carbon steel, it is not recommended if you plan to use it on stainless steel or aluminum later. Using it on carbon steel will contaminate the brush bristles with iron, which can then be transferred to stainless steel, causing rust.

This brush is designed for 5-inch angle grinders with a standard 5/8"-11 threaded spindle.

Yes, the stainless steel wire construction makes it safe for use on aluminum, preventing ferrous contamination and rust.

The Walter 13H514 is rated for a maximum speed of 12,500 RPM. Always ensure your grinder does not exceed this speed.

No, Walter brushes are known for their precision balancing, which significantly reduces vibration compared to cheaper alternatives, reducing operator fatigue.

This brush typically features knot-twisted wire, which is more aggressive and suitable for heavy cleaning. Crimped wire is generally more flexible and used for lighter surface finishing.

Stainless steel wire is non-ferrous in the context of rusting. It prevents 'after-rust' on stainless steel workpieces that occurs when carbon steel particles from a standard brush get embedded in the surface.

CATALOGUE & SPEC SHEETS

Spec Sheet

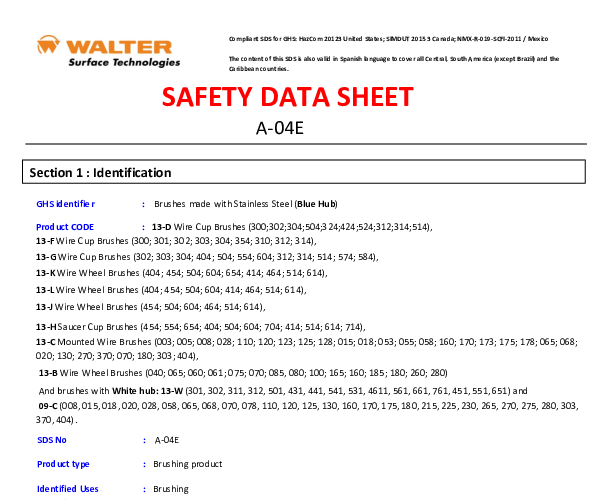

Safety Data Sheet
