13D314 - Walter 3-Inch Crimped Stainless Steel Cup Brush 5/8-11 Arbor

Packaging: 1 in a pack
$48.90/ea $31.20/1 in a pack only $31.20/eaSave 36%

Usually ships within 3-5 business days

OVERVIEW

Contamination-Free Cleaning for Stainless Welds

For professional welders working with stainless steel and aluminum, surface preparation is not just about cleanliness—it is about metallurgy. The Walter 13D314 Crimped Cup Brush is the welder's best defense against weld contamination and oxide inclusions. When welding stainless steel, using a standard carbon steel brush can embed free iron into the surface, leading to "after-rust" and compromising the corrosion resistance of the finished part. This Walter brush is constructed strictly with 304 stainless steel wire, ensuring that your expensive stainless projects remain truly stainless. It is the ideal tool for pre-weld cleaning to remove oils and oxides, as well as post-weld cleaning to remove heat tint and discoloration.

The 3-inch cup design is particularly effective for cleaning larger, relatively flat areas or broad curved surfaces that a stringer bead brush would take too long to cover. The crimped wire style is less aggressive than a twisted knot wheel, making it perfect for applications where you need to clean the metal without removing base material or leaving deep scratches that could trap bacteria or dirt. This is especially important in sanitary welding applications, such as in the food and beverage or pharmaceutical industries. The flexibility of the crimped wires allows them to reach into surface pores and textures, lifting away slag and spatter effectively.

Comfort is key during long shifts, and Walter's superior balancing technology means this brush spins true on your grinder. Less vibration means more control over your tool and less strain on your wrists and hands. With a 5/8"-11 arbor, it spins on and off your grinder in seconds, allowing you to switch between cutting and cleaning tasks rapidly. Whether you are prepping aluminum to prevent porosity or polishing a stainless tank repair, the 13D314 delivers the reliability and finish quality that professional fabricators demand.

Additional Information
Brand:Walter Surface Technologies
Diameter:3"
Arbor In:5/8"
Used To Grind:Stainless or Aluminum
Wheel Style:Brush
Packaging Description:1 per each
Wire Material:304 Stainless Steel
Wire Style:Crimped
Wire Diameter:0.0118"
Max RPM:12000
Trim Length:Standard
Arbor (in):5/8"

INCLUDED

  • 1x Walter 3" Crimped Stainless Steel Cup Brush (5/8"-11 Arbor)

APPLICATIONS

  • Cleaning heat tint and discoloration from stainless steel welds
  • Surface preparation on aluminum prior to welding
  • Removing paint, rust, and scale from non-ferrous metals
  • Light deburring of machined parts
  • Maintenance cleaning of tanks and vessels
  • General surface finishing in food and beverage facilities

FAQ

This brush features a standard 5/8"-11 threaded arbor, compatible with most 4.5-inch and 5-inch angle grinders.

While it will physically work, it is not recommended. Using a stainless brush on carbon steel is a waste of the more expensive stainless wire, and if you later use the same brush on stainless steel, you will transfer carbon contaminants back onto the stainless, causing rust.

The maximum safe operating speed is 12,000 RPM. Always ensure your grinder's no-load speed does not exceed this rating.

Crimped wire is more flexible and less aggressive, making it better for light cleaning, surface finishing, and working on larger flat areas without digging into the metal. Knot wire is for heavy-duty impact and scale removal.

Yes, the stainless steel wire is compatible with aluminum and will not cause rust or ferrous contamination, making it excellent for cleaning aluminum oxide before welding.

The wire diameter is .0118 inches, which provides a good balance between stiffness for cleaning and flexibility for finish quality.

No, this is a cup brush with an integrated arbor. It screws directly onto the spindle of your angle grinder.

Use the lightest pressure possible. Let the tips of the wire do the work. Excessive pressure bends the wires, causing fatigue and premature breakage.

CATALOGUE & SPEC SHEETS

Spec Sheet

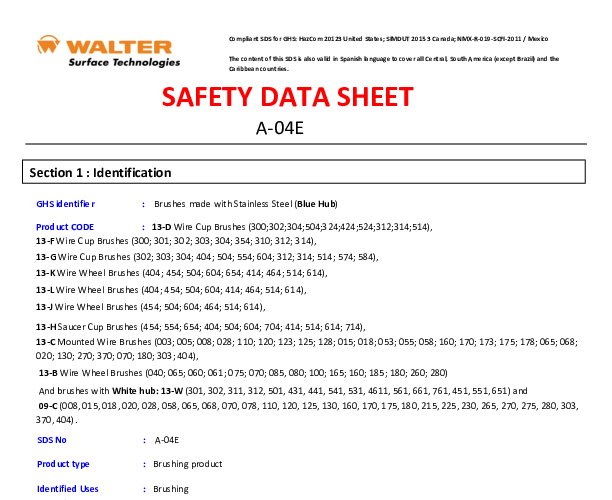

Safety Data Sheet
