13G304 - Walter 3-Inch Knot Twist Wire Cup Brush with Ring - Steel .020

Packaging: 1 in a pack
$48.90/ea $31.20/1 in a pack only $31.20/eaSave 36%

Usually ships within 3-5 business days

OVERVIEW

Aggressive Rust and Slag Removal

When you need to strip a surface down to bare metal fast, the Walter 13G304 3" Knot Twist Cup Brush is the tool for the job. Built for professional welders and fabricators, this brush combines the aggressive cutting power of knot-twisted wire with the longevity provided by a support ring. The .020" steel wire is stiff and durable, capable of digging into pits and crevices to rip out rust, scale, and weld slag that softer brushes leave behind. It is the perfect companion for your 4.5" or 5" angle grinder, threading directly onto the 5/8"-11 spindle.

The "W/Ring" in the name refers to the metal band that encircles the wire knots. This isn't just for packaging; it's a performance feature. By holding the knots tight, the ring prevents them from splaying out under high RPMs. This keeps the wire tips stiff and perpendicular to the work surface, which is where the cutting action happens. The result is a brush that cuts faster and lasts significantly longer than standard knot cups. It is particularly effective for cleaning weld passes, preparing bevels for welding, or stripping paint from structural steel.

Walter Surface Technologies is known for manufacturing brushes that are perfectly balanced. An unbalanced brush on a grinder spinning at 10,000+ RPM creates vibration that numbs your hands and fights your control. The 13G304 spins true, allowing you to work with precision and comfort. If you are working with carbon steel and need a brush that can handle the heat and abuse of daily fabrication work, this is the cup brush to keep in your toolbox.

Applications for Welders

Use this brush for post-weld cleaning to remove stubborn slag, especially from flux-cored arc welding. It is also excellent for pre-weld prep, ensuring your base metal is free of contaminants like heavy rust or mill scale. The 3-inch size is versatile enough for flat surfaces while still being compact enough to maneuver around some irregularities.

Additional Information
Brand:Walter Surface Technologies
Diameter:3"
Arbor (in):5/8"
Wheel Style:Twist Knot
Used To Grind:Steel
Packaging Description:1 per each
Wire Diameter:.020"
Wire Material:Carbon Steel
Brush Type:Cup Brush with Safety Ring
Max RPM:12000

INCLUDED

  • 1x Walter 3" Knot Twist Cup Brush with Support Ring (.020" Steel Wire)

APPLICATIONS

  • Removing heavy rust, mill scale, and corrosion from steel
  • Cleaning weld slag and spatter
  • Deburring metal edges and flame-cut parts
  • Surface preparation prior to painting or coating
  • Stripping paint from metal surfaces
  • Cleaning large structural steel beams and plates
  • Ship hull maintenance and cleaning

FAQ

The support ring prevents the wire knots from flaring out due to centrifugal force. This maintains a more aggressive cutting angle, prevents premature wire breakage, and significantly extends the life of the brush.

No, this brush uses carbon steel wire. Using it on stainless steel will cause "after-rust" or contamination. For stainless steel, you should use a brush with stainless steel wire (typically color-coded blue by Walter).

This 3-inch cup brush comes with a 5/8"-11 threaded arbor, which is the standard spindle size for most 4-1/2" and 5" angle grinders in North America.

The maximum safe operating speed is typically 12,000 RPM. Always check the RPM rating stamped on the brush itself and ensure your grinder does not exceed this speed.

The .020" refers to the diameter of the individual wire filaments. This is a relatively thick wire, making it suitable for heavy-duty, aggressive cleaning applications rather than fine finishing.

Yes, the aggressive knot-twist design is very effective at stripping paint from steel surfaces. However, be careful on thinner metals as the aggressive action can remove base material if excessive pressure is applied.

Knot twist brushes are much more aggressive and stiffer than crimped wire brushes. They are designed for heavy material removal and high-impact cleaning, whereas crimped brushes are for lighter cleaning and surface finishing.

CATALOGUE & SPEC SHEETS

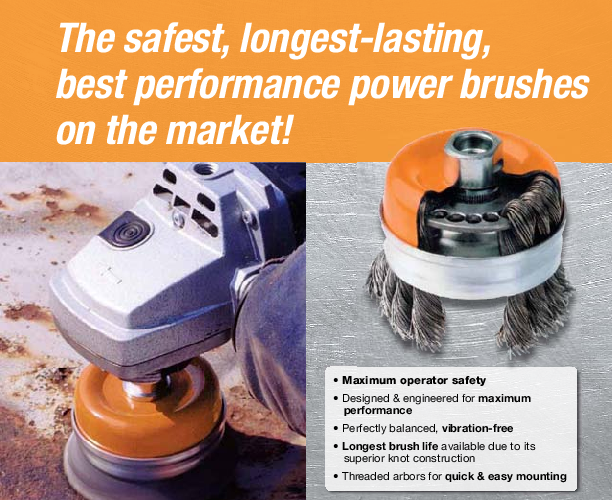

Spec Sheet

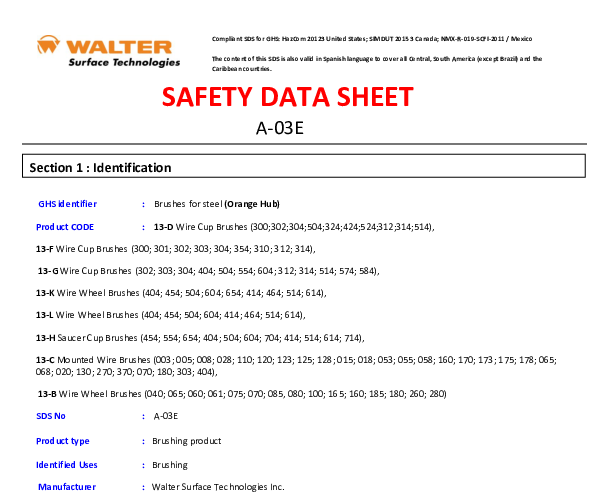

Safety Data Sheet
