13G404 - 4-Inch Knot Wire Cup Brush with Safety Ring - Carbon Steel

Packaging: 1 in a pack
$59.60/ea $38.04/1 in a pack only $38.04/eaSave 36%

Usually ships within 3-5 business days

OVERVIEW

Aggressive Cleaning for Professional Welders

For welders and metalworkers, surface preparation is a critical step that dictates the quality of the final product. The Walter 13G404 4" Knot Twist Cup Brush with Ring is built to handle the tough reality of the welding shop. Designed to fit standard angle grinders with a 5/8"-11 thread, this brush transforms your grinder into a powerhouse for cleaning and descaling. Its robust construction is optimized for working on steel, making it a go-to tool for prepping base metals or cleaning up finished welds.

Controlled Power with Knot Twist Design

The 13G404 features a knot-twisted wire configuration, which bundles the steel filaments into tight, rope-like strands. This design provides a much higher impact action compared to crimped wire brushes, making it suitable for removing stubborn contaminants like heavy slag, thick rust, and old coatings. The addition of a steel supporting ring around the bristles is a game-changer for performance. It prevents the knots from expanding too wide during rotation, keeping the brush face aggressive and concentrated. As the wire wears down, the ring ensures that the brush retains its shape and effectiveness throughout its lifespan.

Built for the Grind

Walter Surface Technologies is known for producing abrasives that last, and the 13G404 is no exception. The wires are made from premium carbon steel that has been oil-hardened and tempered. This metallurgical processing ensures that the wires stay sharp and resist bending or snapping, which is a common failure point in lesser brushes. The result is a safer work environment with fewer flying wire fragments and a tool that lasts significantly longer, providing better value for your shop.

Perfect Balance and Usability

Vibration is the enemy of precision and comfort. Walter ensures that every 13G404 cup brush is perfectly balanced to run smoothly on your grinder. This smooth action allows for better control when cleaning large flat surfaces or maneuvering around workpieces. The .020" steel wire is aggressive enough to strip surfaces down to bare metal quickly, ensuring excellent conductivity for welding or a clean profile for coating adhesion. Whether you are in a shipyard, a structural steel plant, or a custom fab shop, this brush delivers the reliability you need.

Additional Information
Brand:Walter Surface Technologies
Diameter:4"
Arbor (in):5/8"
Wheel Style:Twist Knot
Used To Grind:Steel
Packaging Description:1 per each
Wire Diameter:.020"
Wire Material:Carbon Steel
Brush Type:Cup Brush with Ring
Thread Size:5/8"-11

INCLUDED

  • 1 x 4" Knot Twisted Wire Cup Brush with Safety Ring (.020" Steel Wire)

APPLICATIONS

  • Heavy-Duty Cleaning: Removal of heavy rust, scale, and corrosion from steel beams and plates.
  • Weld Preparation: Cleaning base materials prior to welding to ensure defect-free joints.
  • Post-Weld Finishing: Aggressive removal of slag and heavy spatter from weld seams.
  • Surface Stripping: Removing old paint, varnish, and coatings from large flat surfaces.
  • Deburring: Removing large burrs from cut steel edges.
  • Maintenance: Cleaning machinery, ship hulls, and tank surfaces.

FAQ

The safety supporting ring prevents the wire knots from flaring out due to centrifugal force. This keeps the brush face dense for more aggressive cleaning and extends the life of the brush by reducing wire fatigue.

This brush is designed for angle grinders that accept a 4-inch accessory and have a 5/8"-11 threaded spindle.

It is not recommended. This brush uses carbon steel wire, which can leave iron deposits on aluminum or stainless steel, leading to after-rust or galvanic corrosion. Use a stainless steel wire brush for those materials.

The wire diameter is .020 inches. This is a relatively thick wire gauge, making the brush stiff and aggressive, ideal for heavy-duty removal rather than light finishing.

Yes, absolutely. Always wear ANSI-approved safety glasses or a face shield, gloves, and protective clothing. Wire brushes can shed filaments during use.

Knot twisted wire is twisted into tight bundles for high-impact, aggressive cleaning of heavy rust and slag. Crimped wire is wavy and flexible, better for lighter cleaning and larger surface blending.

It features a built-in 5/8"-11 threaded nut (arbor) that screws directly onto the grinder's spindle, eliminating the need for a separate locking nut.

CATALOGUE & SPEC SHEETS

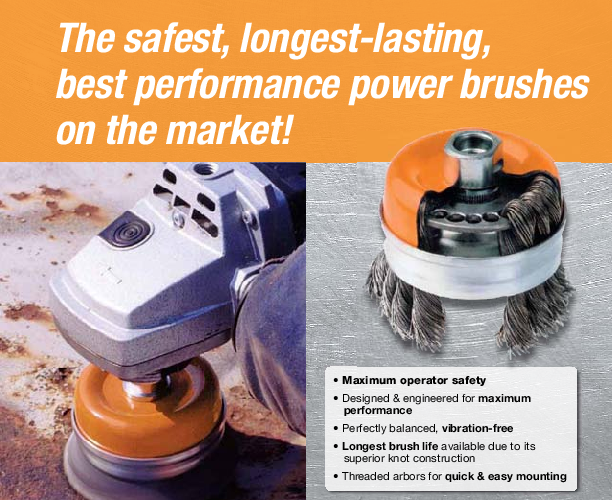

Spec Sheet

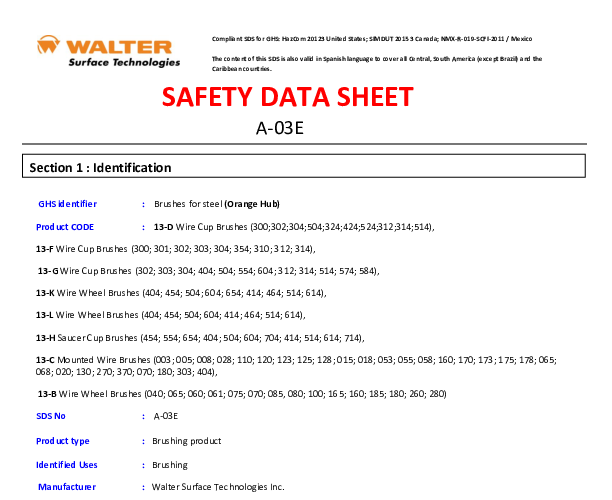

Safety Data Sheet
