01V054 - Walter SA-5NF Aluminum Cut Carbide Burr 1/2-Inch

Packaging: 1 per each
$98.58/ea $86.58/1 per each only $86.58/eaSave 12%

Usually ships within 3-5 business days

OVERVIEW

Fast and Clean Aluminum Grinding with Walter

Stop struggling with clogged grinding bits when working on aluminum. The Walter 01V054 Carbide Burr SA-5 NF is specifically engineered to handle the unique demands of soft, gummy metals. If you have ever used a standard metal burr on aluminum, you know the frustration of the flutes packing full of material, rendering the tool useless in seconds. Walter solves this problem with their specialized "NF" (Non-Ferrous) cut. This design features wide, deep valleys between the cutting blades, allowing chips to fly clear of the tool rather than sticking to it. The result is a burr that cuts aggressively and stays clean, letting you get the job done faster.

This burr features the popular SA-5 cylindrical shape, measuring 1/2 inch in diameter. It is perfect for smoothing out flat surfaces, cleaning up edges, or widening slots. The tool is crafted from premium tungsten carbide, a material known for its extreme hardness and heat resistance. This means your burr stays sharp job after job, outlasting cheaper alternatives and saving you money on replacements. The 1/4-inch shank is the industry standard, so it will fit right into your existing die grinder collet without any hassle.

Comfort and control are just as important as cutting speed. Walter manufactures these burrs with strict attention to balance. A balanced burr spins true without wobbling, which eliminates the "chatter" that can ruin a workpiece or numb your hands after a long day of grinding. With the Walter SA-5 NF, you get smooth, vibration-free operation that leaves a professional finish on your work. It is an excellent choice for automotive porting, boat repair, custom fabrication, and any other project involving aluminum or non-ferrous metals.

Upgrade your abrasive arsenal with a tool designed for the task at hand. Whether you are deburring a fresh cut, blending a weld, or shaping a custom part, the Walter 01V054 delivers the performance professional welders and fabricators demand. Experience the difference of a true non-ferrous carbide burr and say goodbye to clogged tools and wasted time.

Additional Information
Brand:Walter Surface Technologies
Used To Grind:Aluminum
Packaging Description:1 per each
Shape:Cylindrical (SA-5)
Cut Type:Non-Ferrous (Aluminum Cut)
Material:Tungsten Carbide
Diameter:1/2 in
Shank Diameter:1/4"

INCLUDED

  • 1x Walter Carbide Burr SA-5 NF (01V054)

APPLICATIONS

  • Grinding and deburring aluminum and aluminum alloys
  • Surface finishing on non-ferrous metals (copper, brass, bronze)
  • Working with soft plastics and hard rubber
  • Enlarging holes and slots
  • Removing welds and sharp edges on soft materials
  • Automotive porting and engine work
  • Shipbuilding and aerospace fabrication

FAQ

NF stands for 'Non-Ferrous'. This indicates the burr has a specific cut geometry with wider flutes designed to prevent clogging when grinding soft metals like aluminum.

The SA-5 is a cylindrical burr with a plain end (no cutting teeth on the very bottom). It is typically used for surface grinding and contouring.

While tungsten carbide is hard enough to cut steel, the NF geometry is aggressive and optimized for soft metals. Using it on hardened steel may cause chipping; a double-cut burr is recommended for steel.

You will need a die grinder (pneumatic or electric) with a 1/4-inch collet to operate this carbide burr.

Standard burrs have tight flutes that pack with aluminum quickly. This Walter NF burr has an open design that ejects chips, allowing for continuous cutting without stopping to clean the tool.

This is an SA-5 size burr, which generally measures 1/2 inch in cutter diameter and 1 inch in length of cut, on a standard 1/4 inch shank.

Yes, it is made from high-quality tungsten carbide, which is much harder and more wear-resistant than High-Speed Steel (HSS) burrs.

CATALOGUE & SPEC SHEETS

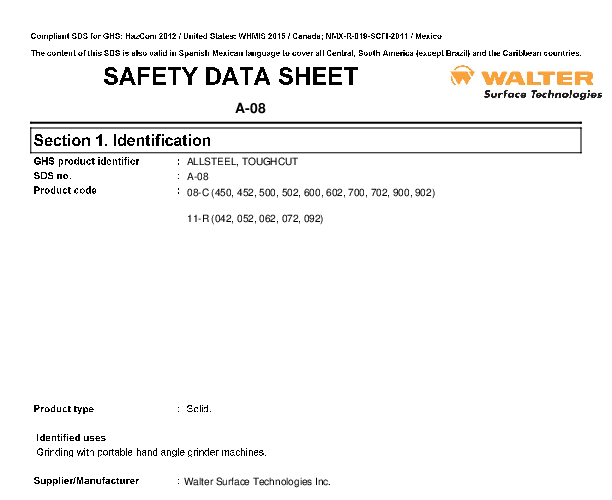

Safety Data Sheet
