Walter SD-5 Non-Ferrous Carbide Burr for Aluminum

$63.20/ea $55.50/1 per each only $55.50/eaSave 12%

Usually ships within 3-5 business days

OVERVIEW

Professional Grade SD-5 Aluminum Carbide Burr

Maximize your productivity when working with aluminum using the Walter 01V063 Carbide Burr. This tool is specifically designed to solve the frustration of clogged burrs. When grinding soft, non-ferrous metals, standard double-cut or single-cut burrs often pack with material almost instantly. The Walter 01V063 utilizes a specialized Non-Ferrous (NF) geometry with wide, deep flutes and a coarse pitch. This design allows for rapid stock removal while ejecting chips effortlessly, keeping the cutting edges clean and biting into the material throughout the entire operation.

The SD-5 Ball shape is incredibly versatile, allowing welders and fabricators to reach into tight radii, deburr drilled holes, and blend concave surfaces with ease. Because Walter manufactures these burrs to exacting standards, you can expect a tool that runs true. A balanced burr means less vibration in your die grinder, which translates to better control, smoother surface finishes, and less wear on your power tools. The shank is securely bonded to the carbide head, ensuring safety and stability even at high RPMs.

Invest in tooling that keeps up with your pace. The Walter 01V063 is built for heavy-duty industrial environments where downtime for tool cleaning or replacement costs money. Its superior tungsten carbide composition resists wear and maintains a sharp cutting edge, providing excellent value over the life of the product. Perfect for tasks ranging from heavy stock removal to final surface preparation on aluminum, zinc, and other soft alloys, this burr is a must-have for any professional metalworker's arsenal.

Additional Information
Brand:Walter Surface Technologies
Used To Grind:Aluminum
Shape:SD-5 (Ball)
Cut Type:Non-Ferrous (NF), Aluminum Cut
Material:Tungsten Carbide
Application:Aluminum, Non-ferrous metals, Soft alloys
Packaging Description:1 per each

INCLUDED

  • 1x Walter Carbide Burr SD-5 NF (Ball Shape, Non-Ferrous Cut)

APPLICATIONS

  • Grinding and deburring aluminum structures
  • Finishing non-ferrous castings
  • Enlarging holes in soft metals
  • Contouring and blending welds on aluminum
  • Working with magnesium, copper, and brass
  • Automotive and aerospace component fabrication

FAQ

The SD-5 is a Ball shape burr, which is ideal for contouring, hollowing out areas, and deburring holes.

NF stands for Non-Ferrous. It indicates a specific cut pattern with wider flutes designed to prevent clogging when grinding soft metals like aluminum.

While tungsten carbide is hard enough to cut steel, the NF (Non-Ferrous) design is optimized for soft metals. Using it on hard steel may result in chipping due to the aggressive tooth angle. It is best used on aluminum, copper, or brass.

Standard double-cut burrs have small flutes that easily fill up with soft aluminum (loading), stopping the cutting action. This NF burr has large, open flutes that eject chips, allowing for continuous cutting.

This carbide burr is designed for use with a pneumatic or electric die grinder.

No, Walter carbide burrs are manufactured with high precision for perfect concentricity, which minimizes vibration and chatter during use.

The head is made from high-quality Tungsten Carbide, known for its extreme hardness and heat resistance.

CATALOGUE & SPEC SHEETS

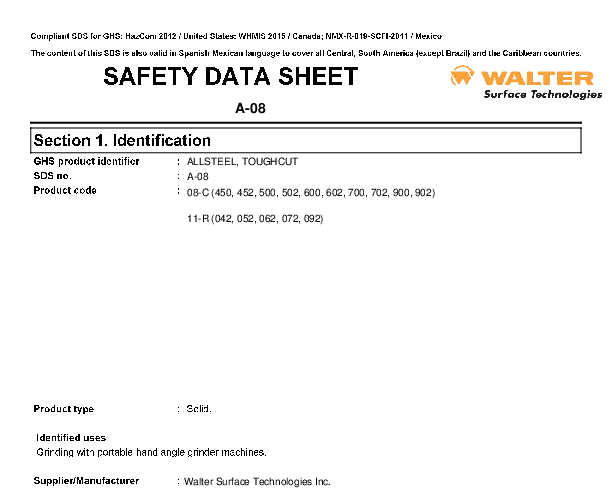

Safety Data Sheet
