Walter SF-42 Double Cut Tungsten Carbide Burr 1/8-Inch Shank

$25.66/ea $22.53/1 per each only $22.53/eaSave 12%

Usually ships within 3-5 business days

OVERVIEW

Superior Weld Preparation and Finishing

For professional welders and fabricators, the finish is just as important as the weld itself. The Walter 01V022 Carbide Burr SF-42 DC is your go-to solution for efficient weld cleaning, defect removal, and surface preparation. Built with premium tungsten carbide, this rotary burr cuts through tough materials like stainless steel and hard alloys without losing its edge, saving you time and money on consumable replacements. The "Double Cut" design is a favorite among fabricators because it offers a balanced feel—it bites into the metal for rapid removal but remains easy to control, reducing the likelihood of the tool "walking" across your workpiece.

The SF-42 shape, known as a tree with a radius end, is incredibly useful for accessing tight corners and curved geometries often found in pipe welding and complex fabrication assemblies. It allows you to grind out porosity or slag inclusions with surgical precision or enlarge mounting holes to exact tolerances. Because it produces small chips rather than long, sharp slivers, cleanup is faster and safer for the operator. The 1/8-inch shank is compatible with smaller, pencil-style die grinders, offering you the dexterity needed for fine detail work.

Don't settle for inferior grinding bits that vibrate and dull quickly. Walter's commitment to quality means this burr runs true, protecting your tools and your hands from excessive vibration fatigue. Whether you are smoothing out a root pass, chamfering edges for better penetration, or simply cleaning up a finished piece, the Walter SF-42 DC provides the aggressive cut and smooth finish that high-quality welding demands.

Additional Information
Brand:Walter Surface Technologies
Used To Grind:Steel or Stainless
Packaging Description:1 per each
Shape:Tree with Radius End (SF)
Cut Type:Double Cut
Head Diameter:1/8"
Length Of Cut:1/2"
Shank Diameter:1/8"
Material:Tungsten Carbide

INCLUDED

  • 1 x Walter Carbide Burr SF-42 DC (1/8" Shank)

APPLICATIONS

  • Enlarging holes and slots in metal
  • Deburring cut edges and machined parts
  • Removing welds and excess material
  • Fine finishing on stainless steel and steel
  • Contouring curved surfaces
  • Cleaning up casting flash

FAQ

Single cut burrs have one set of flutes and produce long chips, ideal for general purpose removal. Double cut burrs, like this Walter SF-42, have cross-cut flutes that break chips into small particles, allowing for faster removal, better control, and a smoother finish.

The Walter 01V022 is designed primarily for use on steel, stainless steel, and other hard ferrous metals. It can also be used on cast iron.

You will need a die grinder (pneumatic or electric) equipped with a 1/8-inch collet to securely hold the shank of this burr.

Carbide burrs generally perform best at high speeds. For a 1/8" diameter head, speeds between 40,000 and 60,000 RPM are often recommended to ensure efficient cutting and prevent tool chatter.

Concentricity ensures the burr spins perfectly true. This reduces vibration, which prevents premature wear on the die grinder bearings, reduces operator fatigue, and prevents chatter marks on the workpiece.

No, carbide burrs are designed for side-cutting and grinding, not for drilling holes from solid material. However, the SF-42 shape is excellent for enlarging existing holes.

Generally, Walter carbide burrs can be used dry. However, using a lubricant like Walter Coolcut can help extend tool life and improve the finish, especially on softer or heat-sensitive metals.

CATALOGUE & SPEC SHEETS

Spec Sheet

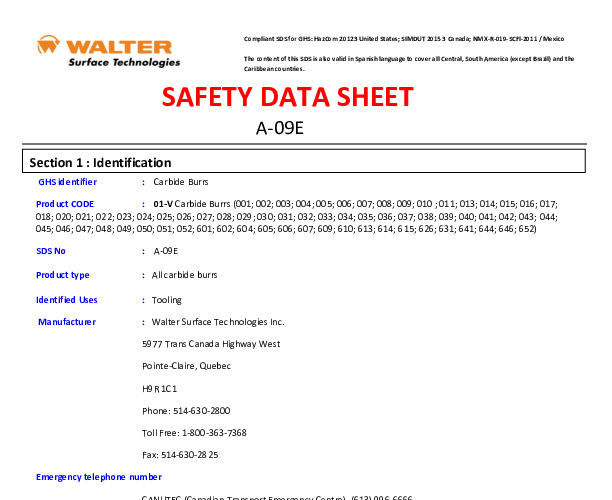

Safety Data Sheet
