Walter SF-6 Double Cut Tungsten Carbide Burr

$81.64/ea $71.72/1 per each only $71.72/eaSave 12%

Usually ships within 3-5 business days

OVERVIEW

The Heavy-Hitter for Weld Cleanup

When you are deep in a fabrication project and need to clean up a messy weld or open up a hole that is just a hair too small, the Walter 01V066 Carbide Burr is the tool you want loaded in your die grinder. This is not your average hardware store burr; it is a heavy-duty tungsten carbide beast built to eat through steel and stainless without bogging down or burning up. The SF-6 shape—that is the tree shape with the rounded nose—is absolutely perfect for getting into tight radiuses, blending out fillet welds, or contouring irregular shapes where a standard grinding wheel simply will not fit.

One of the biggest frustrations with standard burrs is the vibration. You know the feeling—your hands go numb after five minutes because the bit is wobbling at 20,000 RPM. Walter has solved that with precision balancing. This burr runs smooth and true, which means you have significantly more control over the cut and far less fatigue at the end of a long shift. The "Double Cut" pattern is a game-changer for shop efficiency. Instead of peeling off long, sharp strings of metal that whip around and slice your fingers, this burr chews the metal into tiny, manageable chips. This allows for aggressive stock removal while leaving a surprisingly smooth finish that often requires little to no secondary sanding or polishing.

This tool is a true workhorse for stainless steel applications. Stainless has a tendency to work-harden and chew up lesser tools, but the high-grade carbide used here stays sharp and cuts cool. Use it for beveling edges before welding to get that perfect penetration, cleaning up slag and spatter, or reaming out bolt holes for a perfect fit during assembly. It is tough, reliable, and designed for the professional welder who values their time and their tools. Pop this 01V066 into your collet, crank up the air, and watch the metal fly.

Additional Information
Brand:Walter Surface Technologies
Packaging Description:1 per each
Shape:SF-6, Tree with Radius End
Cut Type:Double Cut, DC
Material:Tungsten Carbide
Application Material:Stainless Steel, Steel

INCLUDED

  • 1 x Walter Carbide Burr SF-6 DC (01V066)
  • Protective storage casing

APPLICATIONS

  • Deburring and finishing stainless steel surfaces
  • Enlarging holes and shaping steel components
  • Weld preparation, leveling, and cleaning
  • Heavy-duty stock removal in hard-to-reach areas
  • Contouring and blending radii

FAQ

The SF-6 shape is a 'Tree with Radius End'. It is ideal for grinding contoured surfaces, rounding off edges, and working in tight, curved areas where a flat burr cannot reach.

Double Cut (DC) means the burr has flutes cut in two directions, creating a diamond pattern. This produces smaller chips (swarf) for a smoother finish and allows for faster material removal compared to single cut burrs.

Yes, the Walter 01V066 is made from high-quality tungsten carbide and is specifically designed to handle the hardness of stainless steel effectively.

You will need a die grinder (either pneumatic/air-powered or electric) with a collet size that matches the shank of the burr (typically 1/4 inch for this size class).

Concentricity ensures the burr spins perfectly true. This reduces vibration, prevents 'chatter' marks on the workpiece, reduces operator fatigue, and prevents premature wear on the die grinder bearings.

While it can cut aluminum, Double Cut burrs can sometimes clog (load up) with soft metals like aluminum. An 'Aluminum Cut' or single cut burr is generally preferred for soft non-ferrous metals to prevent clogging.

Always wear impact-resistant eye protection (safety glasses and a face shield), hearing protection, and gloves. Long sleeves are recommended to protect against hot metal chips.

CATALOGUE & SPEC SHEETS

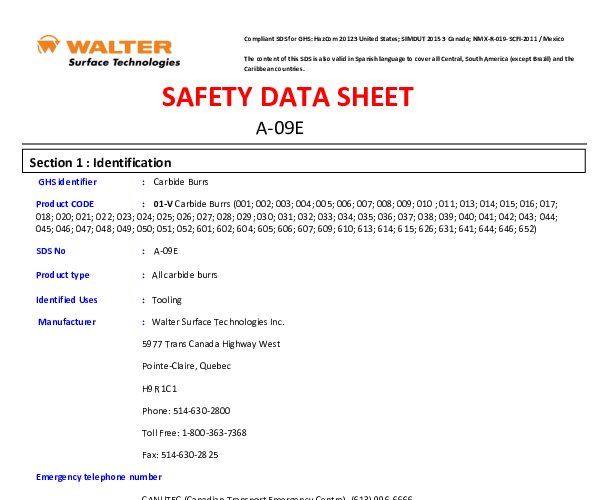

Safety Data Sheet
