01V030 - Walter SH-5 Double Cut Carbide Burr - Flame Shape Rotary File

Packaging: 1 per each
$98.58/ea $86.58/1 per each only $86.58/eaSave 12%

Usually ships within 3-5 business days

OVERVIEW

Smooth Control for Professional Welders

When you are prepping a joint or cleaning up a finished weld, control is everything. The Walter SH-5 Double Cut Carbide Burr is built to give welders the smooth handling and aggressive bite they need to get the job done right. This "Flame" shaped burr is a go-to accessory for your die grinder, perfect for shaping metal, cleaning up root passes, or blending contours on curved surfaces. The SH-5 profile combines a rounded nose with a tapered body, allowing you to access tight corners and follow the natural flow of the metal without digging in or gouging the surface.

The "Double Cut" design is a game-changer for anyone used to fighting with single-cut burrs. By incorporating a diamond-cut pattern, this tool shreds metal into tiny chips rather than long, sharp slivers. This means the burr stays clean and doesn't clog up, keeping you grinding without interruption. It also provides a much smoother action; the tool doesn't pull or "walk" across the workpiece, giving you the stability to perform delicate finishing work or aggressive stock removal with equal ease. This level of control is essential when working on expensive stainless steel parts or critical structural welds where surface integrity is paramount.

Walter has manufactured these burrs to exacting standards, ensuring they run true and vibration-free. For a welder, this means less hand fatigue at the end of the day and a lower risk of developing repetitive strain injuries. The tungsten carbide construction is incredibly hard, maintaining its sharp cutting edges long after standard high-speed steel bits would have dulled. Whether you are deburring a fresh cut, enlarging a bolt hole, or blending a repair weld, the Walter SH-5 Double Cut Carbide Burr delivers the professional results you expect from a top-tier brand. Add this versatile tool to your kit and experience the difference that quality abrasives make in your daily workflow.

Additional Information
Brand:Walter Surface Technologies
Used To Grind:Steel or Stainless
Packaging Description:1 per each
Shape:Flame (SH-5)
Cut Type:Double Cut
Material:Tungsten Carbide
Application:Deburring, Finishing, Enlarging

INCLUDED

  • 1x Walter Carbide Burr SH-5 DC (Flame Shape, Double Cut)

APPLICATIONS

  • Deburring cut edges on steel and stainless steel
  • Enlarging holes and slots
  • Smoothing and blending weld seams
  • Contouring curved surfaces and radii
  • Fine finishing and surface preparation
  • Removal of heavy stock in hard-to-reach areas

FAQ

The SH-5 is a 'Flame' shape, which is excellent for contouring, rounding off edges, and working on curved surfaces where a cylindrical burr might be too flat.

Double Cut refers to the flute pattern on the burr. It has cross-cut teeth that create smaller chips, resulting in a smoother finish and easier control compared to single cut burrs.

Yes, this tungsten carbide burr is specifically designed for use on hard metals, including stainless steel and high-tensile alloys.

This burr is designed for use with a pneumatic or electric die grinder that accepts the standard shank size (typically 1/4 inch for this class of burr).

High concentricity means the burr spins perfectly true. This reduces vibration (chatter), prevents the tool from bouncing on the workpiece, and extends the life of both the burr and the grinder.

While it can cut aluminum, double cut burrs may clog with soft, non-ferrous metals. An 'Aluminum Cut' (single wide flute) burr is generally recommended for aluminum to prevent loading.

Maintain the correct RPM for the burr diameter, apply consistent light pressure (let the tool do the work), and ensure the burr is inserted fully into the collet to prevent shank bending.

CATALOGUE & SPEC SHEETS

Spec Sheet

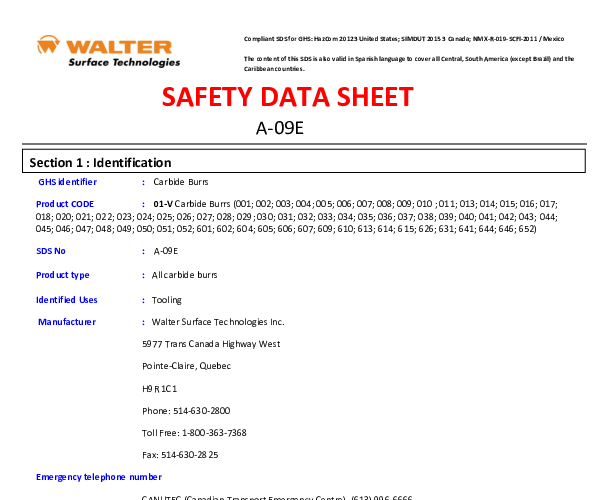

Safety Data Sheet
