01V032 - Walter SL-4 Double Cut Tungsten Carbide Burr

Packaging: 1 per each
$98.58/ea $86.58/1 per each only $86.58/eaSave 12%

Usually ships within 3-5 business days

OVERVIEW

Heavy-Duty Grinding and Deburring Power

When it comes to aggressive metal removal and tough fabrication challenges, the Walter Carbide Burr SL-4 DC (01V032) is the workhorse your shop needs. Built to withstand the rigors of daily industrial use, this tungsten carbide burr is engineered to cut faster and last longer than conventional rotary files. For welders and fabricators, time is money, and the ability to quickly prep a joint, clean up a messy weld, or enlarge a bolt hole without constantly changing out worn bits is a massive advantage. Walter Surface Technologies has developed this tool to deliver maximum performance on the toughest metals, including stainless steel and high-tensile alloys.

The SL-4 shape (Taper with Radius End) is incredibly useful for welding applications. Its conical profile allows you to dig into V-grooves and tight angles, while the radiused tip prevents gouging when working at the bottom of a hole or a concave surface. This makes it the perfect tool for prepping root passes or cleaning out porosity in a weld. The Double Cut (DC) flute design is equally important for productivity. By utilizing cross-cut flutes, the burr effectively shreds metal into tiny chips rather than long, dangerous slivers. This chip-breaking action prevents the tool from loading up, keeping the cutting edges exposed and active for rapid stock removal.

Operator comfort and safety are also enhanced by the superior balance of Walter burrs. Poorly balanced tools cause chatter and vibration that can lead to hand fatigue and potential injury over long shifts. The 01V032 runs true, allowing for smooth operation even at high RPMs typical of pneumatic die grinders. This smoothness results in a better surface finish, often reducing the need for secondary sanding or polishing steps. Whether you are working in a shipyard, a structural steel shop, or a custom fab garage, this burr provides the reliability and cutting aggression required to get the job done right.

Equip your tool crib with the Walter 01V032 and experience the difference that premium carbide and expert geometry make. From heavy stock removal to fine finishing in tight corners, this burr is designed to exceed the expectations of professional welders and metalworkers.

Additional Information
Brand:Walter Surface Technologies
Used To Grind:Steel, Stainless
Packaging Description:1 per each
Shape:SL-4 (Taper with Radius End)
Cut Type:Double Cut
Material:Tungsten Carbide
Application:Deburring, Enlarging, Finishing

INCLUDED

  • 1 x Walter Carbide Burr SL-4 DC (01V032)

APPLICATIONS

  • Deburring machined parts and castings
  • Enlarging holes and slots
  • Smoothing and blending weld seams
  • Surface finishing in confined areas
  • Working on stainless steel, steel, and high-temperature alloys
  • Mold and die preparation

FAQ

SL-4 refers to the specific shape and size standard of the burr. It indicates a Taper with Radius End shape (often called a Cone with Ball Nose), which is ideal for grinding in tight corners, contours, and enlarging holes.

A Double Cut or alternate diamond pattern features cross-cut flutes that break chips into smaller pieces. This allows for faster material removal, a smoother finish, and better operator control by reducing the tendency of the tool to 'climb' or pull across the workpiece.

Yes, the Walter 01V032 is manufactured from premium tungsten carbide and is specifically engineered to be effective on tough materials like stainless steel, as well as standard steel and other ferrous metals.

This burr is designed for use with high-speed rotary tools, such as pneumatic or electric die grinders. Ensure your tool's collet matches the shank size of the burr.

Perfect concentricity ensures the burr spins true without wobbling. This reduces vibration, prevents premature wear on both the tool and the grinder bearings, and provides a consistent surface finish.

While it can cut aluminum, Double Cut burrs may load up (clog) with soft, non-ferrous metals. For aluminum, a Single Cut or specifically designed Aluminum Cut burr is generally recommended to prevent clogging.

The radius (rounded) end allows the operator to grind the bottom of blind holes or concave surfaces without the risk of the sharp tip digging in or gouging the material, ensuring a smooth transition.

The cutting head is made from high-grade Tungsten Carbide, which is significantly harder and more heat-resistant than High-Speed Steel (HSS), allowing for longer life and faster cutting speeds.

CATALOGUE & SPEC SHEETS

Spec Sheet

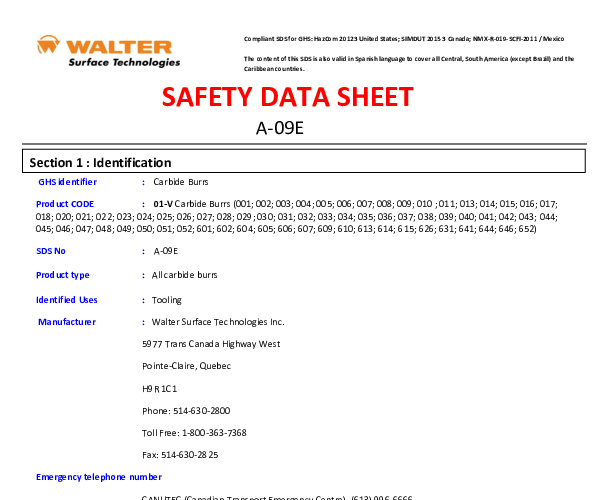

Safety Data Sheet
