01V050 - Walter SM-4 Double Cut Tungsten Carbide Burr

Packaging: 1 per each
$65.08/ea $57.17/1 per each only $57.17/eaSave 12%

Usually ships within 3-5 business days

OVERVIEW

Heavy-Duty Deburring and Shaping Power

For welders and fabricators, a reliable carbide burr is as essential as the torch itself. The Walter 01V050 SM-4 Double Cut Carbide Burr is built to handle the tough daily grind of the welding shop. When prepping joints or cleaning up after a weld, you need a tool that bites into the metal without bogging down or bouncing. Walter's premium tungsten carbide construction ensures this burr stays sharp, cutting through mild steel, stainless steel, and other ferrous metals with aggressive efficiency.

The SM-4 Cone shape is a versatile profile for the die grinder, allowing you to get inside piping, bevel edges, or open up holes that are slightly out of alignment. The Double Cut geometry is a favorite among welders because it offers superior control. The cross-flutes reduce the pulling action common with single-cut burrs, making the tool easier to stabilize. This design also rapidly clears chips, preventing the burr from loading up and overheating during extended use.

Stop struggling with dull bits that vibrate your hands numb. Upgrade to Walter's precision-balanced carbide burrs for a smoother run and a cleaner cut. Ideal for heavy stock removal, deburring cut edges, and blending surfaces, this tool is a workhorse for any metal fabrication project. Welders Supply Company recommends this burr for its longevity and the high-quality finish it leaves behind, reducing the need for secondary sanding steps.

Additional Information
Brand:Walter Surface Technologies
Used To Grind:Steel or Stainless
Product Type:Carbide Burr
Shape:SM-4 (Cone)
Cut Type:Double Cut
Material:Tungsten Carbide
Packaging Description:1 per each

INCLUDED

  • 1x Walter Carbide Burr SM-4 Double Cut

APPLICATIONS

  • Deburring cut metal edges
  • Enlarging holes and slots
  • Cleaning up weld seams
  • Surface finishing on stainless steel
  • Mold and die preparation
  • Working in confined angles (Cone shape)

FAQ

SM-4 refers to the standard industry shape code. The 'S' indicates a shape (often cone-like), and the 'M' specifically denotes a Cone shape. The number '4' indicates the specific dimensions of that shape.

A Single Cut burr has flutes running in one direction and is good for general removal. A Double Cut (DC) burr has cross-flutes that break chips into smaller pieces, allowing for faster removal, a smoother finish, and better operator control.

While it can cut aluminum, Double Cut burrs may clog (load up) with soft non-ferrous metals. For aluminum, an 'Aluminum Cut' or 'Alu-Cut' burr with wider flute spacing is recommended to prevent clogging.

Carbide burrs generally require high speeds to work effectively. For a standard size burr, speeds between 15,000 and 25,000 RPM are typical. Always refer to the manufacturer's specific speed chart for the diameter of the burr.

Yes, provided your die grinder has a collet that matches the shank size of the burr (typically 1/4 inch for this class of industrial burr).

This Double Cut tungsten carbide burr is best suited for ferrous metals such as steel, stainless steel, cast iron, and high-nickel alloys.

CATALOGUE & SPEC SHEETS

Spec Sheet

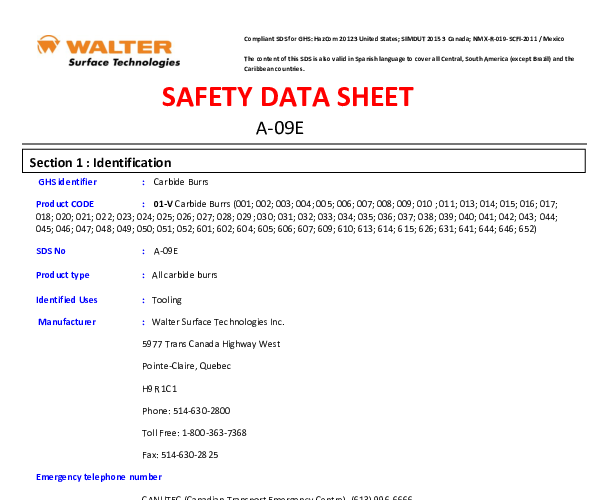

Safety Data Sheet
