AC309 - Smith Airline AC309 90-Degree Cutting Attachment for AW1A Handles

Smith AC309 Technical Overview

The Smith AC309 Airline Standard Duty Cutting Attachment is a high-performance oxy-fuel component engineered for integration with Smith AW1A and AW10A torch handles. It provides a cutting capacity of up to 3 inches (76 mm) of steel, making it suitable for a wide range of industrial maintenance, repair, and fabrication tasks. The unit features a 90-degree head angle, the industry standard for most manual cutting operations, offering an optimal balance of visibility and ergonomics.

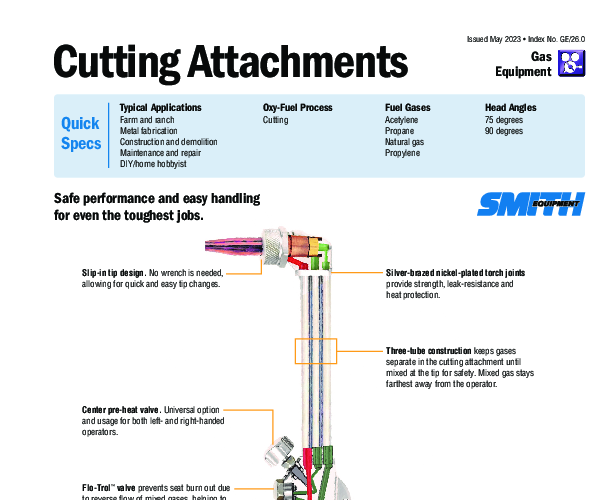

Safety-First Three-Tube Construction

Safety is the primary design philosophy behind the AC309. It utilizes a three-tube construction method, which physically separates the oxygen and fuel gases within the attachment. The gases do not mix until they reach the tip. This design significantly mitigates the risk of flashback and eliminates the possibility of mixing tube burnout, a common failure point in tube-mix style torches. By keeping the mixed gas farthest away from the operator, the AC309 provides an added layer of protection during operation.

Operational Precision

Control is critical for quality cuts, and the AC309 is equipped with an ease-on oxygen cutting valve. This valve allows for the gradual introduction of cutting oxygen, enabling smooth piercing and keyhole-free starts. This feature is particularly beneficial when starting cuts in the middle of a plate or when precision is required to minimize slag blowback. The attachment connects to the torch handle with a secure, leak-proof coupling that maintains alignment and gas flow integrity.

Specifications and Compatibility

The AC309 is strictly compatible with Smith MC Series cutting tips. These tips feature a slip-in design with a resilient soft seat, known as Graf-Tite, which ensures a perfect seal without the need for high torque. The attachment is 8.5 inches in length and is constructed with silver-brazed joints for maximum strength and leak resistance. The nickel-plated finish aids in heat deflection, protecting internal components from thermal stress. It is backed by Miller | Smith's lifetime warranty, underscoring the manufacturer's confidence in the tool's build quality and reliability.

Key Features Summary

• Capacity: Cuts up to 3" (76mm) steel.
• Construction: 3-tube, silver-brazed, nickel-plated.
• Compatibility: Fits AW1A and AW10A handles.
• Tip Style: Slip-in MC Series (wrench-free).
• Gas Type: Universal (Acetylene, Propane, etc., depending on tip).
