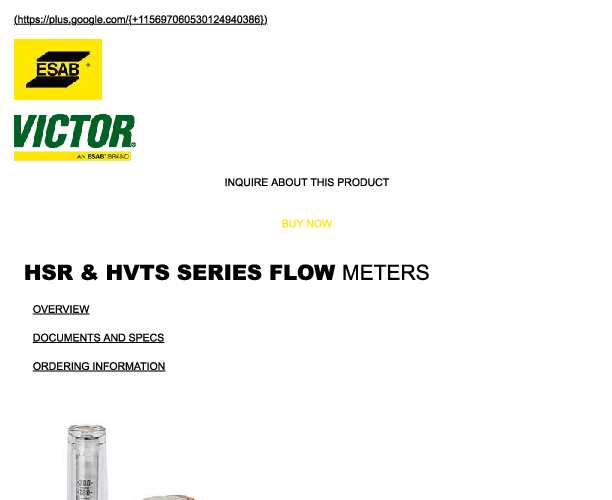

0781-3880 - Victor HSR 1470-680 Inert Gas Flow Meter Regulator, CGA 680, 50-140 SCFH

Technical Specifications and Performance Analysis

The Victor 0781-3880 (Model HSR 1470-680) is a single-stage flow meter regulator designed specifically for inert gas applications requiring a CGA 680 inlet connection. This unit is engineered to handle high-pressure cylinders with a maximum inlet pressure of 3000 PSIG. The core of its operation relies on a stem-type seat mechanism, which provides reliable closure and flow regulation. This mechanism is complemented by a fabric-reinforced neoprene diaphragm. The choice of neoprene offers excellent sensitivity to pressure changes, allowing the regulator to maintain a steady flow rate even as the cylinder pressure decays, a critical factor in maintaining weld consistency throughout the life of a cylinder.

The regulator is preset at the factory to a delivery pressure of 25 PSIG. This low-pressure preset is technically significant as it serves to limit the surge of gas at the moment of arc initiation. High surge rates can cause turbulence in the shielding gas envelope, leading to atmospheric contamination and weld defects. By capping the static pressure at 25 PSIG, the HSR 1470-680 ensures a smooth transition from static to dynamic flow. The flow meter itself is calibrated for a range of 50-140 SCFH (Standard Cubic Feet per Hour), providing a broad operating window for various shielding gas requirements, from standard MIG welding to high-flow applications.

Material construction is a focal point of the HSR series. The body is machined from forged brass, providing high tensile strength and resistance to mechanical impact. The inlet assembly features a bronze sintered filter. This filter is crucial for arresting particulate matter typically found in industrial gas cylinders, preventing it from damaging the regulator seat or clogging the flow meter tube. The unit also incorporates an external self-reseating relief valve, a safety device designed to vent excess pressure in the event of a seat failure, thereby protecting the downstream equipment and the operator.

Installation and compatibility are defined by the CGA 680 connection, which is standard for certain high-pressure inert gas cylinders (often Argon or Nitrogen mixtures). Technicians should verify cylinder valve compatibility prior to installation. The unit's compact dimensions (7" x 6-1/4" x 4-1/4") allow for integration into systems where clearance is limited. With its combination of precise flow metering, surge limitation, and robust brass construction, the Victor 0781-3880 represents a high-standard component for industrial gas management systems.
