3000187 - Harris 301 Series Inert Gas Regulator, CGA 580, 0-100 PSIG

Packaging: 1 per each
$233.11/ea $157.03/1 per each only $157.03/eaSave 33%

In stock

OVERVIEW

Reliable Inert Gas Control with Harris 301 Series

When you are out in the field performing HVAC pressure tests or purging lines with Nitrogen, you need a regulator that is both lightweight and tough enough to handle the job. The Harris 301-100-580 Inert Gas Regulator is built exactly for these scenarios. Made in the USA, this compact regulator doesn't cut corners on quality. It features a rugged brass body that resists corrosion and wear, ensuring it stays in your toolkit for years to come. In fact, Harris is so confident in its construction that they back it with a 7-year warranty.

Precision is critical when testing systems for leaks or maintaining purge pressure. The Harris 301 delivers accurate pressure regulation up to 100 PSIG, easily adjustable with a smooth brass "T" handle. The dual 2-inch steel gauges are easy to read, letting you monitor your tank level and output pressure at a glance. Whether you are using Nitrogen, Argon, or Helium, the CGA 580 connection ensures a secure fit to your gas supply.

One of the biggest frustrations with regulators is seat failure due to dirt or debris. Harris solves this with a smart, one-piece encapsulated seat design that includes an internal filter. This protects the critical Teflon seat from contaminants, significantly extending the life of the regulator and reducing maintenance headaches. For welders and technicians looking for a dependable, no-nonsense regulator for inert gases, the Harris 301 is a proven choice.

Additional Information
Brand:Harris
Cga Fitting:CGA 580
Item:Regulator
Max Outlet:100 PSI
Used On Which Gas:Argon or Nitrogen
Packaging Description:1-per-ea
Gas Type:Nitrogen, Argon, Helium
Connection Type (CGA):CGA 580
Flow Range:0-100 PSIG
Inlet/Outlet Pressure:Max Outlet: 100 PSIG
Gauge Type:2" Steel Dual Scale
Body Material:Brass
Warranty:7 Years
Country Of Manufacture:USA
Max Inlet:N\A
Used On Which Gas?:Nitrogen

INCLUDED

  • Harris Model 301-100-580 Regulator
  • Instruction Manual

APPLICATIONS

  • HVAC System Purging (Nitrogen)
  • Pressure Testing pipelines and vessels
  • Inert Gas Blanketing
  • Light to Medium Duty Fabrication
  • Argon and Helium shielding for specialized welding setups
  • Laboratory and Research applications requiring inert gas control

FAQ

This regulator is designed for inert gases including Nitrogen, Argon, and Helium, utilizing a CGA 580 inlet connection.

The Model 301-100-580 provides accurate pressure regulation up to 100 PSIG.

Yes, Harris provides a 7-year warranty on this regulator, covering manufacturing defects.

The regulator features a 9/16" - 18 outlet connection, which is standard for many inert gas hoses.

This is a single-stage regulator, making it compact and ideal for applications where inlet pressure does not fluctuate drastically or where extreme precision of a two-stage is not required.

Yes, this regulator is excellent for HVAC applications such as nitrogen purging and pressure testing lines up to 100 PSI.

The body is machined from solid brass, and the bonnet is brass-painted zinc, providing durability and corrosion resistance.

The Harris Model 301-100-580 is made in the USA.

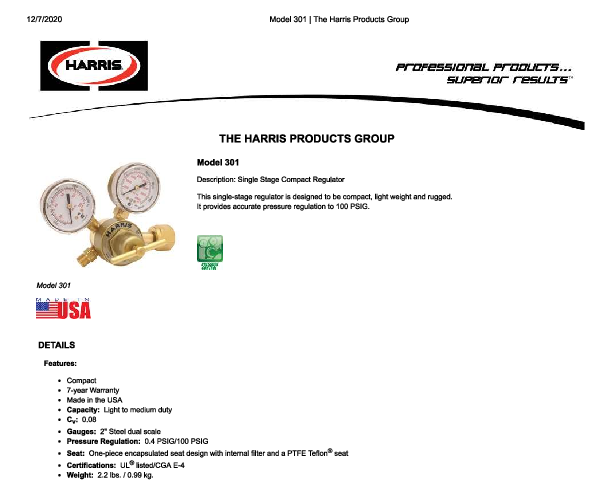

CATALOGUE & SPEC SHEETS

Spec Sheet
