3000165 - Harris Model 301-15-200 MC Acetylene Regulator CGA 200

Packaging: 1 per each
$233.10/ea $153.20/1 per each only $153.20/eaSave 34%

Usually ships within 3-5 business days

OVERVIEW

The Perfect Companion for Your Portable Torch Kit

Tired of lugging around heavy equipment for small jobs? The Harris Model 301-15-200 MC Acetylene Regulator is your solution for portable brazing and welding. Designed specifically for the compact "MC" acetylene tanks commonly used in HVAC and plumbing, this regulator proves that good things come in small packages. It’s lightweight enough to keep your tote easy to carry, but rugged enough to handle the bumps and scrapes of the daily grind.

Don't let the size fool you; this is a serious tool. The solid brass construction means no cheap plastic parts to crack or break. The easy-to-turn brass "T" screw handle lets you dial in your flame with precision, giving you the exact pressure you need for sensitive brazing work or light cutting. The 2-inch dual scale gauges are easy to read, even in dim basements or crawl spaces, so you always know how much gas you have left before you're stuck empty-handed.

Reliability is key when you're on a service call. That's why Harris equipped this model with their famous encapsulated seat and internal filter. This feature stops dirt and grit from ruining the seat, preventing dangerous creep and leaks. Plus, with a massive 7-year warranty and "Made in the USA" quality, you can trust this regulator to perform year after year. Upgrade your portable kit with the Harris 301-15-200 and experience the difference professional gear makes.

Additional Information
Brand:Harris
Cga Fitting:CGA 200
Used On Which Gas:Acetylene MC Tank Only
Max Outlet:15 PSI
Item:Regulator
Packaging Description:1 per each
Gas Type:Acetylene
Connection Type (CGA):CGA 200
Outlet Pressure:0-15 PSIG
Gauge Type:2" Steel Dual Scale
Body Material:Brass
Warranty:7 Years
Country Of Manufacture:USA
Applications:Light to Medium Duty, HVAC, Plumbing
Max Inlet:300 PSI
Used On Which Gas?:Acetylene

INCLUDED

  • Harris Model 301-15-200 MC Acetylene Regulator
  • Instruction Manual

APPLICATIONS

  • HVAC Installation and Repair
  • Plumbing and Pipe Brazing
  • Light Duty Welding and Cutting
  • Maintenance and Repair Operations (MRO)
  • Portable Oxy-Acetylene Kits

FAQ

It features a CGA 200 inlet, designed for "MC" acetylene cylinders (10 cu ft capacity).

No, B-tanks require a CGA 520 connection. This regulator is strictly for MC tanks with CGA 200 valves.

The regulator is designed to deliver up to 15 PSIG, which is the safety limit for acetylene gas.

It is designed for light to medium duty applications. For heavy cutting, a larger regulator and tank setup is recommended.

It uses a PTFE Teflon® seat within a one-piece encapsulated design for superior durability.

Harris covers this regulator with a 7-year manufacturer warranty.

No, flash arrestors are sold separately and are highly recommended for safety.

Yes, it is ideal for HVAC and plumbing brazing applications due to its portability and precision.

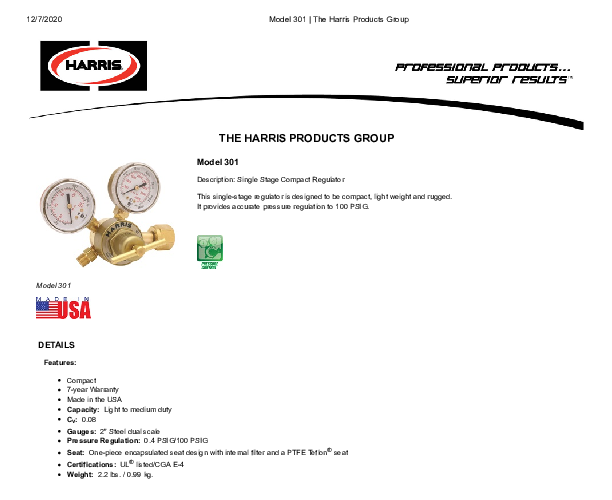

CATALOGUE & SPEC SHEETS

Spec Sheet
