K2950-1 - Lincoln Magnum PRO Curve 200 MIG Gun, 200A, 10ft Cable

Packaging: 1 Per Ea
$1,043.08/EA $671.49/1 Per Ea only $671.49/EASave 36%

Usually ships within 3-5 business days

OVERVIEW

Experience Superior Comfort with the Magnum PRO Curve 200

Welding is a demanding job, and the equipment you use shouldn't add to the physical toll. The Lincoln Electric Magnum PRO Curve 200 MIG Gun is designed with the operator in mind, combining industrial durability with exceptional comfort. The signature Curve handle is lightweight and perfectly balanced, fitting naturally in your hand to reduce wrist strain and fatigue. Whether you are working on general fabrication, maintenance, or structural welding, this gun allows you to weld longer and more precisely without the discomfort associated with heavier, unbalanced torches.

Built to Last, Built to Perform

Downtime costs money, and frequent contact tip changes are a major productivity killer. Lincoln Electric solves this with their Copper Plus contact tip technology. By using more copper and a larger diameter, these tips dissipate heat faster than the competition, staying cooler and lasting longer. This means you spend less time swapping parts and more time laying beads. The K2950-1 is rated for 200 amps at a 60% duty cycle, making it a robust choice for a wide range of applications, from construction sites to repair shops.

Versatility for Every Job

Tight corners and awkward angles are no match for the Magnum PRO Curve 200. The rotating gun tube allows you to position the nozzle exactly where it needs to be without contorting your wrist. Plus, the included gun hanger clip keeps your workspace organized when the torch is not in use. This package comes ready to weld with a 10-foot cable and a set of standard consumables, including a .045" contact tip, so you can get straight to work. Upgrade your welding setup with a gun that works as hard as you do.

Additional Information
Brand:Lincoln Electric
Amperage:200
Cable Length:10 ft
Duty Cycle:60%, 60% @ 200A (CO2), 60% @ 150A (Mixed Gas)
Cooling Method:Air Cooled
Wire Type:Solid, Flux-Cored
Torch Type:Semi-Automatic MIG Gun
Amperage Rating:200 A
Wire Diameter Range:0.025 in, 3/64 in
Rear Connection:Lincoln Style Connector
Consumable Compatibility:Magnum PRO
Packaging Description:1 Per Ea

INCLUDED

  • Magnum PRO Curve 200 Gun with 10 ft (3.0 m) Cable
  • Contact Tip: KP2744-045 (0.045 in / 1.2 mm)
  • Nozzle: KP2742-1-62R (Recess, 5/8 in ID, Thread-On)
  • Diffuser: KP2746-1 (Thread-On)
  • Gun Connector: K466-10
  • Gun Liner: KP42-4045-15

APPLICATIONS

  • General Fabrication
  • Maintenance and Repair
  • Construction and Field Erection
  • Structural Welding
  • Structural Fabrication

FAQ

The Magnum PRO Curve 200 is rated at 200 Amps at 60% duty cycle using CO2 gas, and 150 Amps at 60% duty cycle using mixed gases.

This model comes with a 10-foot (3.0 meter) cable assembly.

It uses the Magnum PRO series consumables, specifically featuring Copper Plus contact tips for extended life.

The gun is designed to feed wire sizes ranging from 0.025 inches to 3/64 inches (0.6 mm to 1.2 mm).

The gun features a rotating gun tube, which allows for better positioning in tight spaces and reduces operator fatigue.

It includes a Lincoln-style gun connector (K466-10).

Yes, the gun ships with a liner (KP42-4045-15) pre-installed or in the box.

It is suitable for MIG, Pulsed MIG, and Flux-Cored arc welding processes.

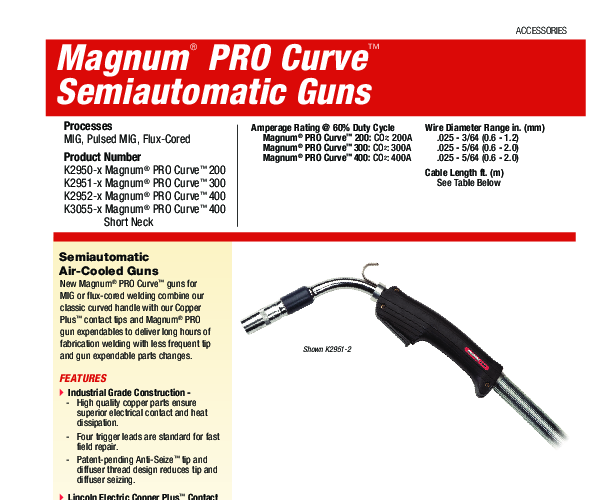

CATALOGUE & SPEC SHEETS

Spec Sheet
