K2536-5 - Lincoln Power Feed 25M Portable Wire Feeder, Plastic Case

Packaging: 1 Per Ea
$14,185.18/EA $9,565.30/1 Per Ea only $9,565.30/EASave 33%

Usually ships within 3-5 business days

OVERVIEW

Rugged Reliability for Field Welding

Take your welding capabilities anywhere with the Lincoln Electric Power Feed® 25M Wire Feeder. This compact powerhouse is built for the welder who needs mobility without sacrificing performance. Whether you are up on a scaffold, down in a trench, or deep inside a ship's hull, the Power Feed 25M delivers the consistent wire feeding you need to get the job done right. The K2536-5 model features a tough, impact-resistant plastic case that shrugs off the bumps and drops typical of active construction sites, while its compact footprint allows it to slide easily through small manholes and tight openings.

The Power Feed 25M is not just tough; it is incredibly smart. It puts full control of the welding process right at your fingertips. With the integrated memory buttons, you can save your favorite settings and switch between them instantly, saving you trips back to the power source. This is especially useful when switching between different weld positions or material thicknesses. The feeder excels in aluminum applications thanks to its built-in push-pull functionality, which ensures smooth, trouble-free feeding of difficult aluminum wire. The MAXTRAC® drive system provides a solid grip on the wire, preventing slipping and ensuring a stable arc.

Lincoln Electric has also included thoughtful features to make your workday easier. Working in low light? The internal high-intensity LEDs light up the wire drive mechanism so you can change spools or adjust rolls with ease. Worried about humidity ruining your wire? The internal heater keeps the consumable compartment warm and dry, protecting your wire from moisture and ensuring high-quality welds every time. Compatible with a wide range of Lincoln Power Wave power sources, the Power Feed 25M is the ultimate tool for professional fabricators who demand versatility, durability, and precision in a portable package.

Additional Information
Brand:Lincoln Electric
Product Type:Wire Feeder
Input Power:40 VDC
Packaging Description:1 Per Ea
Process Type:MIG (GMAW), Pulsed MIG (GMAW-P), STT (Surface Tension Transfer), Flux-Cored (FCAW)
Wire Feed Speed Range:50 - 800 IPM
Wire Diameter Range (Solid):0.023" - 1/16"
Wire Diameter Range (Cored):0.030" - 5/64"
Dimensions:14.5 in x 8.5 in x 23.5 in
Weight:35 lb
Communication Protocol:ArcLink
Case Material:Impact-Resistant Plastic

INCLUDED

  • Power Feed 25M Wire Feeder (Plastic Case)
  • Gas Solenoid
  • Gun Bushing
  • Dual Procedure and Memory Controls
  • Electrode Pigtail

APPLICATIONS

  • Construction and Field Erection
  • Shipbuilding and Marine Fabrication
  • Cross Country Pipeline
  • Petrochemical and Refinery Maintenance
  • Automotive Manufacturing
  • Heavy Fabrication
  • Aluminum Fabrication
  • Pressure Vessel Manufacturing
  • Railroad Maintenance
  • Offshore Platform Repair

FAQ

The Power Feed 25M utilizes ArcLink® communication and is compatible with Lincoln Electric Power Wave® power sources, including the Power Wave 355M, 455M, S350, R350, and 655R.

Yes, the Power Feed 25M is designed with push-pull capability as a standard feature, making it excellent for feeding aluminum wire when paired with a compatible push-pull gun.

The feeder requires 40 VDC input power, which is supplied through the ArcLink control cable from the welding power source.

The internal heating element helps maintain control of humidity within the enclosed case, keeping the welding wire warm and dry to prevent moisture absorption and subsequent weld defects.

Yes, the compact case design allows the Power Feed 25M to fit through a 16-inch (406 mm) diameter circular opening or a 12 x 18-inch (305 x 457 mm) elliptical opening.

The wire feed speed is adjustable from 50 to 800 inches per minute (1.3 to 20.3 meters per minute).

Yes, the feeder features Dual Procedure and Memory buttons that allow operators to set and recall up to 8 specific welding procedures and switch between A and B schedules on the fly.

It accommodates solid wire sizes from .023 to 1/16 inch (0.6-1.6 mm) and cored wire sizes from .030 to 5/64 inch (0.8-2.0 mm).

CATALOGUE & SPEC SHEETS

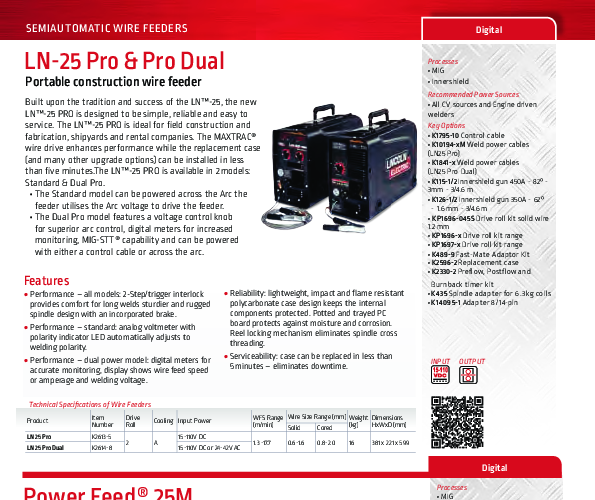

Spec Sheet
