K52008-1010 - Lincoln Electric Seam Tracker 250 10x10 System with APC Control

Precision Automation for Heavy Fabrication

Take the strain out of long, repetitive welds with the Lincoln Electric Seam Tracker™ 250 10 x 10 System. If you are welding large beams, tanks, or pressure vessels, you know that maintaining perfect torch alignment over several feet—or meters—is physically demanding and prone to human error. This tactile seam tracking system acts as a steady hand that never tires, using a physical probe to trace the weld joint and automatically adjust the torch position vertically and horizontally. The result is a flawless weld bead, reduced operator fatigue, and a massive boost in productivity.

Everything You Need in One Package

The K52008-1010 is a "One-Pak" solution, meaning you don't have to hunt down individual cables or brackets. It comes complete with the heavy-duty CS250 cross slide, which offers 10 inches of travel in both vertical and horizontal directions. This 10x10 capacity is ideal for handling significant variations in fit-up or thermal distortion that occur during high-heat processes like Submerged Arc Welding. The package also includes the Advanced Programming Control (APC), which puts powerful automation logic at your fingertips without requiring a degree in robotics.

Smart Control for Tough Jobs

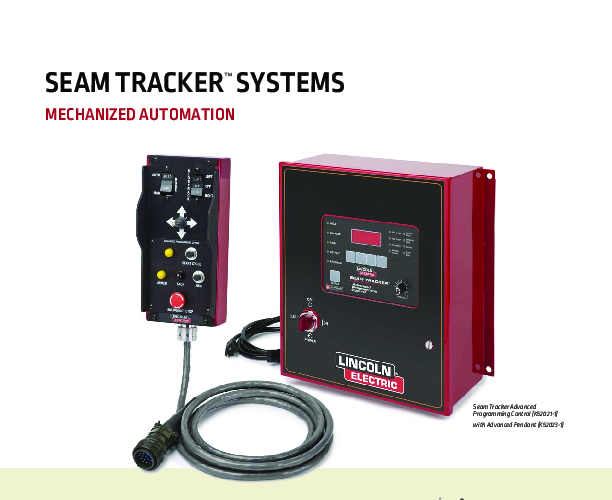

The APC controller isn't just a switch box; it's a smart interface that lets you save and recall up to 19 different weld schedules. This is perfect for shops that run multiple jobs or need to switch between longitudinal and circumferential welds quickly. You can set up time-based or position-based cycles to match your specific travel equipment. The system works with MIG, TIG, Flux-Cored, and Sub-Arc processes, making it a versatile asset for any heavy fabrication floor. By keeping the arc in the joint automatically, your operators can focus on monitoring the puddle and overall process quality rather than fighting with manual slides.

Built for the Shop Floor

Durability is key in welding automation. The Seam Tracker 250 is built to withstand the heat, dust, and electrical noise of industrial environments. The tactile probe is sensitive enough to detect small joint deviations but rugged enough to ride along rough plate edges. With the included 5-axis probe bracket and mounting kit, setup is straightforward, allowing you to get up and running quickly. Invest in consistency and quality with a system that pays for itself by virtually eliminating off-seam weld defects.
