K52004-0303 - Lincoln Seam Tracker 40 Standard System 3x3 Stroke One-Pak

Automate Your Welding Precision

Take the guesswork out of long, repetitive welds with the Lincoln Electric Seam Tracker™ 40 Standard System One-Pak. If you are welding large vessels, beams, or tanks, keeping the torch perfectly aligned with the seam for hours on end is physically demanding and prone to error. This tactile seam tracking system acts as your steady hand, physically tracing the joint with a durable probe tip and automatically adjusting the torch position in real-time. The result is a consistent weld bead, deeper penetration assurance, and significantly less rework caused by wandering arcs.

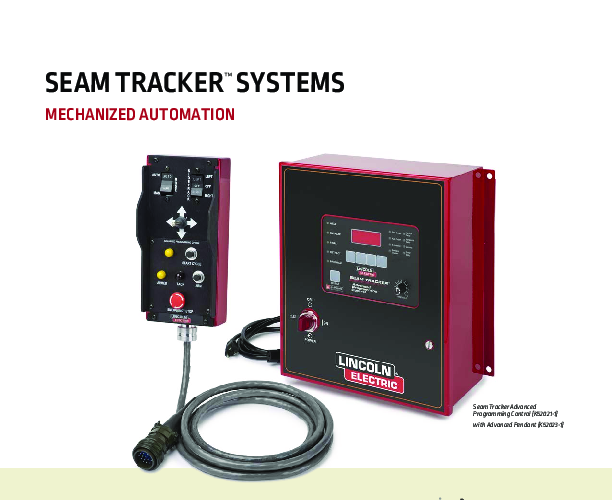

This "One-Pak" kit comes with everything you need to get up and running. It features the rugged CS40 Cross Slide, which gives you 3 inches of travel in both vertical and horizontal directions—plenty of room to compensate for part fit-up issues or thermal distortion. The system is rated to hold up to 40 lbs, meaning it can easily handle heavy Submerged Arc guns or dual-wire setups. You also get the Standard Control box and a handheld pendant, allowing you to make adjustments from a safe distance while the arc is on. The controls are designed to be user-friendly, so you don't need to be a computer programmer to set it up; simply align the sensor, set your parameters, and let the system do the tracking.

Ideal for shops handling heavy fabrication, shipbuilding, or pipe welding, the Seam Tracker™ 40 works with all major welding processes like MIG, Flux-Cored, TIG, and Sub-Arc. By maintaining the optimal stick-out and work angle automatically, it ensures your weld quality stays top-notch from the start of the shift to the end. The kit includes all necessary mounting brackets and cables, so you can mount it to your column and boom, side beam carriage, or custom fixture and start welding smarter, not harder.
