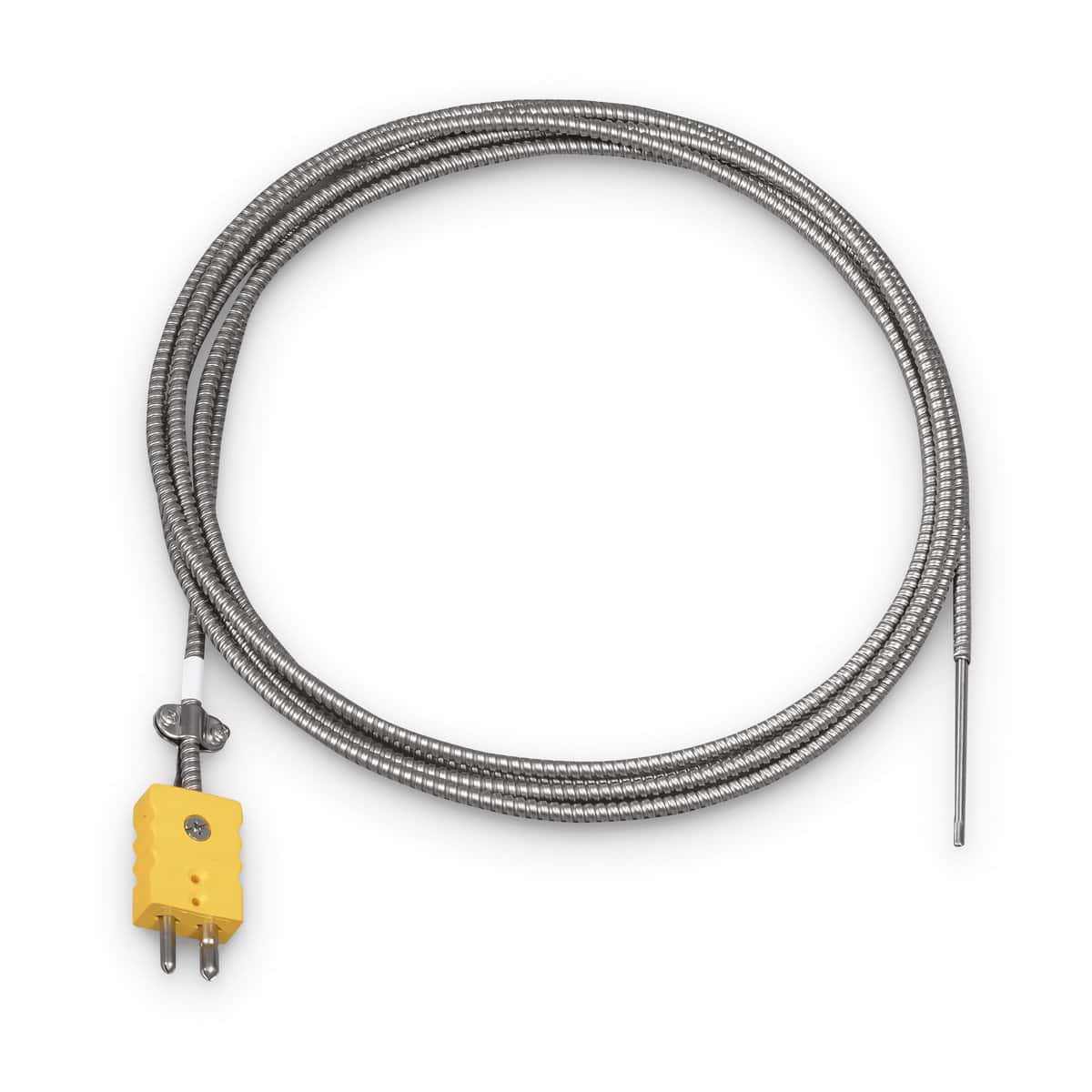

301517 - Miller 301517 Replacement Thermocouple Sensor 1/8 Inch

Restore Your Welder's Performance

Is your Miller welder throwing thermal error codes or shutting down unexpectedly? The Miller 301517 Thermocouple Temp Sensor might be the solution. This 1/8-inch diameter sensor is a direct replacement for the temperature probe found in specific Miller power sources. Over time, thermal sensors can degrade due to constant heating and cooling cycles, or they can be damaged physically during machine movement or maintenance. A faulty sensor can send erratic signals to the main board, causing the "Help" or "Hot" indicators to light up even when the machine is cool.

This OEM part ensures you get the correct fit and function. The 1/8-inch probe size is specific to the mounting locations in compatible Miller units. Trying to retrofit a universal thermocouple can be a nightmare—if the diameter is off, it won't seat correctly in the heat sink or transformer winding, leading to inaccurate readings. If the resistance curve doesn't match the board's logic, your fan might run constantly, or the machine might refuse to arc. Sticking with the Miller 301517 eliminates the guesswork.

Installation and Troubleshooting

When replacing this sensor, it is crucial to verify fitment using your machine's serial number, as Miller uses various sensors across their product lines. Accessing the sensor usually involves removing the machine's cover (ensure power is disconnected and capacitors are discharged). Look for the 1/8-inch probe inserted into a heat sink or taped to a transformer. Check the wiring path back to the control board for any signs of chafing or breaks, as sometimes the wire is the issue rather than the sensor itself.

If the sensor is the culprit, this replacement plugs directly into the existing harness or terminal block, depending on your specific model. Proper thermal contact is vital; ensure the new probe is seated firmly. Using this genuine part restores the factory duty cycle monitoring, allowing you to weld with confidence that your machine will protect itself if you push it too hard, without stopping you unnecessarily.
