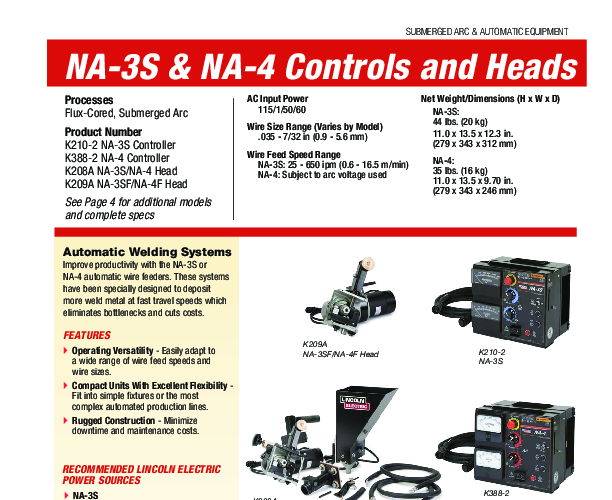

K209A - Lincoln Electric NA-3SF/NA-4F Wire Drive Assembly, 142:1 Ratio

Optimize Your Automatic Welding with the Lincoln K209A Wire Drive

Maximize the productivity of your heavy fabrication lines with the Lincoln Electric K209A Wire Drive, a dedicated assembly for NA-3SF and NA-4F automatic wire feeders. In the world of automated welding, the reliability of the wire feed mechanism is paramount. The K209A is engineered to eliminate bottlenecks associated with inconsistent feeding, specially when dealing with the thick solid wires used in heavy structural and vessel welding. By ensuring a smooth and continuous feed of 3/32" to 7/32" solid wire, this drive unit helps fabricators achieve faster travel speeds and superior weld metal deposition.

The K209A distinguishes itself with a powerful 142:1 gear ratio. This specific gearing is selected to optimize torque delivery, ensuring that even the heaviest spools of solid wire are fed with precision. This control is vital for automatic systems where human intervention is minimal; a steady feed rate translates directly to consistent penetration and bead appearance. The unit is compatible with the NA-4 wire feeder, which in turn pairs excellently with high-output power sources like the Idealarc AC-1200 and DC series (DC-600 through DC-1500). This compatibility ensures that your shop can leverage existing power equipment while upgrading or maintaining the feeder mechanism.

Designed for the harsh environments of heavy industry, the K209A is built tough. It operates reliably on 115 V AC power and is constructed to resist the wear and tear of daily industrial use. While it does not feature high-frequency insulation, it is perfectly suited for the standard submerged arc and heavy-duty MIG processes often run on NA-3 and NA-4 setups. The focus on solid wire compatibility addresses the needs of industries requiring high structural integrity, such as bridge building, shipbuilding, and pressure vessel fabrication.

Investing in the correct drive assembly is an investment in efficiency. The K209A reduces the likelihood of wire tangling, burn-backs, and irregular arc starts caused by poor feeding. Its design facilitates easy access for routine maintenance, ensuring that your automation cells remain operational. With a weight of 30 lbs and compact dimensions, it integrates neatly into the feeder mounting configuration. Choose the Lincoln K209A to keep your automatic welding operations running at peak performance, delivering the quality results your projects demand.
