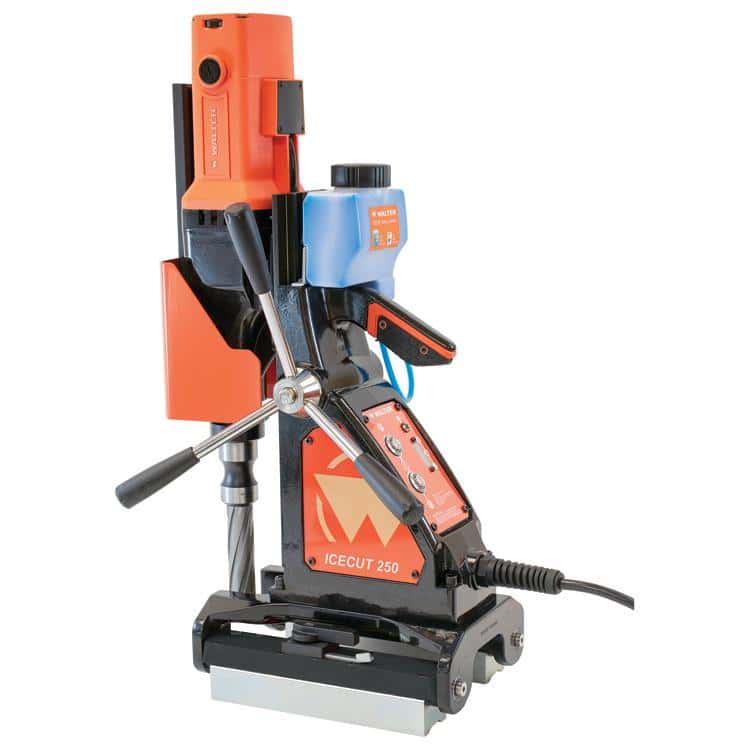

39D251 - Walter ICECUT 250P Pipe Magnetic Drill with Pivoting Base

Packaging: 1 per each
$6,252.28/ea $5,210.23/1 per each only $5,210.23/eaSave 17%

Usually ships within 3-5 business days

OVERVIEW

The Ultimate Mag Drill for Pipe Fabrication

For professional welders and pipefitters, the Walter ICECUT™ 250P is the solution to one of the most annoying field problems: mounting a magnetic drill on a pipe. Forget about ratchet straps, chain kits, or tack-welding temporary flat bars. The ICECUT™ 250P features a revolutionary pivoting magnetic base that conforms to the shape of the pipe instantly. Whether you are working on a saddle cut, installing branch lines, or prepping for mechanical tees, this drill locks on securely to both the outside and inside of curved surfaces, allowing you to set up and drill in seconds rather than minutes.

Versatility on the job site is key, and the ICECUT™ 250P delivers with its reversible motor. This feature transforms the unit from a simple hole-maker into a powerful tapping machine, allowing you to thread holes directly on the workpiece without needing a separate setup. The Dynamax™ variable speed control ensures you have the torque you need for tapping and the speed you need for annular cutters. With a capacity to drill up to 2-3/8 inches, it handles the majority of bolt-hole and fluid-passage requirements found in process piping and structural steel projects.

Built for the rigors of the field, the ICECUT™ 250P is designed to be both lightweight and rugged. The Accudrill™ system acts as a built-in guide, using an LED display to tell you if you are pushing too hard, helping you save money on broken cutters and burnt-out motors. The permanent magnets provide peace of mind when working at heights or in vertical positions, as the drill won't drop if the extension cord gets kicked out. From thin-wall stainless pipe to heavy-wall carbon steel, this tool provides the stability and power needed for high-quality, burr-free holes every time.

Additional Information
Brand:Walter Surface Technologies
Item:Drill
Drilling Capacity:2-3/8 in x 3 in
RPM Range:100-500 RPM
Minimum Material Thickness:1/8 in
Magnet Type:Permanent Pivoting Magnets
Motor Speeds:2-Speed
Control Features:Dynamax Variable Speed, Accudrill LED Torque Display, Reversible
Packaging Description:1 per each

INCLUDED

  • ICECUT 250P Magnetic Drill Unit
  • Carrying Case
  • Coolant Tank and Hose
  • Safety Strap
  • Standard Hex Keys
  • Operating Manual

APPLICATIONS

  • Pipe fabrication and installation
  • Structural steel erection
  • Tank and vessel manufacturing
  • On-site maintenance and repair
  • Drilling on convex and concave surfaces
  • Tapping and threading holes
  • Thin-gauge metal drilling (down to 1/8")

FAQ

The pivoting magnets allow the ICECUT 250P to mount securely to pipes with a diameter of 3 inches and larger inside, and varying diameters on the outside depending on the curvature.

Yes, the ICECUT 250P uses permanent magnets that remain energized even without electrical power, ensuring the drill stays attached to the workpiece for safety.

Yes, the ICECUT 250P features a reversible motor and variable speed control, making it suitable for tapping and threading operations.

The unit has a maximum drilling capacity of 2-3/8 inches in diameter and a cutting depth of 3 inches.

No, the pivoting magnet base is designed specifically to conform to curved surfaces, eliminating the need for separate chain adapters.

Accudrill is an LED torque display that provides visual feedback to the operator, indicating if the feed pressure is optimal or if the motor is being overloaded.

The advanced magnetic technology allows the drill to adhere to materials as thin as 1/8 inch (3.2 mm).

The 2-speed motor with Dynamax control offers a no-load RPM range of 100 to 500 RPM.
