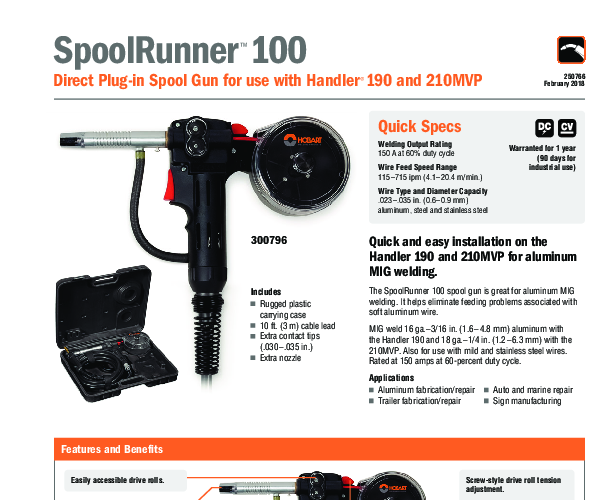

Hobart SpoolRunner 100 Aluminum MIG Gun

Technical Overview: Hobart SpoolRunner 100 Direct Plug-in Spool Gun

The Hobart SpoolRunner 100 (SKU: 300796) is a specialized wire feeding device designed to enhance the capabilities of select Hobart MIG power sources. It is engineered primarily to address the low columnar strength of aluminum welding wire, which makes it prone to buckling and feeding failures in standard push-type MIG systems. This unit is compatible exclusively with the Hobart Handler 190, Handler 210 MVP, and Multi-Handler 200 multiprocess welders, utilizing a direct-connect interface that integrates power, gas, and trigger control into a single connector.

Performance Specifications

The SpoolRunner 100 supports a wire feed speed range of 115 to 715 IPM (4.1 to 20.4 mpm), providing ample versatility for various material thicknesses. It is rated for use with wire diameters ranging from .023 to .035 inches (0.6 to 0.9 mm). When paired with the Handler 210 MVP, this spool gun enables the welding of aluminum from 18 gauge (1.2 mm) up to 1/4 inch (6.3 mm) thick. The unit accommodates standard 4-inch (102 mm) wire spools, keeping the overall weight manageable for the operator while ensuring sufficient consumable supply for extended welding sessions.

Mechanical Features

Mechanically, the gun is robust and service-friendly. It features an internal spool hub with tension adjustment to prevent wire overrun when the trigger is released. The drive assembly utilizes a screw-style tension adjustment and a spring-loaded tension-release arm, facilitating rapid spool changes and precise feed pressure calibration. The short distance from the drive rolls to the contact tip—inherent to the spool gun design—ensures positive feeding of 4043 and 5356 aluminum alloys. The assembly includes a 10-foot (3.0 m) cable lead with a heavy-duty strain relief to withstand the rigors of industrial environments.

Compatibility and Setup

The "Direct Plug-in" architecture significantly reduces setup time. The control signal and welding power are transmitted through the proprietary connector on the front panel of compatible Hobart machines. This eliminates the requirement for a separate control module or toggle switch installation. The gun comes complete with a threaded nozzle for secure gas coverage and includes contact tips and feed rolls compatible with aluminum, steel, and stainless steel wires. It is an essential component for applications involving aluminum fabrication, sign manufacturing, and marine repair where consistent wire feeding is critical to weld integrity.
