195729 - Miller Ironmate FC-1260 Flux Cored Gun 350A 15ft

Packaging: 1 PER EA
$1,978.29/EA $1,393.02/1 PER EA only $1,393.02/EASave 30%

Usually ships within 3-5 business days

OVERVIEW

Reliable Power for Field Welding

When your job site demands a welding gun that can take a beating and keep on performing, the Miller Ironmate FC-1260 (195729) is the tool you need. Designed explicitly for self-shielded flux-cored welding, this 350-amp gun is a favorite among field fabricators and ironworkers. It eliminates the frustrations often associated with running heavy flux-cored wires through standard MIG guns. With a 15-foot cable and the capacity to handle wire sizes from 1/16 to 3/32 inches, the FC-1260 provides the reach and power necessary for structural steel erection, heavy equipment repair, and pipeline work.

Smart Features That Save Money

Miller has packed the Ironmate FC-1260 with features that prioritize both operator comfort and your bottom line. The standout feature is the rotatable trigger, which is built to survive 1,000,000 cycles. Whether you prefer triggering with your thumb or your finger, the handle adapts to your style, helping you stay comfortable and precise throughout the workday. Furthermore, Miller understands that liners are wear items. Instead of forcing you to buy a whole new gun when the liner degrades, the FC-1260 features fully replaceable cable and gooseneck liners. This maintainable design ensures that your investment lasts longer and keeps your consumable costs in check.

Perfect Match for Miller Feeders

If you are running a Miller S-22P12 or Super S-32P wire feeder, the Ironmate FC-1260 is the perfect companion. It connects easily and delivers smooth, consistent wire feeding even in challenging conditions. The gun is also compatible with other Miller wire feeders, offering versatility across your equipment fleet. The two-piece liner system is another cost-saving innovation, allowing for partial replacements that are quicker and cheaper than traditional one-piece systems. Don't settle for a generic gun that might fail when you need it most; equip your rig with the Miller Ironmate FC-1260 and experience the difference that purpose-built quality makes.

Additional Information
Brand:Miller
Amperage:350
Length:15 ft
Wire Size:1/16"
Process Type:Self-Shielded Flux Cored (FCAW-SS)
Duty Cycle:60%
Wire Size Range:1/16 - 3/32 in (1.6 - 2.4 mm)
Cooling Method:Air Cooled
Trigger Type:Rotatable
Packaging Description:1 PER EA

INCLUDED

  • 1 x Miller Ironmate FC-1260 Flux Cored Welding Gun (15 ft)
  • 1 x Installed Liner (1/16 - 3/32 in)
  • 1 x Contact Tip
  • 1 x Owner's Manual

APPLICATIONS

  • Construction and Structural Steel Erection
  • Field Fabrication and Maintenance
  • Heavy Equipment Repair
  • Pipe Welding
  • Shipbuilding and Marine Repair
  • Railroad Maintenance

FAQ

The Miller Ironmate FC-1260 is rated at 350 Amps at a 60% duty cycle using CO2 gas or for self-shielded applications.

This gun is designed to handle flux-cored wire sizes ranging from 1/16 inch (1.6 mm) to 3/32 inch (2.4 mm).

Yes, the Ironmate FC-1260 features replaceable cable and gooseneck liners, which prevents the gun from becoming a throw-away item when liners wear out.

It is an ideal match for the Miller S-22P12 or Super S-32P and can be used with other Miller wire feeders.

Yes, the rugged trigger is rotatable and can be moved to the top or bottom of the handle for either thumb or finger actuation.

The Miller 195729 Ironmate FC-1260 comes with a 15-foot (4.6 meter) cable.

While primarily designed for flux-cored steel, optional aluminum-jacketed goosenecks are available to increase durability, but it is optimized for FCAW-SS.

The standard FC-1260 is designed for Miller feeders. However, the FC-1260LM model is specifically designed to work with Lincoln feeders without additional parts.

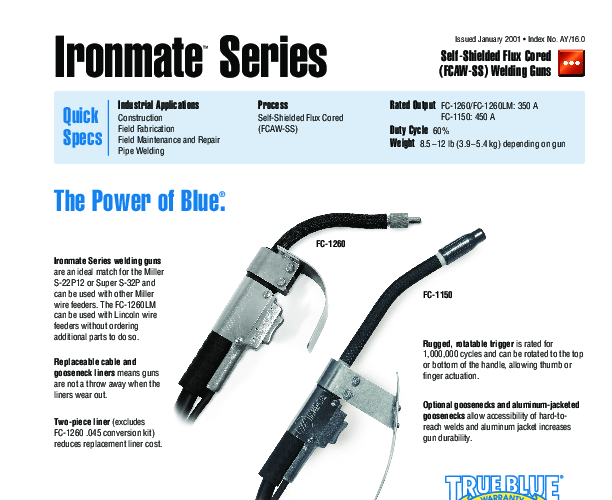

CATALOGUE & SPEC SHEETS

Spec Sheet
