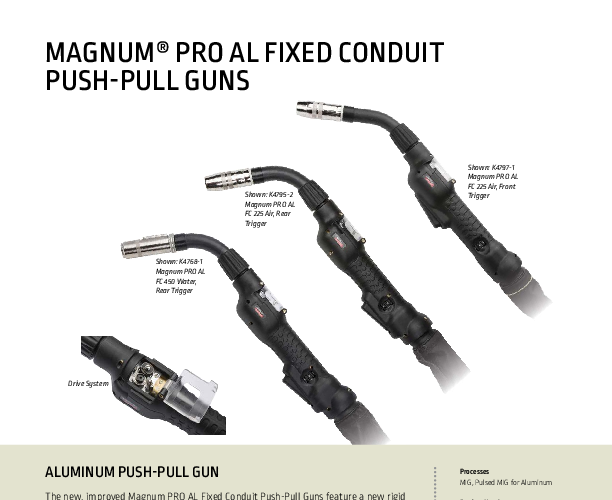

K4797-2 - Lincoln Magnum PRO AL FC 225 Push-Pull Gun, 25ft, 12-Pin

Superior Feeding for Aluminum Fabrication

Take control of your aluminum welding projects with the Lincoln Electric Magnum® PRO AL FC 225 Push-Pull Gun. Identified by SKU K4797-2, this air-cooled MIG gun is engineered to solve the specific feeding issues associated with soft aluminum welding wires. By combining a powerful assist motor in the handle with your welder's wire drive, the push-pull system ensures that wire is delivered to the arc smoothly and consistently, even over the generous 25-foot cable length. This extended reach is invaluable for working on large structures, trailers, or boats where moving the power source is impractical.

Innovative Fixed Conduit Liner

The "FC" in the name stands for Fixed Conduit, a feature that represents a significant upgrade in liner technology. The gun utilizes a fixed, rigid liner that prevents the liner itself from stretching or compressing during operation. This rigidity is crucial for aluminum wire, as it minimizes friction and prevents the wire from shaving or buckling inside the cable. The result is a premium welding experience with a stable arc and significantly reduced downtime associated with liner maintenance or wire feeding faults.

Ergonomic and Versatile Design

Welder comfort is paramount for productivity. The Magnum PRO AL FC 225 is designed with a comfortable grip and a balanced weight distribution to reduce fatigue during long welding sessions. The gun tube rotates 360 degrees, allowing the operator to position the nozzle at the optimal angle for any joint configuration, whether overhead, vertical, or flat. Additionally, the Quick WFS Adjustment dial located on the handle puts control at your fingertips, saving time and improving weld consistency.

Compatibility and Specs

This model comes equipped with a 12-pin connector, making it plug-and-play ready for compatible Lincoln Electric welders and wire feeders. For equipment with 7-pin receptacles, an optional adapter (K2910-2) is available. Rated at 225 amps at 60% duty cycle, it handles the heat of sustained welding. The gun ships with 3/64-inch expendables but supports a wire diameter range from 0.035" to 1/16", giving you the flexibility to tackle various material thicknesses. Invest in the Magnum PRO AL FC 225 to experience the difference that a dedicated aluminum push-pull system can make in your shop.
