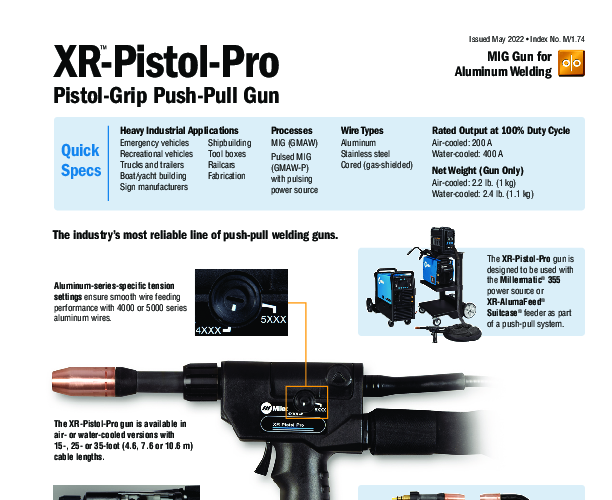

Take your aluminum welding capabilities to the next level with the Miller XR-15W Pistol Pro (300786). This 15-foot, water-cooled push-pull gun is the industry standard for welders who require absolute reliability and high output. Rated at 400 Amps at 100% duty cycle, the XR-15W is designed to handle the heat of continuous heavy-industrial welding without skipping a beat. It is the ideal companion for Miller's XR-AlumaFeed systems and compatible Millermatic power sources, providing a seamless solution for feeding .030" to 1/16" aluminum wires.
Feeding soft aluminum wire through a standard MIG gun often leads to frustration, burn-backs, and birdnesting. The XR-15W solves this with its advanced push-pull technology. A motor located in the gun pulls the wire while the feeder pushes it, maintaining constant tension and speed. This model features dual wire tension settings that can be adjusted for 4000-series (softer) or 5000-series (stiffer) aluminum alloys, ensuring arc consistency and flawless welds every time. The wire speed capacity ranges from 70 to 900 IPM, giving you the versatility to handle a wide range of material thicknesses.
The "Pistol Pro" design offers a comfortable grip that reduces wrist strain compared to traditional gooseneck guns, especially during out-of-position welding. It features a trigger hold option, allowing you to weld long seams without continuous finger pressure. When it comes to maintenance, the XR-15W excels with its toolless head tube removal and easy-access drive rolls. You can swap out head tubes to different angles or lengths (sold separately) to fit your specific application needs. Additionally, the replaceable liner system saves you money by allowing you to change just the liner rather than the whole cable assembly.
From truck and trailer fabrication to boat building and railcar manufacturing, the XR-15W is built to perform. It accepts standard FastTip and Bernard Centerfire contact tips, making consumable management easy. If you are looking for a gun that combines the cooling power needed for high-amperage work with the precision feeding required for aluminum, the Miller XR-15W Pistol Pro is the ultimate choice for professional welders.
| Additional Information |
|---|
| Brand:Miller |
| Amperage:400 |
| Length:15 ft |
| Wire Type:Aluminum |
| Item:Gooseneck |
| Cooling Method:Water Cooled |
| Torch Type:Push-Pull Pistol Grip |
| Duty Cycle:100% @ 400A |
| Wire Diameter Capacity:0.030" - 1/16" (Aluminum), 0.030" - 0.045" (Hard Wire) |
| Wire Speed:70 - 900 IPM |
| Net Weight:1.1 kg |
| Packaging Description:1 PER EA |
