9-6007 - Thermal Dynamics 9-6007 Gas Diffuser for PCH-10 and PCH-25 Torches

Precision Gas Control for PCH-10 and PCH-25 Torches

The Thermal Dynamics 9-6007 Gas Distributor is an essential consumable for operators utilizing the PCH-10 and PCH-25 series plasma torches. Often referred to as a gas diffuser or swirl ring in similar configurations, this component is responsible for metering the plasma gas (usually air) and imparting the necessary swirl pattern before it reaches the nozzle orifice. This swirling action is fundamental to the physics of plasma cutting, as it constricts the arc, increases its density, and cools the consumables, resulting in a cleaner cut with less dross and a narrower kerf.

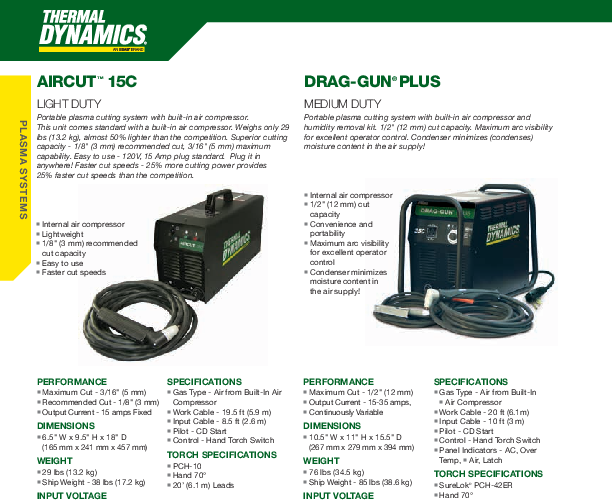

This specific distributor is compatible with the Drag-Gun and Aircut 15C plasma cutting systems. It sits between the electrode and the nozzle, insulating them electrically while channeling the gas flow. A compromised gas distributor can lead to a host of cutting issues, including off-center arcs, rapid electrode wear, and nozzle overheating. If you notice a deterioration in cut angularity or stability, inspecting and replacing the 9-6007 distributor is a recommended troubleshooting step.

Technical Reliability and Compatibility

Manufactured to Thermal Dynamics' exacting standards, the 9-6007 ensures perfect alignment within the torch head. Its material composition is selected for high dielectric strength and thermal resistance, preventing arcing between internal components. Unlike universal parts that may not fit perfectly, this OEM distributor guarantees the correct gas pressure drop and velocity required for the PCH-10 and PCH-25 torches to operate within their specified duty cycles.

Regular inspection of the gas distributor is a key part of preventative maintenance. Look for signs of cracking, clogging, or deformation. Because it directs the cooling gas flow, a functioning distributor also helps extend the life of your electrode and tip. For professional welders and fabricators relying on the portability and utility of the Drag-Gun or Aircut 15C, keeping a spare 9-6007 in your toolkit ensures that you are always ready to tackle the next cut with confidence and precision.
