WP-125L-25-R - Weldcraft W-125L Micro TIG Torch Package, 25ft, Water-Cooled, Braided Rubber

Packaging: 1 of each
$1,194.55/ea $736.01/1 of each only $736.01/eaSave 38%

Usually ships within 3-5 business days

OVERVIEW

Reach the Unreachable with the W-125L Micro TIG Torch

When your weld joint is buried deep inside a pipe, manifold, or complex bracket, a standard TIG torch simply won't cut it. Enter the Weldcraft W-125L Micro TIG Torch Package (WP-125L-25-R), the ultimate problem-solver for welders who need to work in tight quarters without sacrificing power. This "Long Micro" torch is built to go where others can't, featuring a slender, extended body and a low-profile nozzle that fits into openings as narrow as 5/8 of an inch. Whether you are repairing an HVAC system, fabricating a roll cage, or working on detailed automotive parts, the W-125L gives you the reach and visibility you need to lay down a perfect bead.

Don't let the small size fool you—this torch is a workhorse. It is water-cooled to handle up to 125 Amps of DC output at a 100% duty cycle, meaning you can weld continuously without stopping to let the torch cool down. The water-cooling system wraps around the head, keeping the torch body comfortable in your hand even during high-amperage applications. This package comes equipped with high-quality 25-foot braided rubber leads. Unlike stiff plastic cables, braided rubber is flexible and tough, moving with you as you maneuver around the workpiece and standing up to the wear and tear of a busy garage or shop.

The W-125L is designed for comfort and control. The lightweight body reduces hand fatigue, allowing for the steady hand required in micro-welding applications. It also helps you save money in the long run; the silicone rubber insulator and head parts are replaceable, so you don't have to buy a whole new torch if a component wears out. This complete kit includes the torch body, handle, all necessary hoses and cables, plus a starter set of a 45-degree nozzle and chuck. Upgrade your arsenal with the Weldcraft W-125L and stop struggling with bulky torches in tight spaces.

Additional Information
Brand:Weldcraft
Length:25 ft
Head Style:Rigid
Packaging Description:1 of each
Amperage Rating:125 A
Cooling Method:Water Cooled
Torch Type:Micro TIG
Cable Type:Braided Rubber
Duty Cycle:100%
Series:W-125 Micro Series
Style.Amps/Cooling:9 / 125 Amps / Air Cooled
Piece:1-Piece
Arc Control:n/a

INCLUDED

  • W-125 Long Micro Torch Body
  • Handle
  • Braided rubber power cable (25 ft / 7.6 m)
  • Gas Hose
  • Water Hose
  • 45-degree nozzle
  • 45-degree 1/16-inch chuck
  • Collet body wrench

APPLICATIONS

  • Aerospace and Aircraft Repair
  • Food and Beverage Industry Processing
  • HVAC Piping and Installation
  • Light and Heavy Manufacturing
  • Petrochemical and Refinery Maintenance
  • Precision Fabrication and Metal Art
  • Automotive and Racing Applications
  • Shipbuilding and Marine Repair

FAQ

The Weldcraft W-125L is rated for 125 Amps DC and 80 Amps AC at 100% duty cycle.

The low-profile nozzle design allows the W-125L to fit into holes as small as 5/8-inch (approx. 16mm) in diameter.

No, the WP-125L-25-R features a rigid head without a gas control valve. Gas flow must be controlled at the power source or via a separate valve.

This package includes a 25-foot (7.6m) braided rubber power cable, which offers superior flexibility and durability compared to vinyl cables.

The W-125L is a water-cooled TIG torch, requiring a water cooler system for operation.

It uses Weldcraft Micro Series consumables, including specific chucks and nozzles (45-degree, 90-degree, and 180-degree options available).

Yes, the silicone rubber insulator and head components are replaceable, which helps lower long-term maintenance costs.

They are the same torch series. The W-125 is the newer nomenclature for the legacy Weldcraft WP-125 MicroTig series.

CATALOGUE & SPEC SHEETS

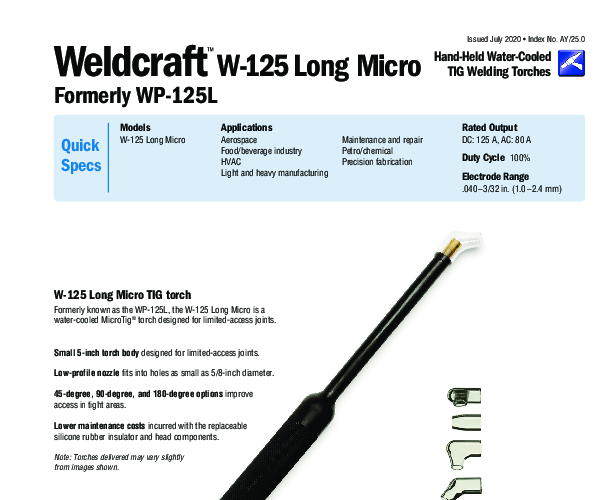

Spec Sheet
