WP-125L-12-R - Weldcraft W-125L Micro TIG Torch Package, 12.5ft Water-Cooled

Packaging: 1 per ea
$1,029.86/ea $725.18/1 per ea only $725.18/eaSave 30%

Usually ships within 3-5 business days

OVERVIEW

Reach the Unreachable with the W-125L Micro Torch

Every welder knows the frustration of a joint that you can see but just can't reach with a standard #17 or #20 torch. The Weldcraft W-125L Micro TIG Torch is your solution for those impossible tight spots. Whether you are welding inside a manifold, repairing a cooling fin, or working on detailed aerospace parts, this torch is built to go where others can't. The "Long" neck design gives you that extra extension needed to keep your hand clear of the work while getting the tungsten exactly where it needs to be.

Don't let the small size fool you—this is a serious industrial tool. Thanks to its water-cooled design, the W-125L is rated for 125 amps of DC power at a 100% duty cycle. This means you can weld all day without the torch getting too hot to hold. The handle stays cool and comfortable, reducing hand fatigue during those long, intricate welds. The pencil-style grip allows for fingertip control, which is critical when you are laying down tiny beads on thin-gauge materials.

This complete package comes ready to hook up to your machine. It features high-quality braided rubber leads that are tough enough to withstand shop environments but flexible enough to not fight you while you weld. The kit includes the torch body, handle, and all necessary hoses (power, water, gas). One of the best features of the W-125 series is the ability to swap out heads; while this kit comes setup for standard use, you can easily equip it with 45, 90, or 180-degree chucks (sold separately or included in specific accessory kits) to tackle any angle. Stop compromising your weld quality because of poor access—upgrade to the W-125L.

Additional Information
Brand:Weldcraft
Length:12.5 ft
Head Style:Rigid
Packaging Description:1-of-each
Amperage Rating:125 A
Cooling Method:Water-Cooled
Torch Type:Micro TIG
Cable Type:3-Piece Braided Rubber
Duty Cycle:100% @ 125A (DC)
Nozzle Access:5/8 inch diameter

INCLUDED

  • W-125 Torch Body (Long Neck)
  • Torch Handle
  • 12.5 ft. Braided Rubber Power Cable
  • 12.5 ft. Gas Hose
  • 12.5 ft. Water Hose
  • 45-Degree Nozzle
  • 45-Degree 1/16-inch Chuck
  • Collet Body Wrench

APPLICATIONS

  • Aerospace Component Fabrication
  • Food and Beverage Processing Equipment
  • HVAC and Heat Exchanger Repair
  • Petrochemical Piping
  • Precision Tool and Die Repair
  • Automotive Manifold Fabrication
  • Maintenance and Repair Operations (MRO)

FAQ

The W-125L is rated for 125 Amps DC and 80 Amps AC at 100% duty cycle.

With the low-profile nozzle, the W-125L can access holes as small as 5/8-inch (15.8 mm) in diameter.

No, this is a torch package only. It requires an external water cooler and power source to operate.

It comes with 12.5-foot (3.8m) braided rubber power, water, and gas hoses.

Yes, the W-125 series supports interchangeable chucks and nozzles for 45-degree, 90-degree, and 180-degree applications.

The W-125L is a water-cooled torch. It must be connected to a coolant system to prevent overheating.

It uses Weldcraft Micro Series consumables, including specific chucks, nozzles, and quartz cups designed for the W-125 body.

Yes, the pencil-style handle is lightweight and knurled for a secure grip, and the water cooling keeps it comfortable even at high amperage.

CATALOGUE & SPEC SHEETS

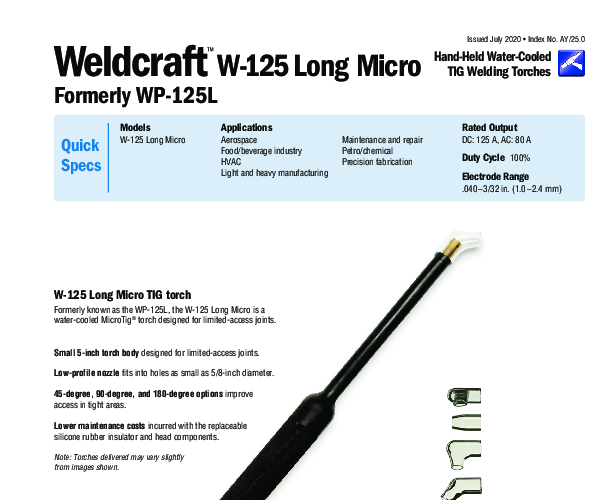

Spec Sheet
