WP-225-12-R - Weldcraft W-225 Modular Water-Cooled TIG Torch Kit, 12.5ft

Weldcraft W-225 Water-Cooled Modular TIG Torch Package

Maximize your welding productivity with the Weldcraft W-225 (WP-225-12-R), a premium water-cooled TIG torch engineered for adaptability and endurance. This 225-amp torch kit is part of the renowned Modular Series, designed to solve the common problem of limited joint access without requiring a tool crib full of different torches. The W-225 features a unique modular body that allows operators to quickly interchange torch heads, effectively customizing the torch geometry to suit the immediate application. This specific package includes a 12.5-foot (3.8m) cable assembly featuring robust braided rubber hoses for power, water, and gas.

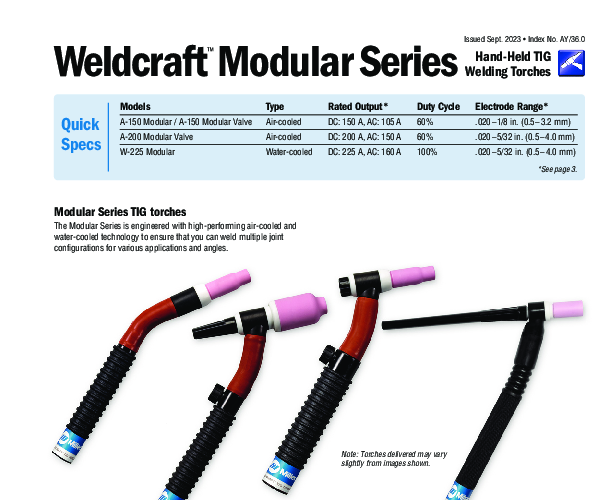

Technical Specifications and Power

The W-225 is a powerhouse in a compact package. It is rated for 225 Amps DC and 160 Amps AC, making it suitable for a wide range of materials including aluminum, mild steel, and stainless steel alloys. The water-cooling technology is highly efficient, extending the life of both the torch components and the consumables by maintaining lower operating temperatures. This efficiency is crucial for high-duty cycle applications where air-cooled torches would overheat and fail. The power cable configuration is a 3-piece design, separating the power/water return, water supply, and gas supply lines for optimal safety and performance.

Included Modular Heads

Out of the box, the WP-225-12-R kit provides exceptional flexibility through its included heads:

• 1726 Torch Head: This head is compatible with standard 3-Series consumables (10N series collets and alumina cups), offering robust performance for general fabrication.
• 9-70 Torch Head: This 70-degree head utilizes 2-Series consumables (13N series), providing a smaller front-end profile for accessing restricted areas or welding pipe roots.

Both heads feature flexible neck technology, allowing the welder to bend the head into the optimal position for visibility and wire feeding.

Durability and Maintenance

The modular design does more than just provide angles; it simplifies maintenance. If a torch head is damaged, it can be replaced individually without discarding the entire torch body or cable assembly, significantly lowering long-term maintenance costs. The braided rubber leads offer superior resistance to hot surfaces and sharp edges compared to standard vinyl, ensuring longevity in harsh shop environments. Whether for aerospace, motorsports, or general industrial fabrication, the Weldcraft W-225 offers the reliability and precision professional welders demand.
