301581 - Miller Wireless TIG Foot Pedal Transmitter 301581

Packaging: 1 per ea
$2,084.29/ea $1,467.66/1 per ea only $1,467.66/eaSave 30%

Usually ships within 3-5 business days

OVERVIEW

Total Freedom to Weld Without Limits

Imagine welding without a leash. The Miller Wireless Foot Control gives you the ultimate freedom to move around your workpiece, climb into tight spots, or work on large assemblies without dragging a heavy control cord behind you. We all know the frustration of tangled cables, the time wasted untangling them, and the constant worry of tripping over a cord in the middle of a bead. This wireless pedal eliminates those headaches instantly, letting you focus entirely on your puddle and your arc. It’s not just a luxury; it’s a better way to weld.

This pedal feels just like the wired version you are used to—responsive, precise, and rugged—but with a 90-foot range that opens up your entire shop. Whether you are working on a Dynasty 210 or a heavy-duty Syncrowave, the connection is instant and lag-free. You don't have to worry about interference from the guy in the next booth either; the smart frequency technology handles up to 20 pedals in the same area perfectly. Plus, with Easy-Glide pads on the bottom, you can kick the pedal into the perfect position with your heel, even on rough concrete floors, without having to bend down and move it by hand.

Battery anxiety? Forget about it. This unit runs on four standard AA batteries and lasts for 1,500 hours of welding time. That is months, if not years, of typical use before you need to swap them out. It works with most modern Miller TIG machines, including the Maxstar and Trailblazer series (some may need an adapter). If you are ready to clean up your workspace and weld with more comfort and less clutter, this wireless foot control is the upgrade you have been waiting for.

Additional Information
Brand:Miller
Packaging Description:1 of each
Battery Life:1500 hours
Operating Range:90 ft
Power Supply:Four AA batteries
Radio Frequency:2.4 Ghz
Component Type:Transmitter (Foot Control)

INCLUDED

  • 1 x Wireless Foot Control Transmitter (Pedal)
  • 4 x AA Batteries
  • Easy-Glide Wear Pads
  • Note: Receiver not included

APPLICATIONS

  • Precision TIG Welding (GTAW)
  • Aerospace and Aviation Maintenance
  • Industrial Manufacturing and Fabrication
  • Construction and Field Repair
  • Mobile Welding Rigs
  • Vocational Training Centers
  • Shipbuilding and Marine Repair

FAQ

No, this SKU (301581) is for the Wireless Foot Control transmitter only. The receiver is not included.

The pedal has an operating range of up to 90 feet (27.4 meters) from the receiver.

It uses four standard AA batteries, which provide approximately 1,500 hours of battery life.

Yes, the system supports multiple frequency sharing, allowing up to 20 systems to operate within a 90-foot radius without interference.

It is recommended for Dynasty (210, 280, 400, 800), Maxstar (161, 210, 280, 400, 800), Syncrowave (300, 400), and Trailblazer 325. Note that Maxstar 161 requires an adapter.

No, the 2.4 Ghz radio frequency ensures accurate and precise control without delay or system latency.

No, it features Easy-Glide Wear Pads™ that allow it to glide easily across concrete floors for quick repositioning.

Yes, it completely replaces the function of a standard corded foot control, improving safety and flexibility.

CATALOGUE & SPEC SHEETS

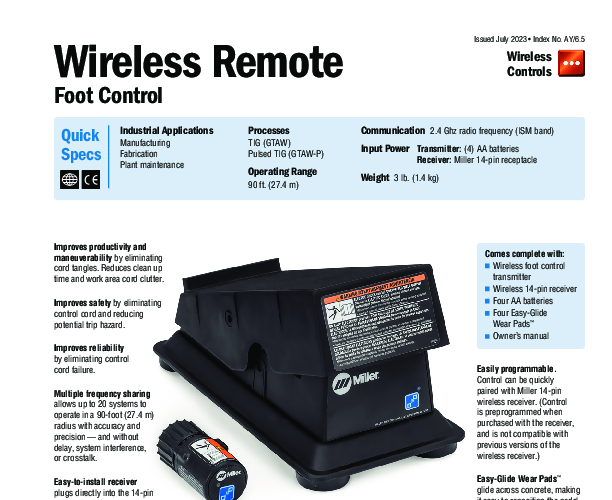

Spec Sheet
