Lincoln Electric 200A Stick Welding Stinger

Industrial Grade 200A SMAW Holder

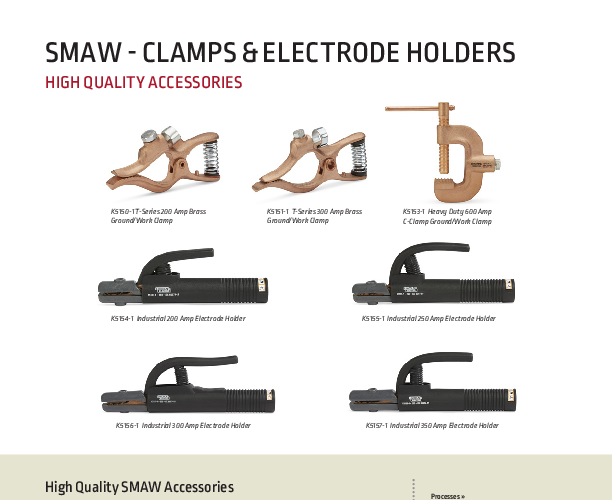

The Lincoln Electric K5154-1 Industrial 200 Amp Electrode Holder is a robust accessory designed for Shielded Metal Arc Welding (SMAW) applications requiring up to 200 amps of output. This holder is built to meet the rigorous demands of industrial environments while maintaining a form factor that allows for access in confined spaces. The core of the unit features a body and jaw set manufactured from a copper alloy. This material selection is critical for minimizing electrical resistance at the contact point, thereby reducing heat generation within the holder itself and ensuring that the full welding current is delivered to the electrode.

Technical specifications for the K5154-1 highlight its capability for sustained use. It carries a duty cycle rating of 200 Amps at 35% and 150 Amps at 60%, making it suitable for a variety of maintenance, repair, and fabrication tasks. The jaw capacity accommodates stick electrodes up to 5/32 inch (3.9 mm) in diameter, covering the most common sizes used in general fabrication. For connectivity, the holder is designed to accept welding cables up to size 1/0, allowing for adequate current carrying capacity without excessive voltage drop over reasonable distances.

Durability and operator safety are addressed through the use of high-impact nylon for the handle and fiberglass for the insulators. These materials are selected for their high dielectric strength and thermal stability. The mechanical design of the spring-loaded jaw ensures a high clamping force, preventing electrode slippage even when the rod is manipulated into overhead or vertical positions. This holder represents a direct replacement for standard 200A stingers and integrates seamlessly with existing Lincoln Electric equipment as well as other power sources using standard cable connections.

Technical Specifications

• Amperage Rating: 200A @ 35% Duty Cycle / 150A @ 60% Duty Cycle
• Electrode Capacity: Up to 5/32" (3.9 mm)
• Cable Capacity: Up to 1/0 AWG
• Construction: Copper alloy body with nylon/fiberglass insulation
