951801 - Miller T94i-R SAR System with C50 Cooling Regulator and 100ft Hose

Packaging: 1 PER EA
$4,876.51/EA $3,204.90/1 PER EA only $3,204.90/EASave 34%

Usually ships within 3-5 business days

OVERVIEW

Stay Cool and Productive with the Miller T94i-R SAR System

Take your welding comfort and safety to the next level with the Miller 951801 SAR System. Designed for professional welders who demand the best, this system pairs the advanced T94i-R auto-darkening helmet with the C50 cooling air regulator and a generous 100-foot air hose. Heat stress is a major factor in welder fatigue, but the C50 regulator tackles this head-on by cooling the supplied air by up to 50 degrees Fahrenheit before it reaches your face. This constant stream of cool, clean air allows you to stay under the hood longer, maintain focus, and produce higher quality welds even in the most sweltering shop conditions.

The T94i-R helmet itself is a masterpiece of engineering. It features a large 9-square-inch viewing area equipped with ClearLight Lens Technology, which provides a crisp, natural color view of the weld puddle. The digital lens controls allow you to easily switch between Weld, Cut, Grind, and X-Mode. X-Mode is particularly useful for outdoor work or low-amp TIG welding, as it electromagnetically senses the arc to prevent sunlight interference. When it's time to grind, the flip-up front exposes a clear, high-impact grind shield with a 180-degree field of view, ensuring you never have to compromise on safety or visibility.

Mobility is key in large-scale fabrication, and the included 100-foot straight air hose gives you the freedom to move around the shop floor without constantly repositioning your air source. The hose is durable and features industrial interchange fittings for easy compatibility. The system is supported by a comfortable, padded belt and integrated shoulder straps that distribute the weight evenly, alleviating lower back strain during long shifts. Whether you are working with stainless steel, flux-cored wire, or in galvanized environments, the Miller SAR system provides the protection you need against hexavalent chromium, manganese, and other hazardous fumes, all while keeping you cool and comfortable.

Additional Information
Brand:Miller
Packaging Description:1-per-ea
Lens Type:Auto-Darkening, ClearLight Technology
Viewing Area:9 sq. in.
Shade Range:8-13, 5-8, 3
Hose Length:100 ft
Regulator Type:C50 Cooling Regulator
Airflow Distribution:Dualtec 6-Point System
Standards:ANSI Z87.1-2015, NIOSH Approved

INCLUDED

  • T94i-R Helmet Assembly
  • C50 Air Regulator
  • 100 ft Straight Air Hose (3/8 inch ID)
  • Breathing Tube Assembly
  • Flame-resistant Breathing Tube Cover
  • Padded Belt
  • Flowmeter
  • Tool Bag
  • 5 Outside Cover Lenses
  • 2 Inside Cover Lenses
  • 2 Side Window Covers

APPLICATIONS

  • Heavy Industrial Manufacturing
  • General Fabrication
  • Stainless Steel Welding
  • Flux Cored Welding
  • Galvanized Steel Welding
  • High Amperage Applications
  • Confined Space Welding (Non-IDLH)

FAQ

No, the BreatheAir filtration panel or box (such as the Miller 275961 or 275983) is sold separately and is required to provide Grade D breathing air.

The C50 air regulator can cool the air entering the helmet by up to 50 degrees Fahrenheit (28 degrees Celsius) relative to the ambient air temperature.

Yes, this specific package (951801) includes a 100-foot straight air hose with 3/8 inch ID and 1/4 inch industrial interchange fittings.

Yes, the helmet features an integrated grind shield with a clear 44 square inch viewing area, allowing you to grind without lifting the helmet.

The auto-darkening lens uses lithium batteries with solar assist, providing a battery life of up to 3,000 hours.

X-Mode is a setting that electromagnetically senses the welding arc. It is useful for outdoor welding to prevent sunlight interference and for low-amperage TIG or obstructed views where optical sensors might be blocked.

No, this Supplied Air Respirator (SAR) is NOT intended for use in Immediately Dangerous to Life or Health (IDLH) environments.

Yes, the T94i-R has Shade 5.0 side windows to enhance peripheral vision and situational awareness.

CATALOGUE & SPEC SHEETS

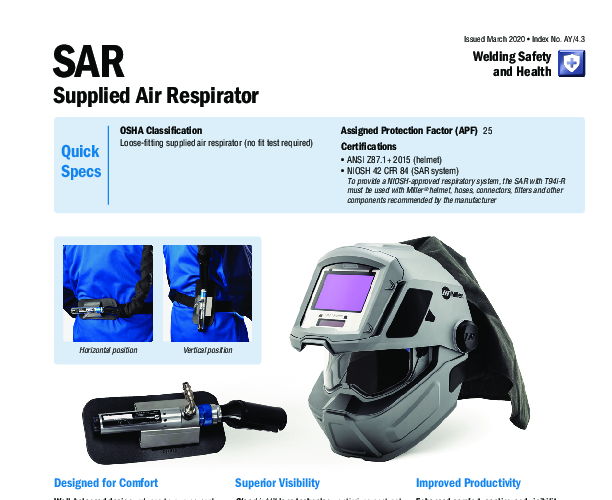

Spec Sheet
