275985 - Miller BreatheAir 4-Person Portable SAR Filtration Box (10 ppm Alarm)

Packaging: 1 PER EA
$12,989.65/EA $8,003.38/1 PER EA only $8,003.38/EASave 38%

Usually ships within 3-5 business days

OVERVIEW

Protect Your Crew with Clean Air

In the world of professional welding, respiratory safety is not just a regulation—it's a necessity. The Miller BreatheAir™ 4-Person Portable Filtration System (275985) is the ultimate guardian for your team, transforming standard compressed air into safe, Grade-D breathing air. Designed to work seamlessly with Miller's Supplied Air Respirators (SAR), this portable box allows up to four welders to work comfortably under the hood with a constant supply of cool, clean air. By removing contaminants before they reach the welder, you significantly reduce the risk of respiratory illness caused by welding fumes, oil mists, and other shop contaminants.

Reliable CO Monitoring and Alarms

One of the biggest invisible dangers in supplied air systems is Carbon Monoxide (CO). The Miller BreatheAir™ system actively guards against this with a built-in CO monitor. If the CO levels in your air line exceed 10 parts per million (ppm), the box immediately flashes bright warning lights and sounds a loud alarm. This instant feedback allows your team to disconnect and reach safety before dangerous exposure occurs. The system is built tough to withstand the rigors of a welding shop, weighing only 32 lbs for easy portability. Whether you are working in stainless steel fabrication, flux-cored welding, or general manufacturing, this system moves where you move.

Hassle-Free Operation and Maintenance

Miller has designed the BreatheAir™ system to be as user-friendly as possible. You don't need to guess when to change the filters; clear indicators on the cartridges tell you exactly when they are spent. The three-stage filtration ensures that the air doesn't just meet safety standards—it tastes and smells clean, removing the oil and stale odors often associated with compressor air. With an automatic condensation drain to keep the system running dry and efficient, you can focus on laying perfect beads rather than worrying about your air supply. Invest in the Miller 275985 to ensure your crew stays healthy, compliant, and productive.

Additional Information
Brand:Miller
Packaging Description:1-per-each
Product Type:Supplied Air Filtration System
Capacity:4 Person
Air Flow:123 CFM
CO Alarm Threshold:10 PPM
Filtration Stages:3-Stage
Breathing Air Standard:Grade-D
Weight:32 lbs
Inlet Connection:1/2 inch Industrial Interchange

INCLUDED

  • BreatheAir™ 4-Person Portable Filtration Box
  • Three-stage air filtration cartridges
  • Internal Carbon Monoxide (CO) monitor
  • External visual and audible alarms
  • Quadruple manifold with 1/2-inch quick disconnects
  • Owner's Manual

APPLICATIONS

  • Manufacturing and General Fabrication
  • Stainless Steel Welding
  • Flux Cored Arc Welding (FCAW)
  • Heavy Industrial Environments
  • Confined Space Welding (Non-IDLH)
  • Shipbuilding and Repair

FAQ

The Miller BreatheAir system filters compressed air from a shop compressor to provide Grade-D breathing air for personnel using Supplied Air Respirators (SAR).

No, this unit does NOT remove Carbon Monoxide. It monitors CO levels and triggers an alarm if they exceed 10 ppm. You must ensure the compressor intake is located in clean air.

This specific model (275985) is designed to support up to four operators simultaneously.

For the 4-person box, the minimum requirement is 75 PSIG at 60 CFM. The maximum inlet pressure is 125 PSIG.

No, the Miller BreatheAir system is NOT intended for use in Immediately Dangerous to Life or Health (IDLH) environments.

The filters have change indicators that notify the user when a change is needed. This eliminates guesswork and ensures the unit performs correctly.

Stage 1 removes 95% of liquids and particulates >5.0 microns. Stage 2 removes 99.99% of fine oil mists and particulates >0.01 microns. Stage 3 removes organic vapors, odors, and tastes.

This unit comes with the CO monitor set to 10 ppm, which is the standard for the USA. There is a separate model available for Canada set to 5 ppm.

CATALOGUE & SPEC SHEETS

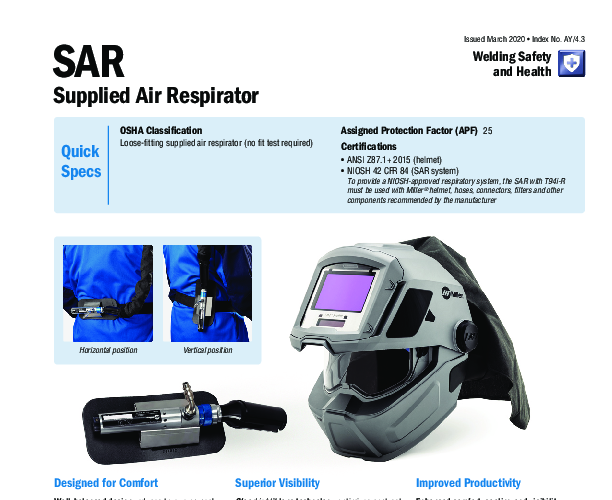

Spec Sheet
