Miller T94i XL Auto-Darkening Welding Helmet with ClearLight 2.0

$1,347.11/ea $830.00/1 per ea only $830.00/eaSave 38%

Usually ships within 3-5 business days

OVERVIEW

Maximize Productivity with the Miller T94i XL Welding Helmet

Experience the future of welding clarity with the Miller T94i XL Auto-Darkening Helmet, featuring ClearLight 2.0 technology. This premium helmet is built for the welder who demands the best in optics, comfort, and efficiency. The ClearLight 2.0 lens provides high-definition optics that produce a more natural color spectrum, allowing you to see the weld puddle with unprecedented detail and contrast. With a massive 13-square-inch viewing area, you get a panoramic view of your workpiece, reducing the need to constantly reposition your head.

The T94i XL is designed to keep you working efficiently. The integrated grind shield features HDV technology for a sharp, distortion-free view, allowing you to switch between welding and grinding instantly using the external grind control button. This seamless transition increases helmet-on time and safety. For challenging environments, the helmet's X-Mode technology ensures the lens darkens only when an arc is present, even in direct sunlight or low-amperage TIG applications down to 3 amps. The helmet's lightweight, well-balanced design (approx. 28 oz) and ergonomic Gen IV headgear minimize strain, keeping you comfortable all day long.

Packed with features for the professional, the T94i XL includes InfoTrack 2.0 for tracking arc metrics, half-shade settings for precise lens adjustment, and a quick-release cover lens system for fast maintenance. The package comes complete with a helmet bag, 5 outside cover lenses, and 2 inside cover lenses, ensuring you are ready to weld right out of the box. Invest in the Miller T94i XL for a welding experience that combines superior protection with unmatched visual clarity.

Additional Information
Brand:Miller
Grind Function:Yes
Lense Type:ADF (Autoshade)
Packaging Description:1-per-ea
Papr:No
Shade Range:5-13
Lens Technology:ClearLight 2.0
Viewing Area:13 sq. in.
Sensors:4
Switching Speed:1/25,000 sec
TIG Rating:3 Amps
Modes:Weld, Cut, Grind, X-Mode
Weight:28 oz
Standards:ANSI Z87.1-2015
Optical Clarity:1/1/1/1

INCLUDED

  • Miller T94i XL Welding Helmet
  • 5 outside cover lenses
  • 2 inside cover lenses
  • 2 side window covers
  • Helmet bag
  • 4 year True Blue Warranty

APPLICATIONS

  • Industrial Manufacturing
  • Heavy Fabrication
  • Construction and Pipe Welding
  • Shipbuilding
  • Maintenance and Repair (MRO)

FAQ

The T94i XL features a massive 13 square inch viewing area, which is 30% larger than the standard T94 lens.

Yes, it features an integrated grind shield with a 44 sq. in. clear viewing area and an external grind control button for quick switching.

ClearLight 2.0 is Miller's advanced lens technology that provides high-definition optics with a 1/1/1/1 rating for a clearer, brighter, and more realistic view of the weld.

X-Mode electromagnetically senses the welding arc to trigger the lens darkening. It eliminates sunlight interference outdoors and ensures detection even if sensors are blocked.

Yes, it is rated for low-amperage TIG welding down to 3 amps.

It uses a CR2450 lithium battery.

Yes, it comes with Miller's True Blue Warranty (typically 3 years on the lens).

The Shade 5.0 side windows provide peripheral vision, increasing your sense of surroundings and safety while the helmet is down.

CATALOGUE & SPEC SHEETS

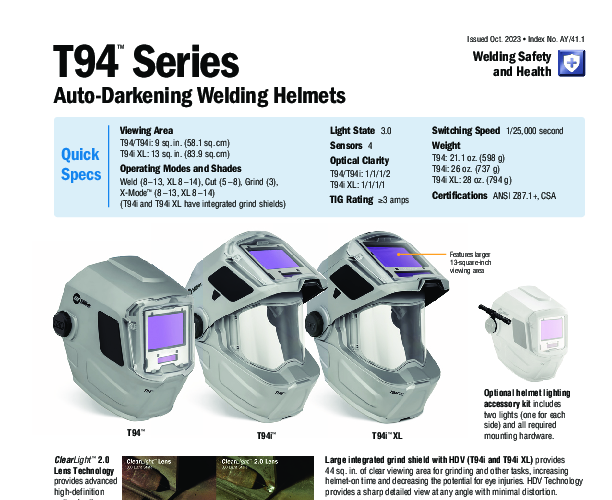

Spec Sheet
