951803 - Miller T94i-R SAR System with C50 Regulator and 100ft Coiled Hose

Packaging: 1 PER EA
$5,425.20/EA $3,342.65/1 PER EA only $3,342.65/EASave 38%

Usually ships within 3-5 business days

OVERVIEW

Stay Cool and Protected with Miller's T94i-R SAR

Take your welding comfort to the next level with the Miller SAR System featuring the T94i-R helmet. If you have ever suffered through a long shift in a hot shop, sweating inside your hood, this system is the game-changer you need. The included C50 Air Regulator is essentially air conditioning for your head, cooling the breathing air flowing into your helmet by up to 50°F. It is not just about comfort; it is about staying fresh, focused, and productive when the heat is on. The regulator sits comfortably on your belt and can be adjusted to hang vertically or horizontally, moving naturally with you so it never gets in the way of your work.

The T94i-R helmet isn't just a shell for the air system; it is a top-tier welding hood in its own right. It features Miller's ClearLight Lens Technology, which gives you a view so crisp and realistic you will wonder how you welded without it. The colors are true, and the puddle definition is unmatched. Plus, with the industry's largest integrated grind shield, you get a massive 180-degree view for prep work without ever having to flip up your helmet. The flip-up mechanism is balanced and ergonomic, reducing neck strain and keeping the weight centered.

One of the standout features is X-Mode. If you are welding outdoors or doing out-of-position work where your sensors might get blocked by the workpiece, X-Mode uses the electromagnetic field of the arc to trigger the lens. No more flashing yourself because a pipe blocked a sensor. The kit comes with a 100-foot coiled air hose that stretches when you need it and retracts when you don't, keeping your workspace clear of tangled lines and reducing trip hazards. The padded belt and shoulder straps distribute the weight evenly, so you can wear this rig all day without back pain. Whether you are burning rod on stainless or running flux-cored wire, this system keeps the fumes out and the cool air in.

Additional Information
Brand:Miller
Grind Function:Yes
Lense Type:ADF (Autoshade)
Shade Range:5-13
Packaging Description:1 of each
Hose Length:100 ft
Hose Type:Coiled
Regulator Type:C50 Cooling Regulator
Viewing Area:9 sq. in.
Lens Technology:ClearLight
Standards:ANSI Z87.1-2015
Air Supply Type:Supplied Air Respirator (SAR)
Operating Modes:Weld, Cut, Grind, X-Mode

INCLUDED

  • T94i-R Helmet Assembly
  • C50 Air Regulator
  • 100 Foot Coiled 3/8 inch Air Hose with 1/4 inch industrial interchange fittings
  • Breathing Tube Assembly
  • Flame-resistant Breathing Tube Cover
  • Padded Belt
  • Flowmeter

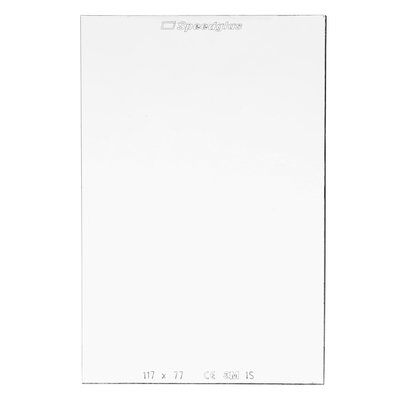

  • 5 Outside Cover Lenses
  • 2 Inside Cover Lenses
  • 2 Side Window Covers
  • Tool Bag

APPLICATIONS

  • Manufacturing and General Fabrication
  • Stainless Steel Welding (Hexavalent Chromium protection)
  • Flux Cored Arc Welding (FCAW)
  • High Amperage Applications
  • Confined spaces (non-IDLH) requiring supplied air
  • Aluminum Welding
  • Galvanized Steel Welding (Zinc Oxide protection)

FAQ

A PAPR (Powered Air Purifying Respirator) uses a battery-operated blower to pull ambient air through a filter carried by the user. This SAR (Supplied Air Respirator) system requires a connection to an external source of Grade D breathing air via an air hose, offering unlimited run time and the ability to cool the air.

No, this package (951803) includes the helmet, regulator, and hose. The source of Grade D breathing air, such as a BreatheAir filtration panel or box, must be purchased separately.

The C50 Air Regulator can cool the incoming air by up to 50°F (28°C) relative to the ambient air temperature, providing significant relief from heat stress.

X-Mode electromagnetically senses the welding arc to trigger the auto-darkening lens. This eliminates interference from sunlight when welding outdoors and ensures the lens darkens even if the optical sensors are blocked by the workpiece.

This package comes with a 100-foot coiled air hose. The coiled design helps manage the hose length automatically, reducing tripping hazards and keeping the workspace tidy.

Yes, the T94i-R features an integrated grind shield with a large 44 square inch viewing area. You can switch to Grind Mode (Shade 3) or flip up the welding lens to use the clear shield underneath.

The T94i-R helmet and lens assembly meet ANSI Z87.1-2015 standards for eye and face protection.

Yes, the helmet features an ergonomic four-point flexible headgear with an oversized pivoting back pad and seamless adjustments for tilt, distance, and tightness.

CATALOGUE & SPEC SHEETS

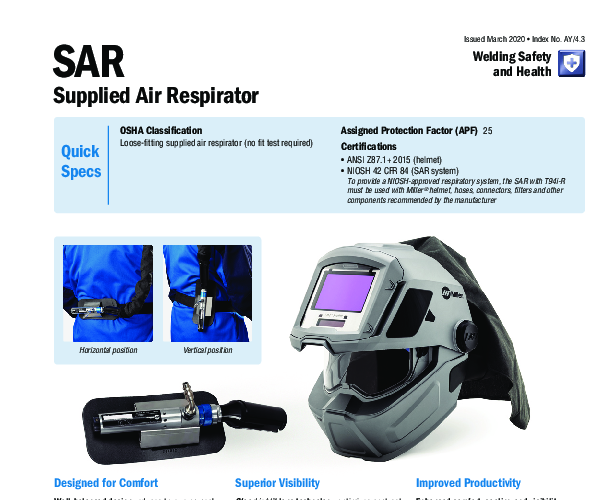

Spec Sheet
