951802 - Miller SAR System with T94i-R Helmet, C50 Regulator & 25ft Coiled Hose

Packaging: 1 PER EA
$4,580.70/EA $2,822.33/1 PER EA only $2,822.33/EASave 38%

Usually ships within 3-5 business days

OVERVIEW

Stay Cool and Weld Longer with the Miller SAR T94i-R System

Heat and fumes are the enemy of every welder. The Miller SAR (Supplied Air Respirator) System with the T94i-R helmet is your ultimate defense, designed to keep you breathing easy and feeling cool even in the toughest shop conditions. This isn't just a helmet; it's a personal climate control system. The included C50 Air Regulator is a game-changer, capable of dropping the temperature of the air flowing over your face by up to 50 degrees Fahrenheit. Imagine welding in the middle of summer or over pre-heated heavy plate and feeling a refreshing cool breeze inside your hood. That comfort translates directly to better focus, cleaner welds, and less fatigue at the end of the day.

Crystal Clear Vision with T94i-R

The T94i-R helmet included in this package is loaded with features to make your life easier. It uses Miller's ClearLight™ Lens Technology, which provides high-definition optics so you can see the puddle exactly as it is, not a muddy green blur. The huge 9-square-inch viewing area gives you a wide view of your workpiece, and the integrated grind shield offers a 180-degree field of view for prep work without ever taking the helmet off. The helmet is perfectly balanced to reduce neck strain, and the premium headgear ensures a secure fit all day long. Plus, with X-Mode, the lens detects the magnetic field of the arc, meaning it darkens reliably even if the sensors are blocked or you are welding outdoors in sunlight.

Freedom of Movement

This kit (951802) comes with a 25-foot coiled air hose. Unlike straight hoses that can drag on the floor and get tangled, the coiled hose expands as you move and retracts when you get closer to your air source, keeping your path clear and reducing tripping hazards. The air connection swivels 360 degrees, so you never have to fight the hose while maneuvering around a large weldment. Whether you are in fabrication, manufacturing, or heavy structural work, the Miller SAR system gives you the protection you need with the comfort you deserve.

Additional Information
Brand:Miller
Lense Type:ADF (Autoshade)
Shade Range:5-13
Grind Function:Yes
Papr:Yes
Packaging Description:1-of-each
Lens Technology:ClearLight™
Viewing Area:9 sq. in.
Operating Modes:Weld, Cut, Grind, X-Mode
Regulator Type:C50 Air Regulator
Hose Type:Coiled
Hose Length:25 ft
Arc Sensors:4
Switching Speed:1/20,000 sec
TIG Rating:Low Amperage

INCLUDED

  • T94i-R™ Helmet Assembly
  • C50 Air Regulator
  • 25 Foot Coiled 3/8 inch ID Air Hose with 1/4 inch industrial interchange fittings
  • Breathing Tube Assembly
  • Flame-resistant Breathing Tube Cover
  • Padded Belt
  • Flowmeter
  • 5 Outside Cover Lenses
  • 2 Inside Cover Lenses
  • 2 Side Window Covers
  • Tool Bag

APPLICATIONS

  • Industrial Manufacturing
  • Heavy Fabrication
  • Stainless Steel Welding (Hexavalent Chromium protection)
  • Flux Cored Arc Welding
  • High Amperage Applications
  • Confined spaces (when used with appropriate Grade D air source)

FAQ

A PAPR (Powered Air Purifying Respirator) uses a battery-operated blower to pull ambient air through a filter on your belt. This SAR (Supplied Air Respirator) system requires a connection to an external source of compressed Grade D breathing air via an air hose. SARs are often used when a higher cooling effect is desired or when specific contaminants cannot be filtered by a PAPR.

No, this package (951802) includes the helmet, regulator, and air hose. The BreatheAir™ filtration panel or box, which is required to filter the compressor air to Grade D breathing standards, is sold separately.

The C50 Air Regulator can cool the air entering the helmet by up to 50°F (28°C) relative to the ambient air temperature, providing significant relief from heat stress.

This specific package comes with a 25-foot coiled air hose. Other packages are available with straight hoses or different lengths.

Yes, the T94i-R features an integrated grind shield with a large clear viewing area and a dedicated Grind Mode (Shade 3), allowing you to grind without lifting the helmet.

The lens offers variable shades: Weld Mode (8-13), Cut Mode (5-8), and Grind Mode (3). It also features X-Mode (8-13) for electromagnetic arc sensing.

You can use a compressor, but the air MUST be filtered through a Grade D filtration system (like the Miller BreatheAir panel) and monitored for Carbon Monoxide before it reaches the respirator to ensure it is safe to breathe.

Yes, the T94i-R has Shade 5.0 side windows that provide peripheral vision, helping you stay aware of your surroundings and reducing the 'tunnel vision' effect.

CATALOGUE & SPEC SHEETS

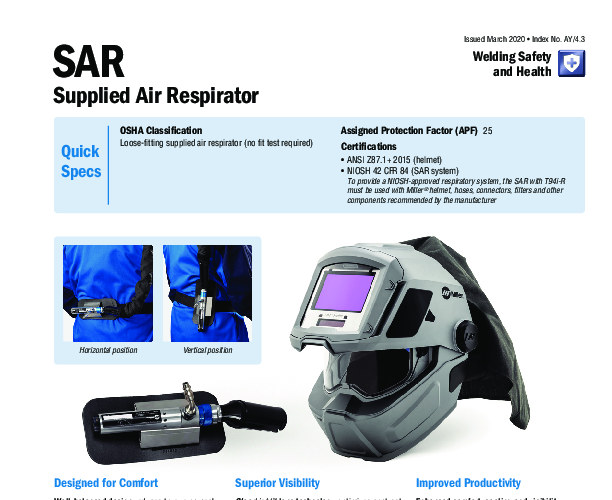

Spec Sheet
