3MH70-0715-1048-4 - 3M Speedglas 9100X Welding Helmet with SideWindows

Packaging: 1 per each
$999.88/ea $624.93/1 per each only $624.93/eaSave 37%

Usually ships within 3-5 business days

OVERVIEW

Experience the Difference with Speedglas 9100X

For the professional welder, your helmet is your most important tool, and the 3M Speedglas 9100X is designed to be the best partner you can have under the hood. If you are tired of tunnel vision and neck strain, the 9100X offers a revelation in comfort and clarity. The first thing you will notice is the view. The 9100X lens offers a large, crystal-clear window to your work, allowing you to see the finest details of the weld puddle. But the real game-changer is the SideWindows. These peripheral filters let you see movement and obstacles to your side without lifting your hood, making you feel less closed-in and safer on busy job sites.

Comfort is where the 9100 series truly shines. 3M has designed a head suspension system that feels like it was custom-molded to your head. It sits lower for better balance and avoids the pressure points that cause headaches after an eight-hour shift. The helmet's breathability is also top-notch; aerodynamic vents direct your exhaled breath out of the helmet, keeping the lens fog-free and the air inside cooler. Whether you are laying down beads in a shop or working in position in the field, this helmet stays comfortable and stable.

Versatility is key for modern welders, and the 9100X delivers. With the push of a button, you can switch between grind mode and weld mode. The lens handles everything from low-amp TIG to heavy MIG and Stick welding with ease. The reliable arc detection means no more accidental flashes, even when your view is partially obstructed. Invest in your eyes and your craft with the helmet that set the standard for premium welding protection.

Additional Information
Brand:3M Speedglas
Shade Range:9-13
Lense Type:ADF (Autoshade)
Grind Function:Yes
Papr:No
Packaging Description:1-per-ea
Viewing Area:2.1 in x 4.2 in (54 x 107 mm)
Battery Life:2500 hours
Number Of Sensors:3
Switching Time:0.1 ms
TIG Rating:> 1 Amp
Standards:ANSI Z87.1-2010, CSA Z94.3
Dark Shades:Shade 5, Shade 8, Shade 9-13
Light State:Shade 3

INCLUDED

  • Speedglas 9100 Helmet Shell
  • Speedglas 9100X Auto-Darkening Filter
  • Head Suspension Assembly
  • Helmet Storage Bag
  • 2 x CR2032 Batteries (Installed)
  • User Manual

APPLICATIONS

  • Stick Welding (SMAW)
  • MIG/MAG Welding (GMAW)
  • TIG Welding (GTAW)
  • Plasma Cutting and Welding
  • Grinding (using Shade 3 Light State)
  • Oxy-Fuel Cutting (using Shade 5 setting)

FAQ

The main difference is the size of the viewing area. The 9100V is the standard size (1.8" x 3.7"), the 9100X is the extra-large size (2.1" x 4.2"), and the 9100XX is the largest (2.8" x 4.2").

Yes, the ADF can be locked in the light state (Shade 3) for grinding applications.

It uses two replaceable 3V lithium batteries (CR2032).

Yes, the helmet comes with cover plates that can be inserted to block the SideWindows if you prefer a traditional tunnel view.

No, this specific SKU (06-0100-20W) is the standard non-air helmet. For respiratory protection, you need the 9100-Air or 9100 FX-Air models.

3M typically offers a 3-year warranty on the auto-darkening filter (lens) against manufacturing defects.

The 9100X filter is equipped with three independent arc sensors to ensure reliable switching.

Yes, the 9100 series features a fully adjustable ergonomic suspension system that allows for customized fit and balance.

CATALOGUE & SPEC SHEETS

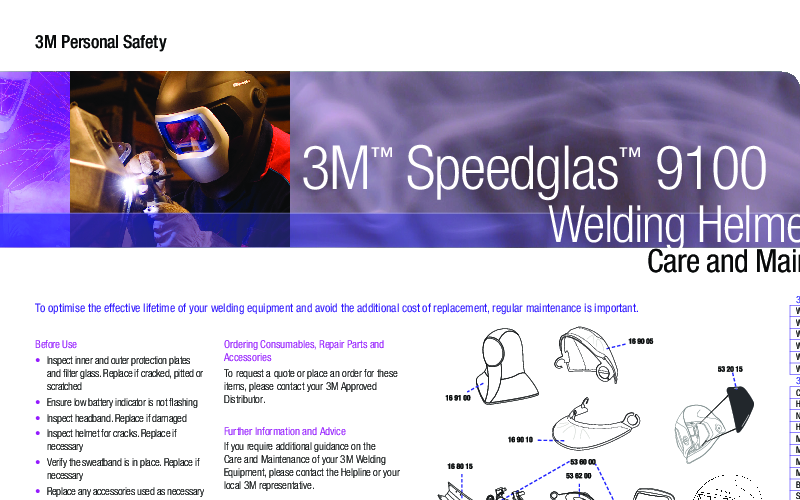

Spec Sheet
