Miller Classic VSi Series Auto-Darkening Welding Helmet with ClearLight

$430.70/ea $265.37/1 of each only $265.37/eaSave 38%

In stock

OVERVIEW

Pro-Level Features for the Value-Minded Welder

When it comes to welding protection, you shouldn't have to compromise on visibility or versatility just to stay within budget. The Miller Classic Series VSi Welding Helmet with ClearLight™ Lens Technology brings professional-grade innovation to the hobbyist, farmer, and light industrial welder. If you are looking for a hood that can handle everything from weekend DIY projects to intricate TIG work, the Classic VSi is designed to exceed expectations.

See the Difference with ClearLight™
Gone are the days of staring through a murky green haze. Miller's ClearLight™ Lens Technology optimizes contrast and clarity in both light and welding states. This means you see natural colors and crisp details, allowing for better puddle control and superior weld quality. Whether you are laying beads on mild steel or performing delicate aluminum TIG work, the high-definition optics help you see exactly what you are doing.

X-Mode™: Weld Anywhere
One of the biggest frustrations with standard auto-darkening helmets is interference from sunlight or blocked sensors. The Classic VSi solves this with X-Mode™. By electromagnetically sensing the welding arc, this helmet knows exactly when to darken, even if you are welding outdoors in bright sunlight or if your hands are blocking the sensors. This feature alone makes the VSi a standout choice for versatile working environments.

Integrated Grind Shield for Maximum Efficiency
The "VSi" stands for Variable Shade with Integrated grind shield. This helmet features a convenient flip-up design. When it's time to grind your welds or prep your metal, simply flip up the front auto-darkening cartridge to reveal a large, clear grinding shield underneath. This keeps your face protected and gives you a wide 180-degree view without the hassle of switching between a welding hood and a face shield. Combined with a lightweight design and comfortable ratchet headgear, the Miller Classic VSi is built for all-day wear and performance.

Additional Information
Brand:Miller
Grind Function:Yes
Lense Type:ADF (Autoshade)
Shade Range:5-13
Packaging Description:1-per-each
Papr:No
Lens Type:ClearLight™ Auto-Darkening
Viewing Area:5.88 sq. in.
Reaction Time:1/20,000 sec
Sensors:3
Power Source:Battery (CR2450) + Solar Assist
Weight:1.41 lbs (0.64 kg)
Warranty:3 Years
Modes:Weld, Cut, Grind, X-Mode
Standards:ANSI Z87.1+, CSA
Grind Function?:YES

INCLUDED

  • Miller Classic Series VSi Helmet (287794)
  • 5 Outside Cover Lenses
  • 2 Inside Cover Lenses
  • Magnifying Lens Holder
  • User Manual

APPLICATIONS

  • Light Industrial Fabrication
  • Farm and Agriculture Repair
  • DIY and Hobbyist Projects
  • Maintenance and Repair Operations (MRO)
  • Outdoor Welding (X-Mode)
  • TIG Welding (Rated down to 5 Amps)

FAQ

X-Mode electromagnetically senses the welding arc to eliminate sunlight interference and continuously detects the arc even if the optical sensors are blocked, making it ideal for outdoor or obstructed welding.

Yes, the Classic VSi features an integrated grinding shield. The auto-darkening lens flips up to reveal a clear shield for grinding, so you don't have to remove the helmet.

This helmet uses one CR2450 lithium battery, which is replaceable. It also features solar assist to extend battery life.

Yes, it is low-amp TIG rated and can detect arcs down to 5 amps, making it suitable for precision TIG applications.

The viewing field of the auto-darkening lens is 5.88 square inches.

ClearLight is Miller's optical technology that optimizes contrast and clarity, providing a brighter light state and more natural colors compared to traditional green-tinted lenses.

The Miller Classic Series VSi helmet is backed by Miller's True Blue 3-year warranty.

Yes, the package includes 5 outside cover lenses and 2 inside cover lenses.

CATALOGUE & SPEC SHEETS

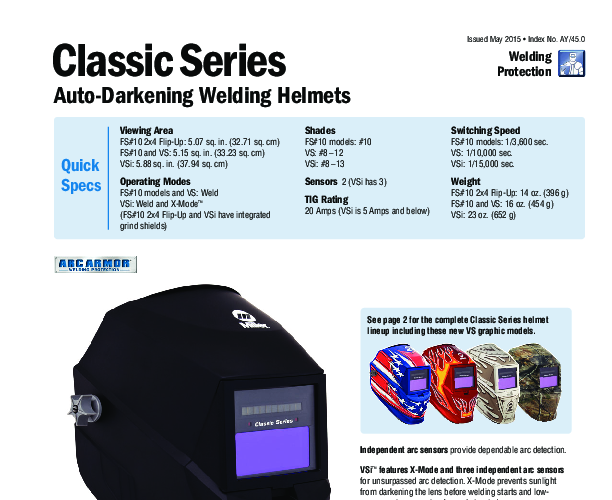

Spec Sheet
