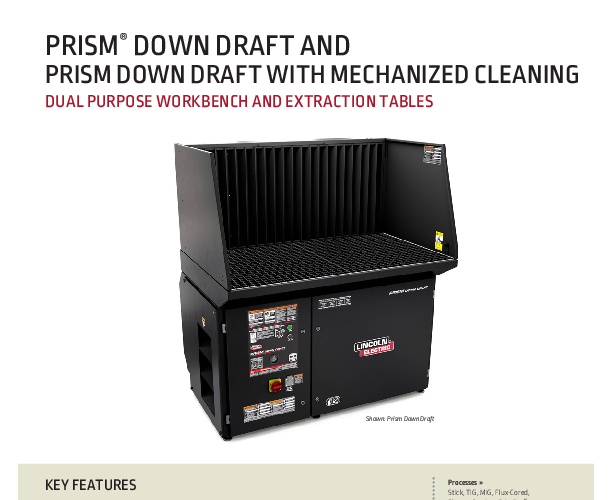

K2751-11 - Lincoln Prism DownFlex 400-MS/A Fume Extraction Table

Weld, Grind, and Cut on One Clean Surface

Stop fighting with fume extraction arms that get in your way. The Lincoln Prism® Down Draft Table (K2751-11) puts the suction right where you work, keeping your breathing zone clear of smoke and dust while giving you a solid steel surface to fabricate on. Whether you are MIG welding mild steel, TIG welding stainless, or grinding down a root pass, this table pulls the fumes away from your face instantly. The large 54" x 30" top handles parts up to 440 lbs, and if you have a longer piece, just fold down the side panels to make room.

Powerful Suction Where You Need It

The Prism table doesn't just rely on gravity; it uses a powerful 1,750 CFM motor to create a strong vacuum. It features a smart airflow split: 80% of the suction comes from the back panel (Backdraft) and 20% from the table surface (Downdraft). This is crucial because hot welding fumes naturally rise. The strong backdraft catches that rising smoke before it reaches your helmet, while the downdraft grabs heavier grinding dust and particles. It's the perfect setup for job shops, maintenance bays, and training centers where flexibility is key.

Self-Cleaning Filters Save You Time

Nobody likes changing filters, and with the K2751-11, you won't have to do it nearly as often. This model features a Mechanized Cleaning system. Simply hook up a shop air line, and the machine will blast compressed air through the filters in reverse. This knocks the dust off the filters and into the collection tray below. This feature keeps your suction strong day after day and saves you money on replacement filters. The MERV 16 filters are top-tier, trapping 95% of the tiny particles that standard filters miss.

Built for the Real World

Lincoln Electric built this table to survive the shop floor. It includes a three-stage spark arrestor to stop hot sparks from burning your filters—a must-have if you are grinding. The controls are simple and right on the front, along with the dust trays which slide out easily for emptying. It even has a gauge that tells you exactly when the filters need attention, so you never have to guess. From plasma cutting (up to 50 amps) to heavy flux-core welding, this station cleans up your air so you can focus on laying the perfect bead.
