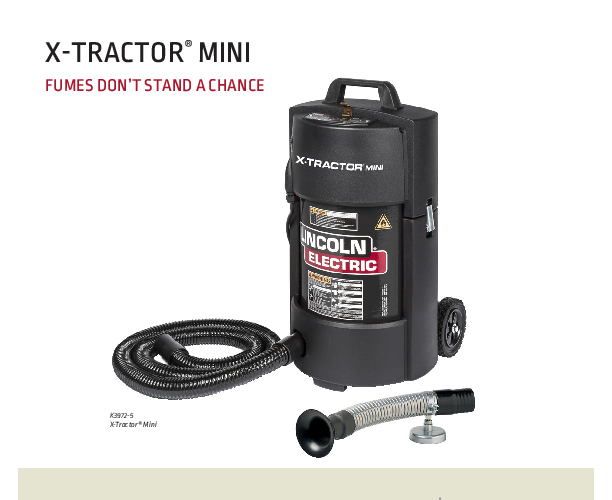

K3972-3 - Lincoln Electric X-Tractor Mini Portable Fume Extractor 120V

Packaging: 1 Per Ea
$4,261.44/EA $3,043.89/1 Per Ea only $3,043.89/EASave 29%

Usually ships within 3-5 business days

OVERVIEW

Breathe Easier with the Lincoln X-Tractor Mini

Welding safety is paramount, and the Lincoln Electric X-Tractor® Mini is your personal guardian against harmful welding fumes. Designed for the welder on the go, this portable fume extractor is lightweight, compact, and incredibly powerful. Whether you are working in a small garage, a maintenance shop, or a confined space on a job site, the X-Tractor Mini ensures that the air you breathe is clean and safe. Weighing in at only 40 pounds, it is easy to carry or roll to wherever the work is, eliminating the hassle of heavy, stationary equipment.

Smart Technology for a Better Workflow
One of the standout features of this unit is its automatic start/stop capability. You don't have to walk back and forth to turn the machine on every time you strike an arc. The built-in current sensor detects when you are welding and turns the extractor on instantly. Once you stop, it runs for a few seconds to clear the hose and then shuts off. This not only saves you time but also keeps your shop quieter and reduces wear on the machine. It’s a set-it-and-forget-it solution that lets you focus entirely on your weld.

Superior Protection
Don't let its small size fool you; the X-Tractor Mini packs a punch when it comes to filtration. It comes equipped with a high-efficiency HEPA filter that captures 99.7% of weld fume particulates, including the microscopic particles that are most dangerous to your health. This makes it an excellent choice for stainless steel welding and other processes that generate hazardous fumes. With the included 8-foot extraction hose, you have the reach you need to position the nozzle right at the source, capturing smoke before it ever reaches your welding helmet. Invest in your long-term health and comfort with the reliable performance of the Lincoln X-Tractor Mini.

Additional Information
Brand:Lincoln Electric
Item:Fume Extractor
Packaging Description:1-per-ea
Input Voltage:120V
Phase:1-Phase
Amperage:12 A
Motor Power:2.4 HP
Air Flow:95-108 CFM
Filter Efficiency:99.7%
Sound Level:<80 dBA
Weight:40 lbs
Warranty:3 Years

INCLUDED

  • X-Tractor® Mini Base Unit
  • Extraction Hose with adapter (8 ft / 2.4 m length, 1-3/4 in / 45 mm I.D.)
  • LongLife-H™ Main Filter
  • HEPA Filter
  • Carbon Brushes (set of 2)
  • Motor Seals

APPLICATIONS

  • Maintenance and Repair (MRO): Ideal for intermittent welding tasks in facility maintenance.
  • Light Fabrication: Perfect for small shops and light-duty manufacturing.
  • Confined Spaces: Compact design allows for use in tanks, vessels, and tight quarters.
  • Construction Sites: Portable enough for contractors to transport between job sites.
  • Stainless Steel Welding: HEPA filtration effectively captures hexavalent chromium fumes.
  • Educational Institutions: Provides safe air quality for welding training booths.

FAQ

The unit features multiple extraction settings, providing an airflow range of 95 to 108 CFM (Cubic Feet Per Minute) depending on the selected speed.

Yes, it comes complete with a LongLife-H main filter and a HEPA filter, providing 99.7% efficiency.

The unit has a current sensor. You lay your welding ground or power cable into the sensor hook, and the machine detects the magnetic field from the welding current to turn on automatically.

The X-Tractor Mini runs on standard 120-volt, single-phase, 60 Hz input power and draws approximately 12 amps.

It is designed for quiet operation, running at a sound level of less than 80 dBA, which is comparable to a standard vacuum cleaner.

No, the X-Tractor Mini is intended for light-duty applications, maintenance, and repair operations. For continuous heavy-duty welding, a larger stationary unit would be recommended.

The unit weighs approximately 40 lbs (18 kg), making it highly portable.

Lincoln Electric provides a 3-year warranty on the X-Tractor Mini.

CATALOGUE & SPEC SHEETS

Spec Sheet
