K3972-5 - Lincoln X-Tractor Mini Portable Fume Extractor with EN 20 Nozzle

Packaging: 1 Per Ea
$4,467.66/EA $3,191.19/1 Per Ea only $3,191.19/EASave 29%

Usually ships within 3-5 business days

OVERVIEW

Breathe Easier with the Lincoln X-Tractor Mini

Protecting your lungs from welding fumes shouldn't mean lugging around heavy, stationary equipment. The Lincoln Electric X-Tractor Mini is the ultimate "grab-and-go" solution for welders who need professional-grade fume extraction in a compact, portable package. Whether you are working in a tight corner, a client's garage, or moving between stations in a busy shop, this lightweight unit (only 40 lbs!) rolls right along with you. It is specifically designed to keep your breathing zone clear, removing 99.7% of weld fume particulates so you can focus on laying the perfect bead without worrying about what you are inhaling.

Smart Technology for a Quieter Shop
One of the standout features of the X-Tractor Mini is its intelligence. You don't have to walk over to the machine to turn it on every time you strike an arc. Thanks to its built-in current sensor, the unit detects when you start welding and automatically powers up. When you stop, it runs for a few seconds to clear the line and then shuts off. This not only saves electricity but keeps your shop significantly quieter—operating at under 80 dBA—so you can communicate easily with coworkers. It's like having a dedicated safety assistant that knows exactly when you are working.

Complete Ready-to-Run Package
This K3972-5 package comes with everything you need to get started immediately. It includes the powerful base unit, an 8-foot extraction hose, and the versatile EN 20 nozzle with a magnetic base, which stays firmly in place on your workpiece. The multi-stage filtration system, including a HEPA filter, ensures that the air pumped back into your workspace is clean. Ideal for light-duty stick, TIG, and MIG welding, the X-Tractor Mini is an investment in your health and long-term career safety.

Additional Information
Brand:Lincoln Electric
Item:Fume Extractor
Packaging Description:1-of-each
Input Voltage:120V
Phase:1-Phase
Amperage:12 A
Motor Power:2.4 HP
Air Flow:95-108 CFM
Sound Level:<80 dBA
Filtration Efficiency:99.7% (HEPA)
Weight:40 lbs
Dimensions:29 in x 15.6 in x 16.8 in

INCLUDED

  • X-Tractor Mini Fume Extractor Unit
  • Extraction Hose with Adapter (8 ft / 2.4 m length, 1-3/4 in / 45 mm I.D.)
  • EN 20 Extraction Nozzle with Magnetic Base
  • LongLife-H Main Filter (KP2390-1)
  • HEPA Filter (KP2390-4)
  • Pre-Filter (KP2390-3)
  • Carbon Brushes (set of 2) and Motor Seals
  • Filter One-Pak (KP2390-5)

APPLICATIONS

  • Industrial Maintenance and Repair (MRO)
  • Light Duty Fabrication
  • Contractor and Mobile Welding
  • Confined Space Welding
  • Automotive Repair
  • Intermittent Stick, TIG, and MIG Welding
  • Educational and Training Facilities

FAQ

The unit provides an airflow range of 95-108 CFM (Cubic Feet Per Minute) using its powerful 2.4 HP motor.

Yes, it features a Current Sensor that automatically starts the unit when it detects welding current and stops it shortly after the arc is extinguished.

It uses a multi-stage system including a Pre-Filter (KP2390-3), a LongLife-H main filter (KP2390-1), and a HEPA filter (KP2390-4) for 99.7% efficiency.

The unit is designed for quiet operation, running at a sound level of less than 80 dBA.

The X-Tractor Mini runs on standard 120-volt, single-phase input power and draws approximately 12 Amps.

It is very portable, weighing approximately 40 lbs and featuring an integrated handle and wheels for easy movement around the shop.

The package includes the extractor unit, 8ft hose, EN 20 nozzle with magnetic base, a full set of filters (Pre, Main, HEPA), and a spare set of carbon brushes.

No, the X-Tractor Mini is intended for light-duty, intermittent welding applications, maintenance, and repair operations.

CATALOGUE & SPEC SHEETS

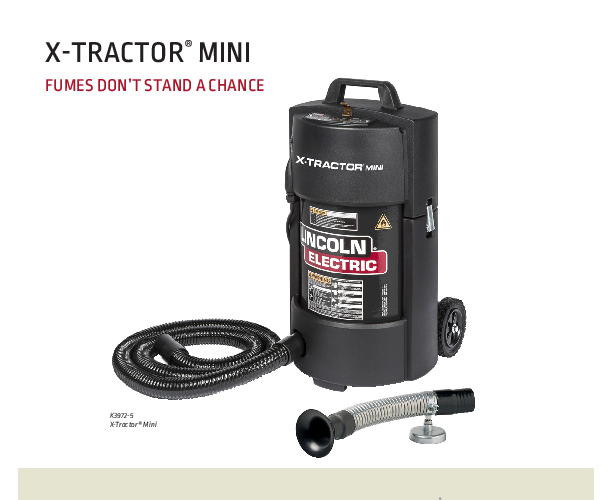

Spec Sheet
